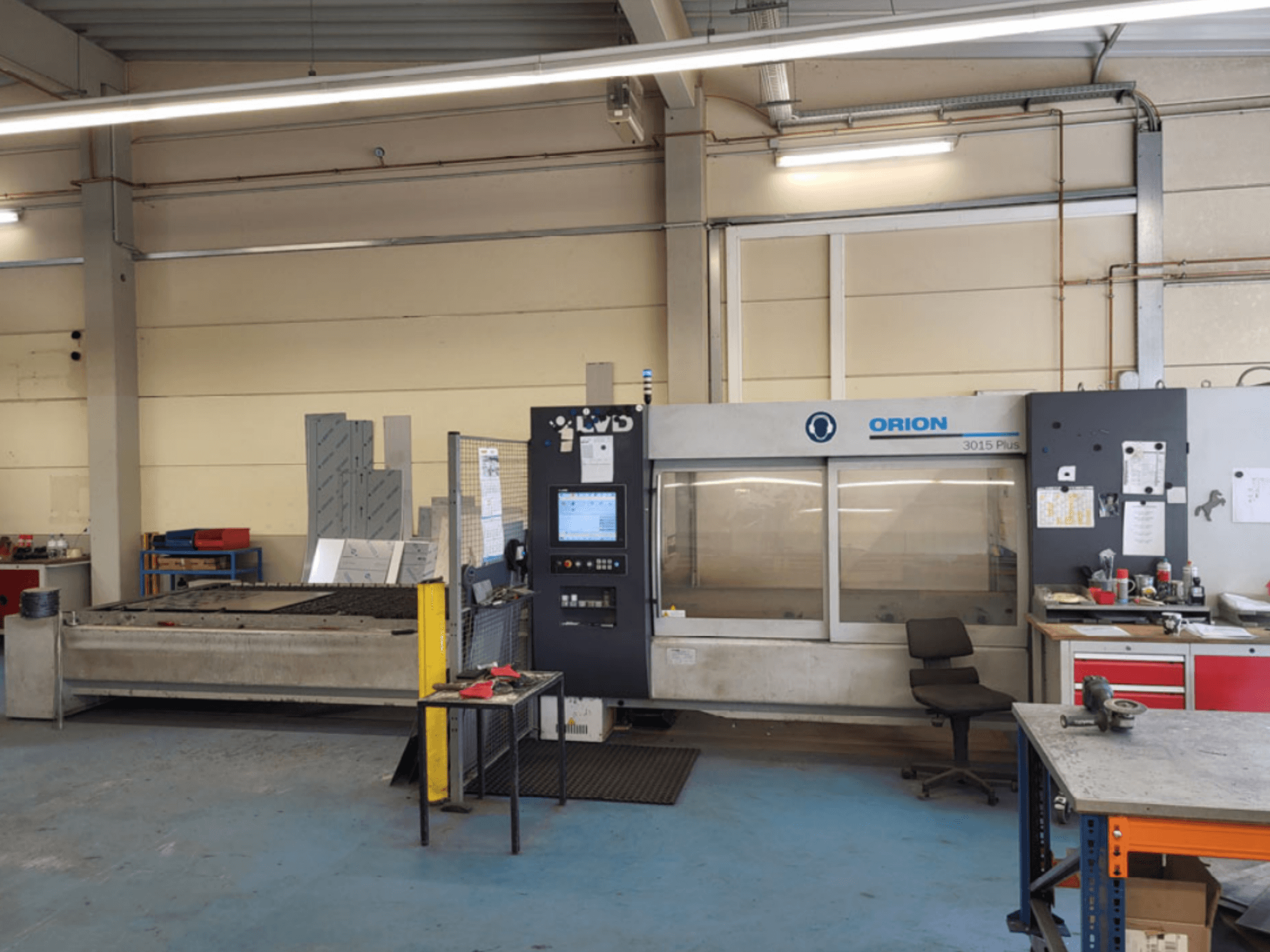

LVD - Orion 3015 PlusDE-CUT-LVD-2014-00002

• Max sheet size: 3000 × 1500 mm

• Max sheet weight: 570 kg

• Max positioning speed:

  • X/Y axes: 100 m/min

  • Z-axis: 15 m/min

• Repeatability: ±0.025 mm

• Positioning accuracy: ±0.05 mm/m

• Laser:

  • Type: Fanuc HF-excited CO₂

  • Power: 2500 W (±2%)

  • Power range: 100–2500 W

  • Output stability: ±1%

  • Wavelength: 10.6 µm

  • Pulse frequency: 5 Hz–33 kHz

  • Laser gas consumption: 10 l/h

  • Cooling: Closed-loop water system

• Material cutting capacity (2500 W):

  • Steel: 16 mm

  • Stainless steel (N₂): 10 mm

  • Aluminum: 6 mm

Additional equipment

• Automatic loading/unloading system:

  • Max sheet size: 3050 × 1525 × 12 mm

  • Max stack weight: 2500 kg

  • Max stack height: 100 mm

  • Footprint (including auto loader): 8900 × 6600 × 3700 mm

• Compact tower:

  • Max sheet size: 3050 × 1525 × 16 mm (or 2550 × 1525 × 20 mm)

  • Min sheet size: 1000 × 1000 mm

  • Max pallet weight: 3000 kg

  • Max pallet height: 240 mm (including pallet)

  • Footprint: 8850 × 7200 mm

  • Tower height options:

    • 4 pallets: 4100 mm

    • 6 pallets: 4940 mm

    • 10 pallets: 6620 mm

Note: “Min sheet size: 1000 × 1000 m” in the source appears to be a typo; listed here as mm.
