JUNKER - Quickpoint 5002/20DE-GRI-JUN-2000-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- JUNKER Quickpoint 5002/20 Cylindrical Grinding Machine

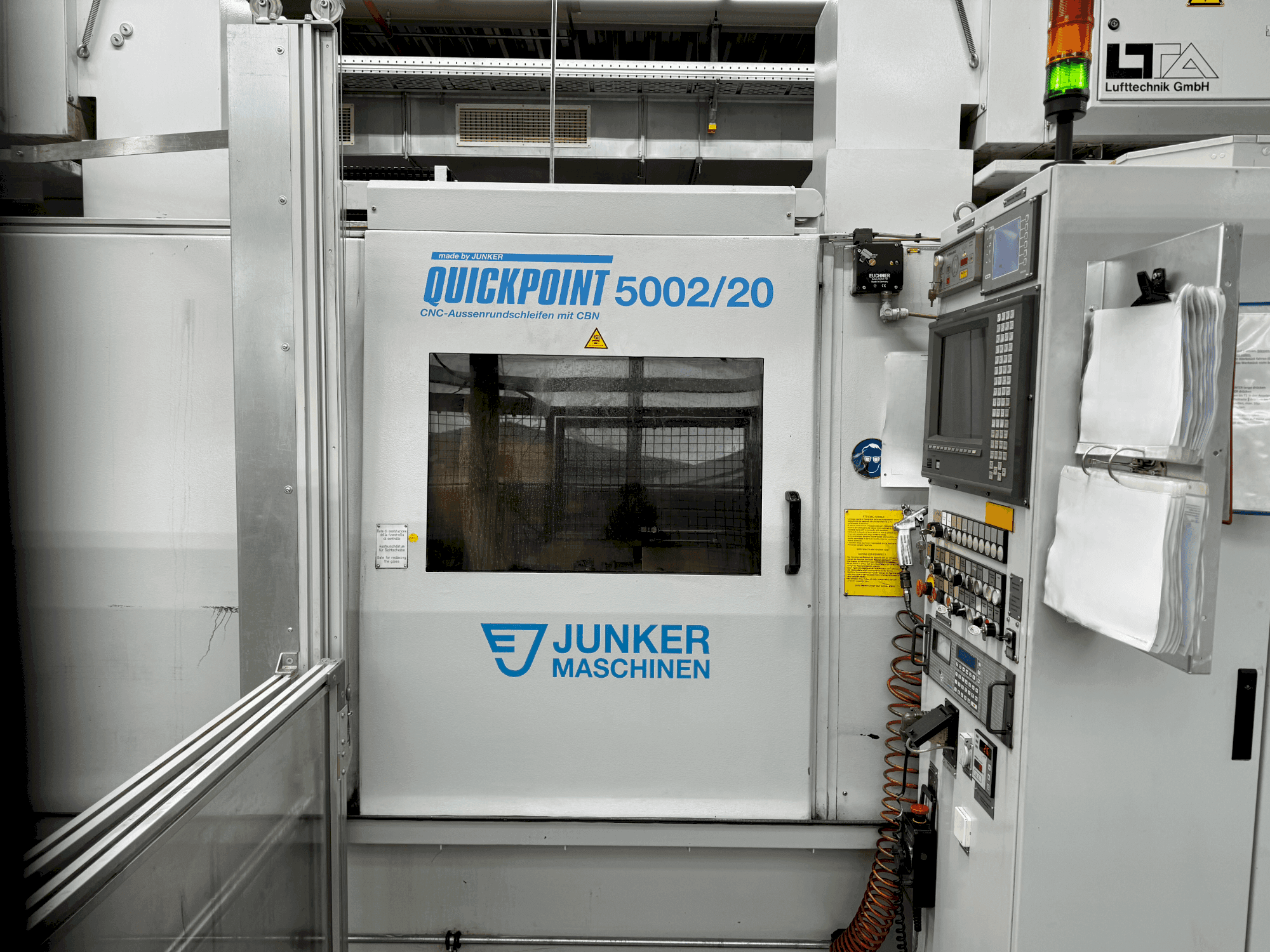

This JUNKER Quickpoint 5002/20 Cylindrical Grinding Machine was manufactured in the year 2000 in Germany. It has a grinding diameter of 280 mm and a grinding length of 900 mm. Equipped with a travel z-axis of 900 mm it can handle a max. workpiece weight of 30 kg. As control unit it has a FANUC 15-TB control. It comes with 2x extraction units (made by LTA) and an oil filter system (built in-house). The machine is currently used as part of a robot line and will be sold because of replacement by a new machine. See photo and video gallery for more impressions.
Übersicht
- Hersteller: JUNKER
- jahr: 2000
- MODELL: Quickpoint 5002/20
- anwendungstyp: Schleifen
- Standort: Deutschland
- maschinentyp: Rundschleifmaschine
- Marke Steuergerät: FANUC
Technische Daten - JUNKER Quickpoint 5002/20
Steuerung
- Steuerungsmarke: FANUC
- Steuerungsmodell: 15-TB
Maße
- Maschinentiefe: 5000 mm
- Maschinenhöhe: 2500 mm
- Maschinengewicht: 15000 kg
Bewegung
- Anzahl der Achsen: 3
- Z-Achsverfahrweg: 900 mm
Technische Spezifikation
- Max. Werkstückdurchmesser: 250 mm
Zusätzliche Informationen
Additional equipment
- 2x extraction units (made by LTA)
- Oil filter system largely self-built in collecting tray, system with magnetic separator (probably only conditionally reusable, but currently functional), currently built in a cold split design with internal cooler and external condenser
- Replacement grinding wheels can be handed over if still available at dismantling date
- Further accessories, such as tips, driver systems, measuring probes etc. would also be available and could be given away
Machine Benefits
Qualitative Machine Benefits
- Machine always very well maintained
- Solid and reliable production line
- Quickpoint machines can be used for a wide range of applications, and at the same time boast impressive productivity
- Versatility and excellent workpiece quality
- 3 axes (x, z and b)
Technical Machine Benefits
- Loading system: manual
- Workhead: fixed
- Workpiece spindle // dimension: 100 x 400 mm, permanent grease lubrication, bearing protection by compressed air, drive by servo-motos (c-axis), cone and special fixture mk4 or junker standard collar ⌀ 75mm
- Tailstock // manually via chain wheel, chucking pressure adjustable via hydraulic
- Tailstock sleeve // ⌀ 100 x 430 mm, mk 4 resp. Junker standard collar ⌀ 75 mm
- Grinding table // z-axis (cnc-controlled)
- Wheelhead // infeed: x-axis (cnc-controlled), horizontal: -6° to + 15°, b-axis (cnc-controlled), vertical: -0. 5°, 0° and +0. 5° (op swivelling)
- Grinding spindle // ⌀ 180 x 400 mm, flange: ⌀ 190 mm, standard collar: ⌀ 127 mm, driving power: 24 kw
- Grinding wheel // borazon (cbn) or diamond, diameter: ⌀ 400 mm, bore: ⌀ 127 mm, coating width: 5mm
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
