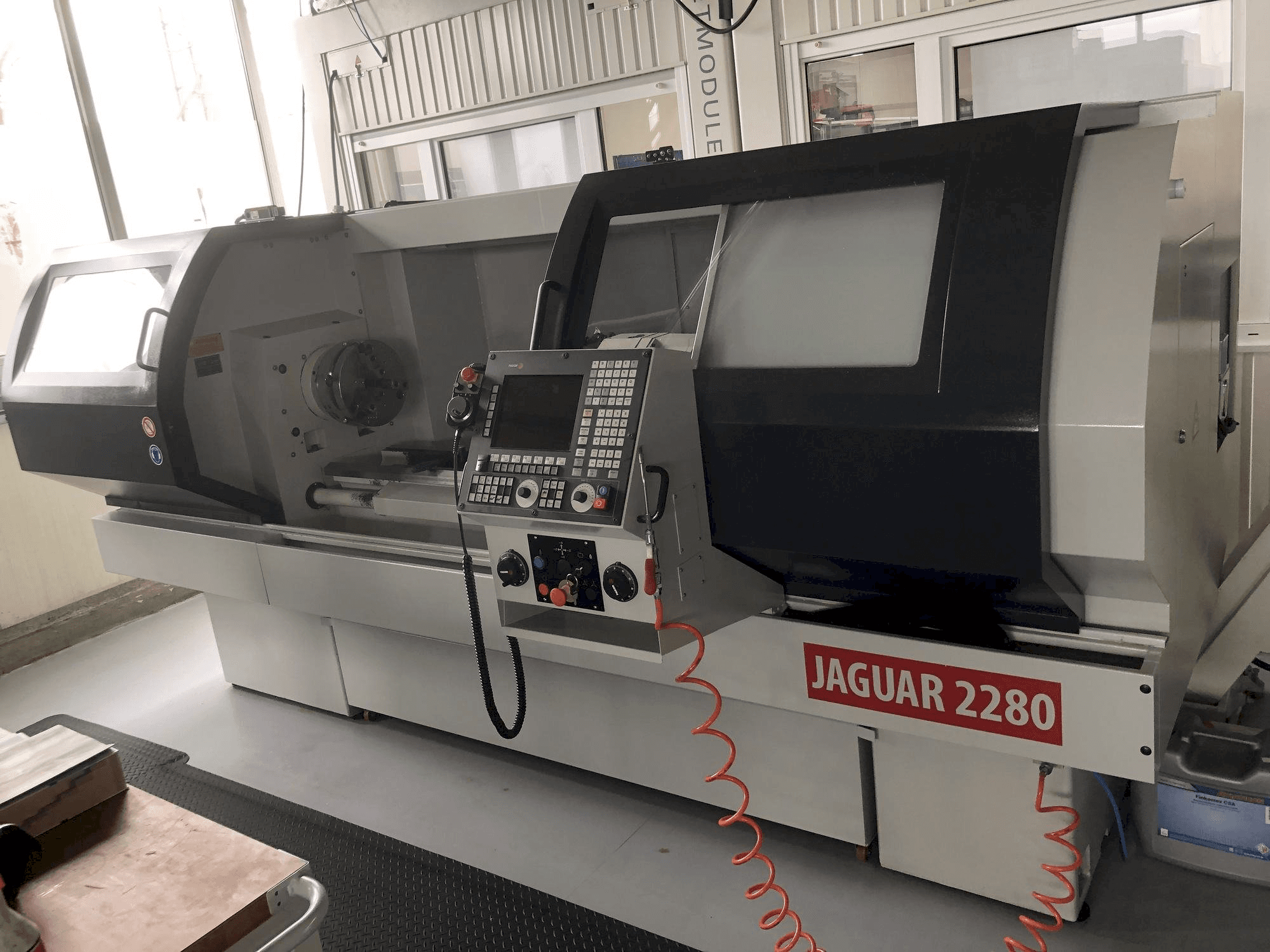

JESSEY - JAGUAR 2280DE-TUR-JES-2016-00001

Additional equipment

• 8 fold tool turret vdi 40, btp 80 - electromechanical; boring bar 40 mm and turning steel height 25 mm
• hinged chip conveyor with lateral ejection and chip carriage
• fixed bezel 25-145 mm
• fixed steady rest 165 - 385 mm
• schunk rota-s plus 315-92/3
• 3 jaw wedge bar chuck 315 mm
• 92 mm passage with direct spindle mounting with camlock fastening c8 din 55029/c8 with base jaws and hard reversing top jaws
• 1 SET OF ALIGNMENT ELEMENTS

Machine Benefits

Qualitative Machine Benefits

• Chip tray can be pulled out to the front for easy removal of the chips
• Ergonomic control panel with 11'' monitor that can be moved along the entire working lenght, keyboard and 2 electronic handwheels for x and z axis
• Powerful machine tailstock with 75 mm quill, 200 mm quill stroke and quick clamping (mk5)
• Full safety machine enclosure with 2 large sliding doors
• 2 viewing windows with safety glass according to din en 12415
• Powerful coolant system with 1. 5 bar
• Led workspace lighting
• Machine according to ce

Technical Machine Benefits

• Main machine data tip height 280 mm circulation over 560 mm
• Spindle torque 1490 nm
• Machine accuracy according to din 8605
• Control including din-iso programming
• 3- speed manual transmission with electronic gear shifting
• Multifix quick change toolholder system - size mc with 4 inserts
• Prismatic machine guide and precision recirculating ball spindle
• Finely ground guideways hardened to 5o rockwell (hrc) with a large bed widht fro 345 mm
• Removable bed bridge
• Automatic central lubrication system for guideways and ball screws
