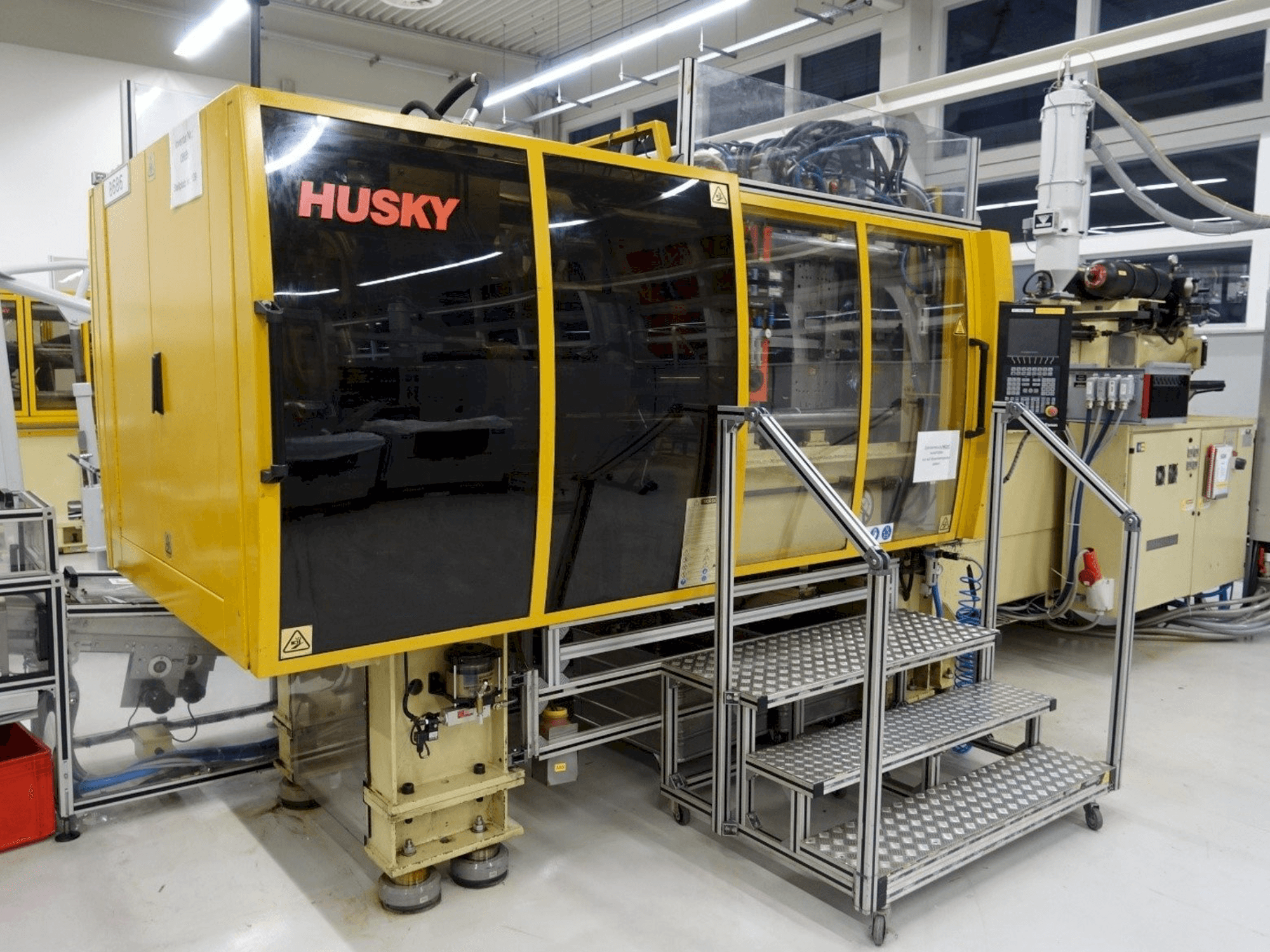

Husky - GL225 RS70/60DE-INJ-HUS-1997-00004

Additional equipment

• Spare Parts (additional cost)
• 2 nozzle closure cylinder
• 1 nozzle closure shut-off piston
• 2 orifice plates - 2 tie bars
• 8 Bolt nozzle closure (bracket)
• 7 Snap ring small & large
• 2 Hydraulic oil filter - 1 hydraulic block injection unit
• 2 buckets of grease for central lubrication
• 1 Foot pump central lubrication
• 1 tie bar runner for stack molds

Machine Benefits

Qualitative Machine Benefits

• Design for stack mold carrier
• Mold cooling package with cast steel components
• Air function - up to 4 air valves per platen
• Pneumatic valve gate
• Accumulator assisted injection
• Hydraulic shut-off nozzle
• Ring check valve
• Machine has been very well maintained during lifetime.

Technical Machine Benefits

• Platen distance max 1475 mm
• Center height 1830 mm (incl. Additional increase of 200mm)
• Screw - l/d 23,6 : 1
• Screw stroke 300 mm
• Standard screw drive speed (rpm) 318**- *torque (nm) 901 - plasticizing capacity (g/s ps) 46
• High torque screw drive speed (rpm) 183** - torque (nm) 1567 - plasticizing capacity * (g/s ps) 27
• Worm drive for high speed speed (rpm) 443** - torque (nm) 647 - plasticizing capacity * (g/s ps) 64
• Mold mounting and ejector drilling patterns optionally according to euromap or spi
• Hole patterns for mte robot installation
• Machine-mounted stack mold carrier
