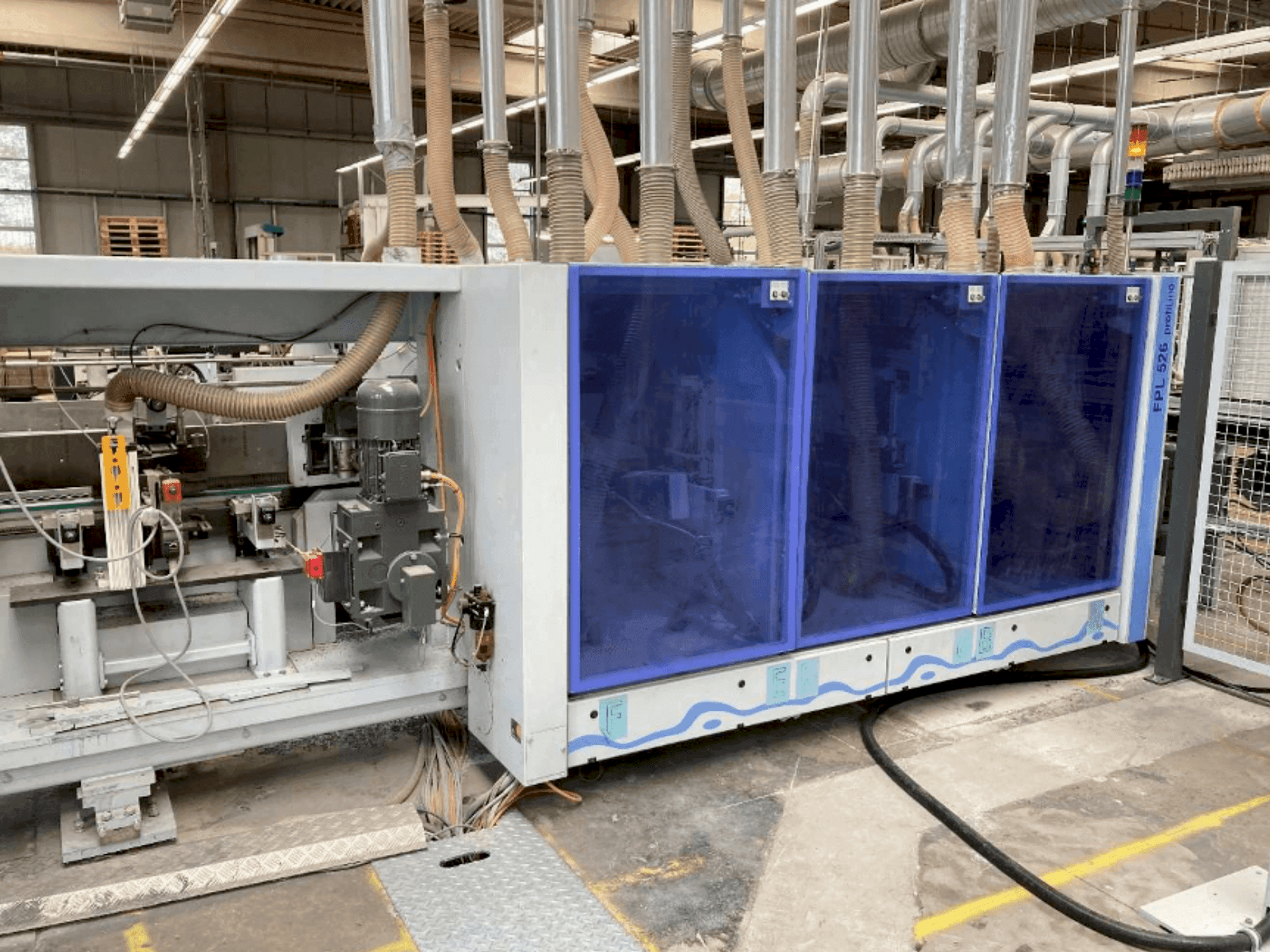

This profile bending machine was manufactured in 2011. It features an automatic transport system for semi-finished LVT panels, with processing capabilities ranging from 500 mm to 2000 mm in length and 140 mm to 600 mm in width. The system includes longitudinal and cross machines, each equipped with 6 milling motors, ensuring precise profiling. If you are looking to get high-quality profiling capabilities, consider the HOMAG PROFI FPL 525/6/04/PW/V LVT machine we have for sale. Contact us for further details.
Übersicht
- Hersteller: HOMAG
- jahr: 2011
- MODELL: PROFI FPL 525/6/04/PW/V LVT Profiling System
- anwendungstyp: Komplettproduktion
- Standort: Deutschland
- maschinentyp: Komplette Produktionslinie (Holz)
Zusätzliche Informationen
Machine Benefits
Qualitative Machine Benefits
- Electrical connected load (installed): approx. 285 kw
- Required dust extraction capacity: approx. 36000 m3/h
- Compressed air consumption: approx. 3000 nl/min
- Operating pressure: min. 6 bar
- The system efficiently loads semi-finished planks via an automatic transport system, separates, and conveys them for longitudinal and transverse milling operations.
- Post-milling, panels undergo cleaning, visual inspection, and packaging into parcels.
- The process includes automatic film wrapping and stacking onto euro pallets, ensuring streamlined production flow.
Technical Machine Benefits
- Mains voltage: 400 v / 50 hz, 3 phases with loadable neutral conductor
- Operating voltage: 400 v / 50 hz
- Control voltage: 230 v / 50 hz + 24 v / dc
- Electronic standard: din, din en, din iso
- Material: lvt
- Formats: length: 500 mm – 2,000 mm, width: 140 mm – 600 mm, thickness: 4 mm – 8 mm, format 1: 1,200 mm x 140 mm, format 2: 1,500 mm x 250 mm, format 3: 600 mm x 300 mm
- Feed speeds: longitudinal machine: max. 130 m/min, cross machine: max. 40 m/min
- Cam distance: 300 mm (fixed)
- Cam height: 2. 8 mm extended
- Raw panels: raw panel length: 600 – 2,000 mm, raw panel width: 140 – 600 mm, raw panel thickness: 4 – 8 mm
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
