HOLZMA - HPP 82/43DE-SAW-HOL-2001-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Holzbearbeitung
- ➤ Used HOLZMA HPP 82/43 - Saw For Sale | gindumac.com

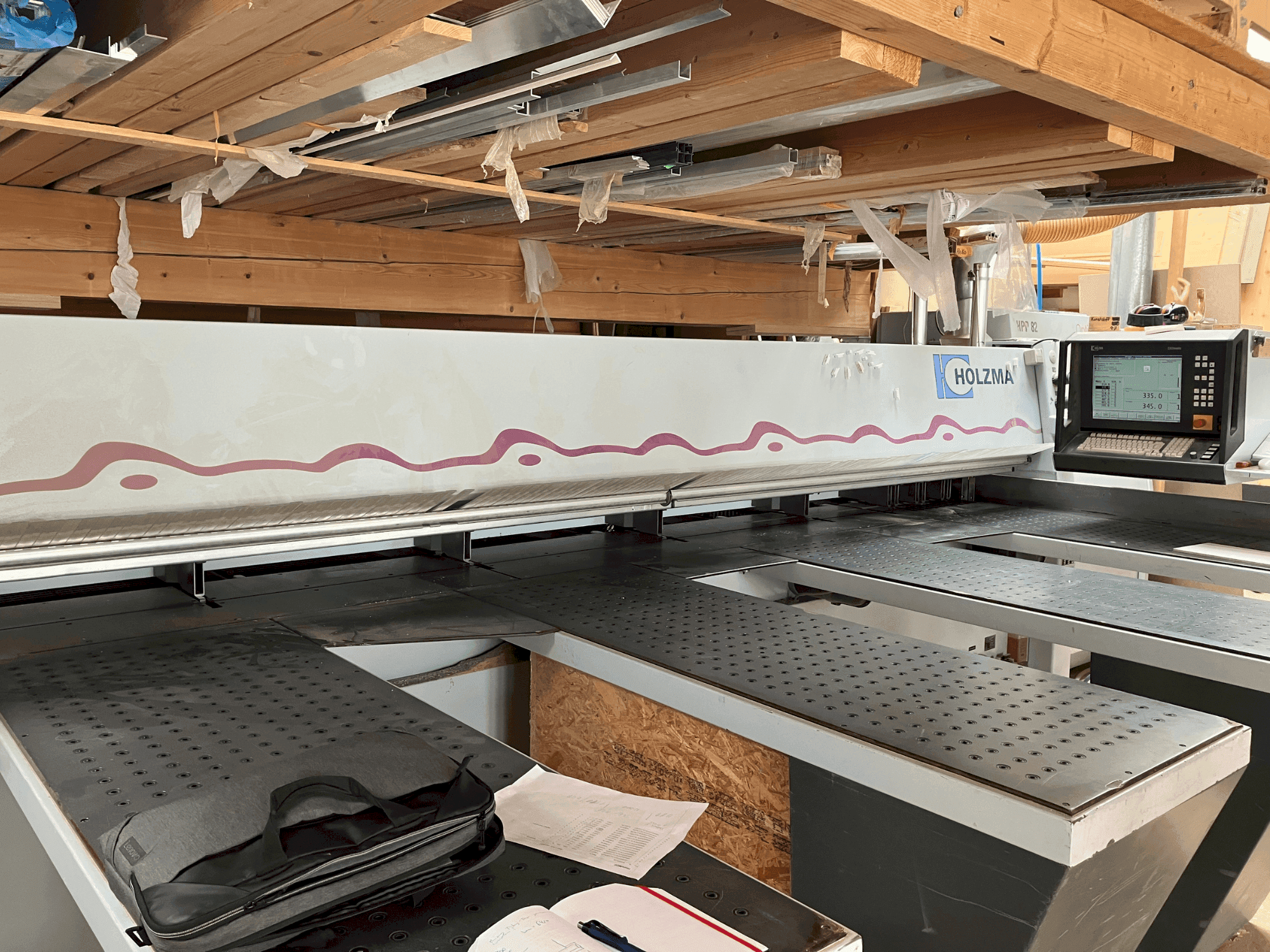

This HOLZMA HPP 82/43 panel saw was manufactured in 2001. It features a main saw motor of 13.5 kW and a scoring saw motor of 2.2 kW, ensuring robust performance. The machine boasts a cutting length of 4300 mm and a cutting width of 4250 mm, with a saw blade diameter of 380 mm. It has been operational for only 5,466 hours. Consider the opportunity to buy this HOLZMA HPP 82/43 panel saw. Contact us for more information.
Übersicht
- Hersteller: HOLZMA
- jahr: 2001
- MODELL: HPP 82/43
- Produktionsstunden: 5466
- anwendungstyp: Sägen
- Standort: Deutschland
- maschinentyp: Plattensäge
Zusätzliche Informationen
Additional equipment
- 7 Collets: First three are two-fingered, all others are single-fingered
- 2 Additional Two-Fingered Collets Possible
- 1 Additional Single-Fingered Collet Possible
Machine Benefits
Technical Machine Benefits
- Ce-tested // gs-tested fph // dust-tested
- Collet opening max. : 100 mm
- Cutting length: 4300 mm
- Cutting width: 4250 mm
- Air cushion table: 1 table 2160 x 650 mm and 3 tables 1760 x 650 mm with blower
- Saw carriage feed forward speed: 5 - 125 m/min // saw carriage feed reverse speed: 125 m/min
- Program slide speed forward/reverse max. : 80 m/min
- Saw blade diameter: 380 mm // saw blade projection: 95 mm
- Main saw blade: hm 380 x 48 x 60
- Scoring saw blade: hm 180 x 48 - 58 x 45
Extra Information
Media Compressed Air: 6 bar Operating Voltage: 400 V / 50 Hz Operating Temperature Min.: +5 °C Operating Temperature Max.: +35 °C Minimum Extraction Speed at Extraction Nozzle: Approx. 26 m/s Extraction Connection for Chip Channel: 1 x 200 mm Extraction Connection for Pressure Beam: 1 x 150 mm
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
