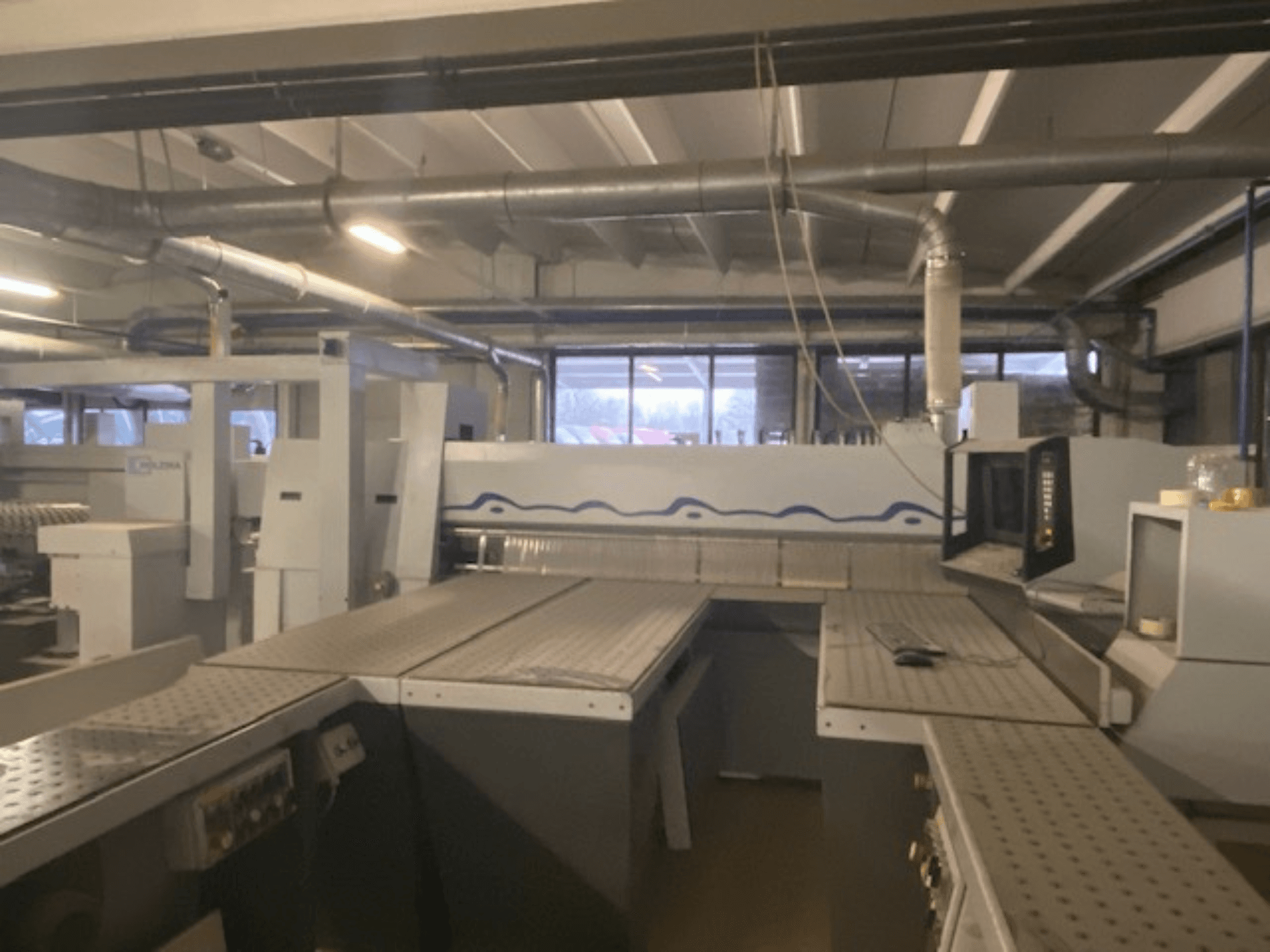

HOLZMA - HCL 11/56/22SI-SAW-HOL-2001-00001

• Total connected load: 88 kW

• Voltage: 400 V / 50 Hz / 3~ + N

• Current: 159–160 A

• Control voltage: 24 V

• Cutting capacities:

  • Maximum panel size: 5600 × 2200 mm

  • Minimum panel size: 2440 × 1220 mm

  • Cutting length (longitudinal saw): 5600 mm

  • Cross saw: 2200 mm

  • Saw blade projection: 125 mm

• Pneumatic and extraction requirements:

  • Required air pressure: 6 bar

  • Air consumption: 250–300 l/min

  • Dust extraction volume: 10,000 m³/h

  • Air speed: 26 m/s

• Installation / floor requirements:

  • Concrete quality: B25

  • Minimum concrete thickness: 200 mm

  • Floor level tolerance: ±10 mm

  • Working height: approx. 485–520 mm

  • Extraction connections: Ø 320 mm (main) + Ø 150 mm + Ø 80 mm

• Operating hours (from counters):

  • Counter 1: 23,610.8 h

  • Counter 2: 22,539.7 h

Additional equipment

• Lift table:

  • Maximum panel size: 5600 × 2200 mm

  • Stack height without pit: 550 mm

  • Stack height with pit: 1430 mm

  • Maximum lifting height: 1430 mm

  • Lifting capacity: 10 t

• Turning station:

  • Dimensions: 1250 × 1250 mm
