HAUSER - KELLENBERGER H55-400CH-GRI-HAU-2019-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- ➤ Used HAUSER KELLENBERGER H55-400 For Sale | gindumac.com

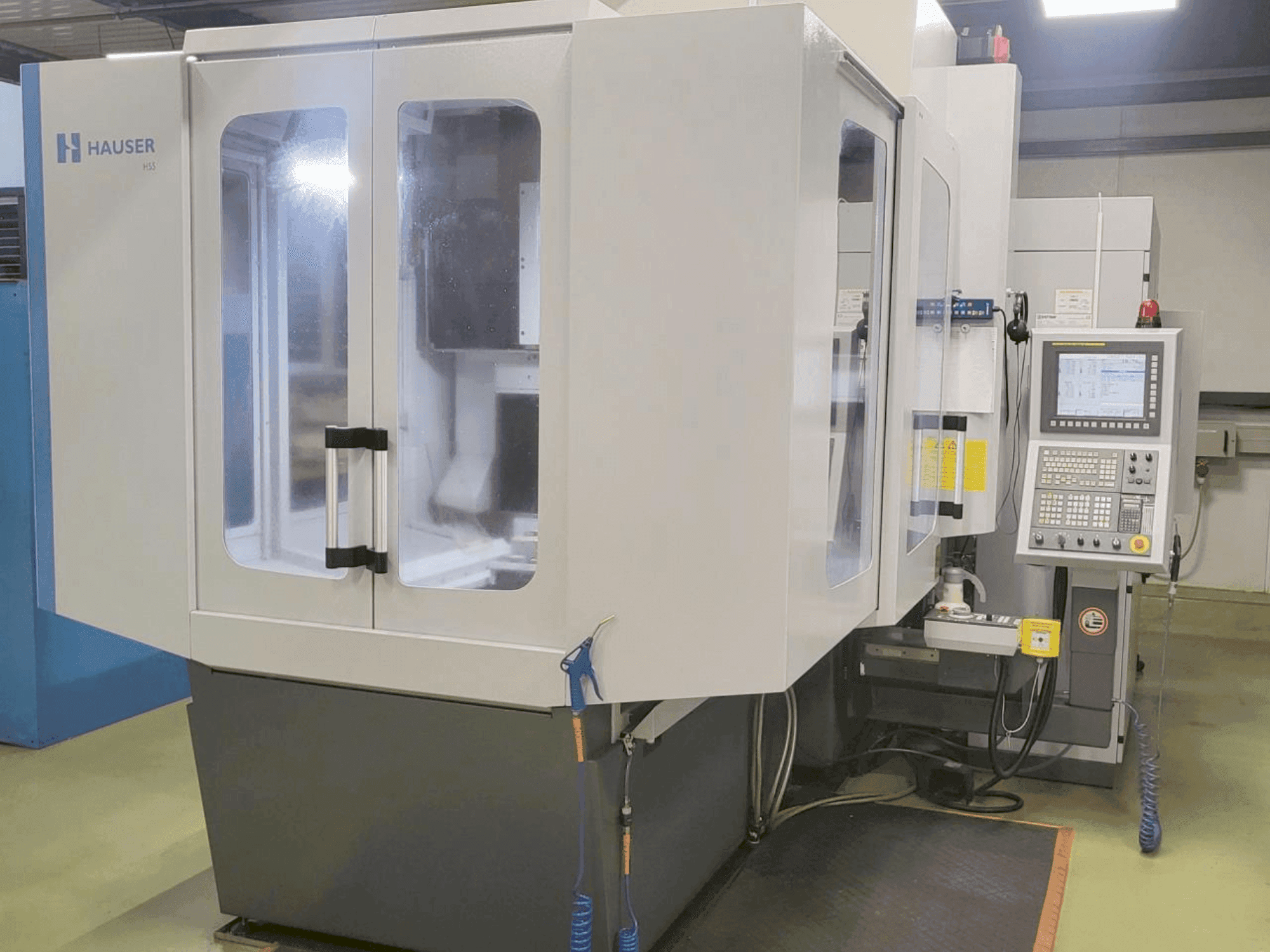

This 5-axis HAUSER KELLENBERGER H55-400 was manufactured in 2019, designed for precision internal grinding. Ideal for complex geometries, it offers advanced control for high accuracy. Consider the opportunity to buy this HAUSER KELLENBERGER H55-400 internal grinding machine. Contact us for more information.
Übersicht
- Hersteller: HAUSER
- jahr: 2019
- MODELL: KELLENBERGER H55-400
- anwendungstyp: Schleifen
- Standort: Schweiz
- maschinentyp: Innenrundschleifmaschine
- Marke Steuergerät: FANUC
Technische Daten - HAUSER KELLENBERGER H55-400
Steuerung
- Steuerungsmarke: FANUC
- Steuerungsmodell: §==I
Bewegung
- Anzahl der Achsen: 5
Zusätzliche Informationen
Machine Benefits
Technical Machine Benefits
- Grinding spindle (z-c-u):spindle sleeve diameter: 125 mm
- Standard speed ranges (40s motor): continuously adjustable, programmable 4000–40000 rpm
Extra Information
Workpiece Machine Capacity: X, Y axis travel: 1300 x 800 mm Vertical travel of grinding head (W axis): 635 mm Clearance between table and U-axis grinding motor mounting plate: 905 mm Clearance between table and HSK25 tool holder (70S grinding motor nose): 0–710 mm Distance between columns: 970 mm Grinding Diameters (Planetary Grinding Mode): With Ø50mm wheel (70S motor): Automatic mode (central U-axis position): max. 144 mm Semi-automatic mode (offset U-axis position): max. 234 mm With intermediate plate: max. 360 mm With Ø100mm wheel (40S motor): Automatic mode (central U-axis position): max. 194 mm Semi-automatic mode (offset U-axis position): max. 284 mm With intermediate plate: max. 360 mm Taper grinding (option): Up to 120° (divergent/convergent) Table Usable surface: 1440 x 860 mm Movement Feed Rates: X/Y axis slides: Working feed: 0–2000 mm/min Rapid traverse: 4000 mm/min W axis (vertical slide): Working feed: 0–2000 mm/min Rapid traverse: 4000 mm/min
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
