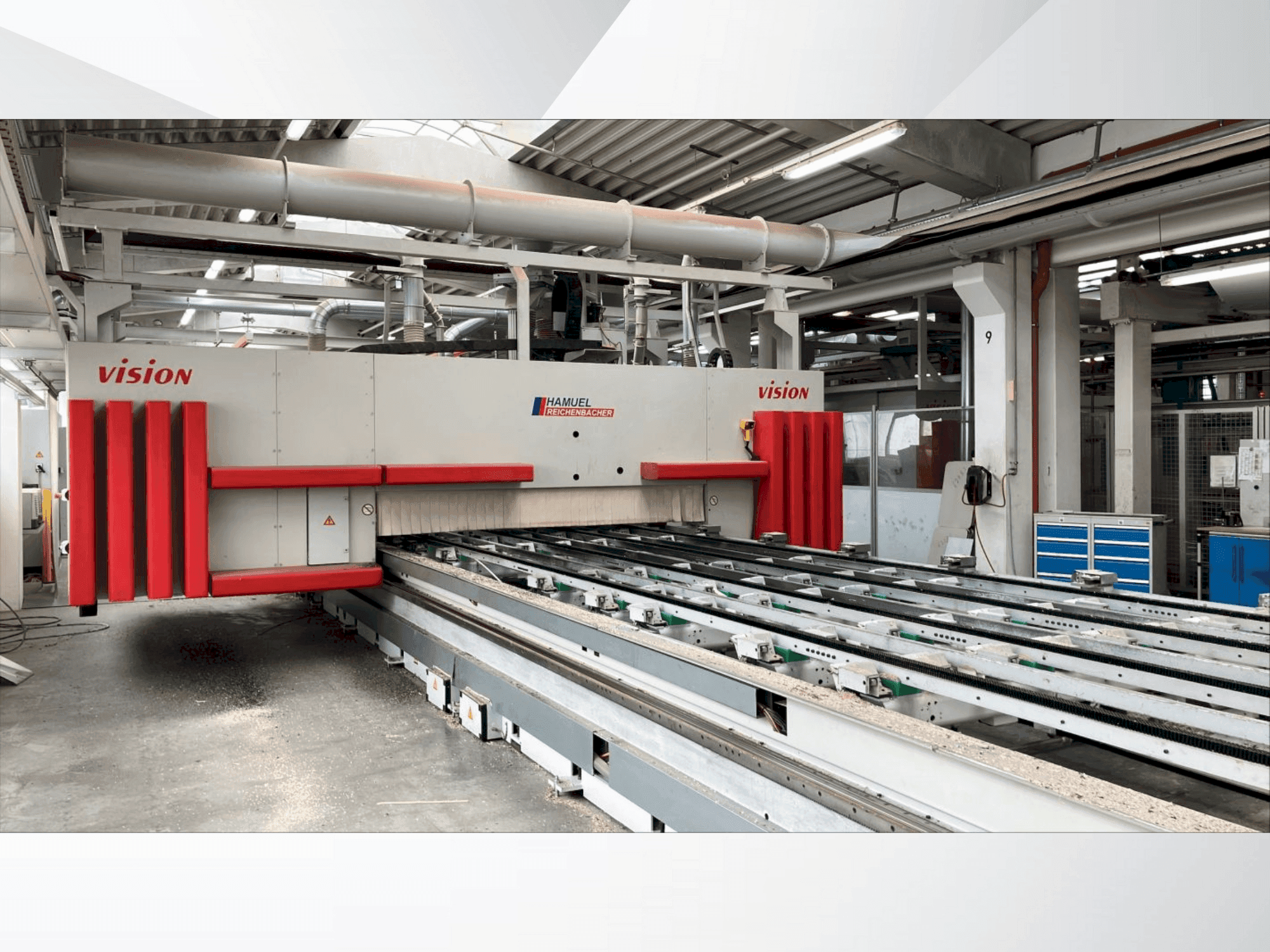

Hamuel Reichenbacher - VISION III-TT-LDE-CNC-HAM-2017-00001

Additional equipment

• Automatically adjustable support table with vacuum pins
• Vacuum suction plates built into the fixed machine bed
• Allows flexible and secure part positioning

Machine Benefits

Qualitative Machine Benefits

• U2 to u10 axes: carrier movement
• The machine features maximum speeds of 60 m/min on the x and y axes, 20 m/min on the z axis, up to 90°/s on the b and c axes, and offers an infinitely programmable feed rate in the x/y plane along any path.
• Vacuum pins: 72 units, Ø100 mm
• Stroke: 100 mm
• Effective stroke: 25 mm (above base belt)
• The vacuum carrier system includes 9 electric motor-driven carriers, each with a ±1000 mm travel range, minimum spacing of 300 mm (typically ~1000 mm), and equipped with 8 vacuum suction cups (Ø100 mm) arranged in a 1–2–2–2–1 pattern, vacuum monitoring, and blowing nozzles for pad cleaning, with all carriers driven on both sides by electric motors.

Technical Machine Benefits

• Control panel: 17" tft flat screen
• Operating system: windows 7
• Display computer: pcu 50. 5
• User interface: hmi operate
• X1/x2 axes: approx. 8540 mm – longitudinal gantry movement
• Y1 axis: approx. 2500 mm – transverse unit movement
• Z1 axis: approx. 480 mm – vertical unit movement
• B1 axis: ±180° – swivel movement
• C1 axis: 360° – rotary movement
• X3 axis: underfloor drilling unit movement

Extra Information

Machine still under power
