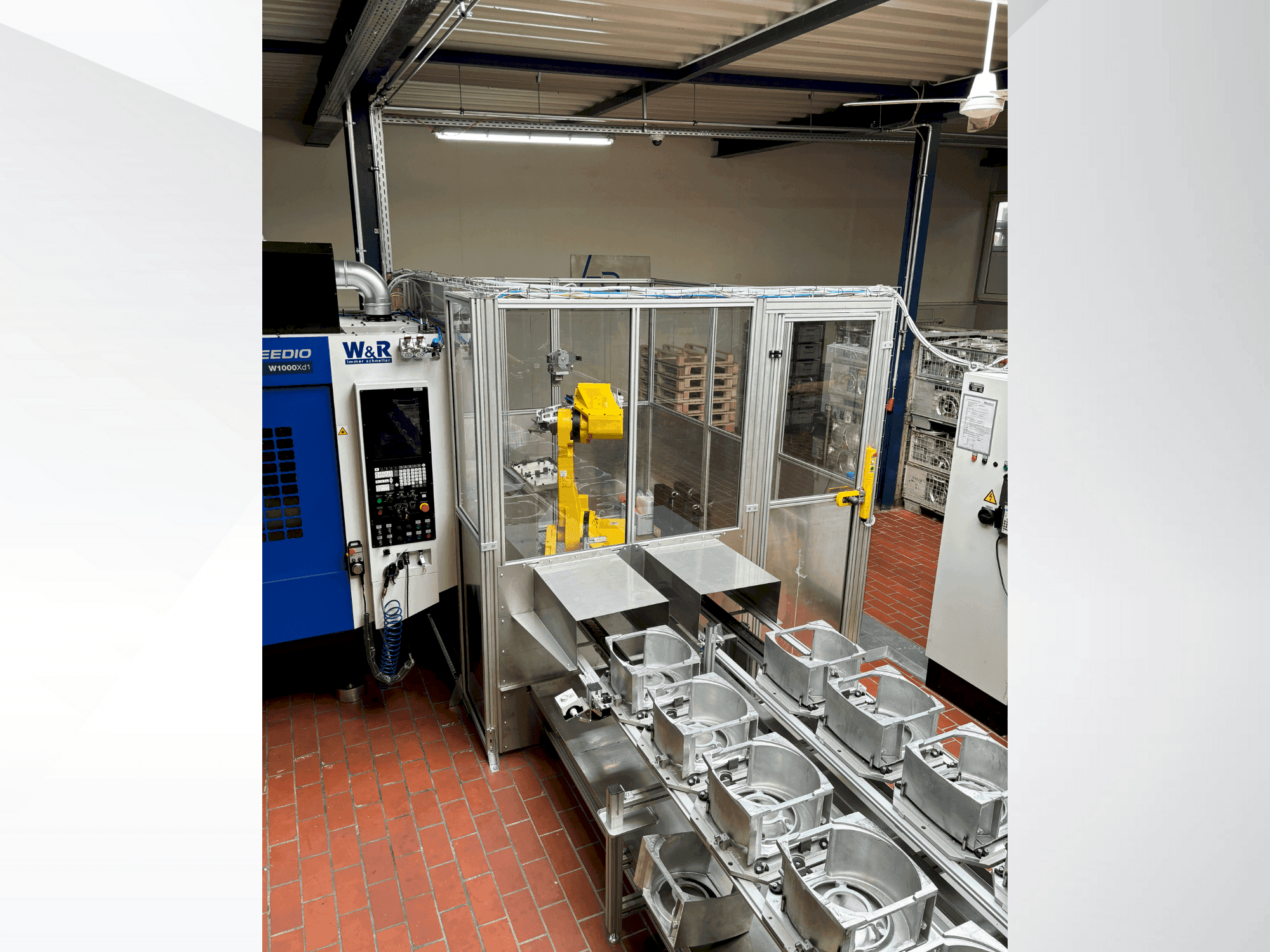

FANUC - M710 iC 70DE-OTH-FAN-2023-00001

Machine Benefits

Technical Machine Benefits

• Gripper & storage system / 1-fold gripper for motor flange u5. 300-334 - aluminum base with part-specific clamping jaws and quick-change system / component intermediate storage - steel construction with part-specific receiving and clamping / pre-cleaning tank (optional) - 120l stainless steel with thermostat heating (4kw)/ safety & control systems safety fencing - wire mesh with safety door and walkway grating / electrical and pneumatic equipment / sps control with program and robot programming / installation and commissioning at customer site
• Conveyor system/ oval plate chain conveyor - 5000 x 1000mm setup surface, 1100mm height / 15 workpiece pallets (420 x 420mm alu) for motor flange u5. 300-334 / pneumatic lift-center unit with drive / industrial robot / 6-axis robot - 30kg payload, 1700mm reach / robot interface - w&r standard with automations and signal lights / differential pressure part control - 2 sensors for precise positioning
• Machining center / travel paths: x=1000mm, y=500mm, z=480mm / tool magazine: 21 stations spindle: 16-16000 rpm, bbt 30 cone / coolant system: 15 bar through spindle, 150l tank / electronic handwheel and enclosed hood cnc round table 4-axis cnc round table - rolling bearing drive / performance: 100 rpm max, 280 nm clamping force / capacity: 100kg transport weight (200kg with counterbearing) / weight: 67kg
• Hydraulic clamping / 210 bar pump system - 27l tank, 80-210 bar pressure range/ electronic monitoring - led display, filters, temperature sensor / plc integration - m-function and manual operation modes / chip removal "twin" system/ dual conveyor system - hinge belt (large chips) + scraper belt (fine chips) / materials: aluminum, die casting, brass, steel filtration: 80 micron rotation filter with automatic cleaning / pumps: 240w filter cleaning, 240w cutting supply, 400w chip flushing
• /ty with 5-stage control / automatic side door - pneumatic drive with safety components
