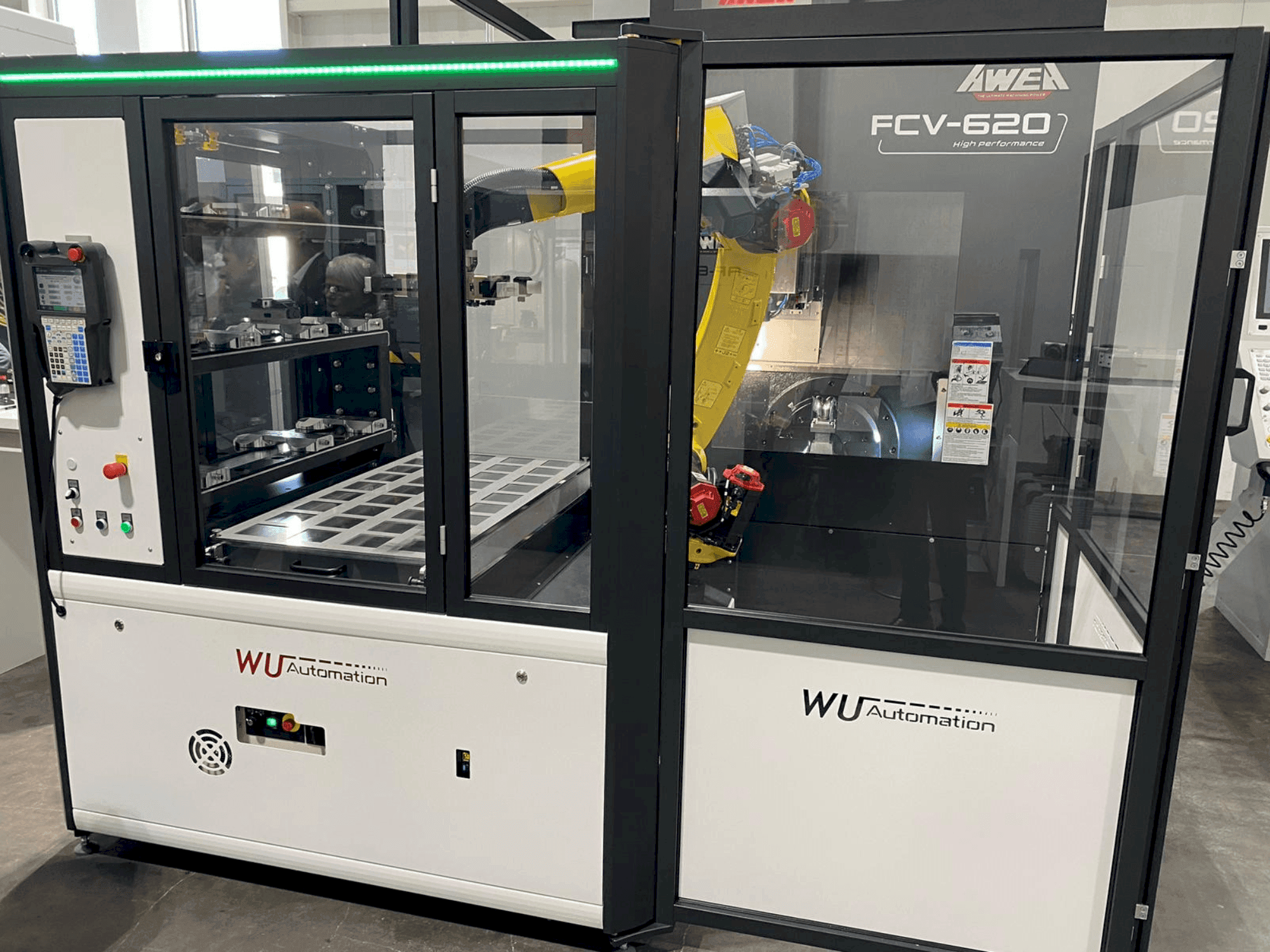

This 6-axis WU Automation RZ-3/35 was manufactured in 2023. A versatile robot cell with a compact design, it features a 6-axis robot capable of handling up to 35 kg. It includes an intuitive graphical interface, Schunk NSR 100 and JGP 125 gripper systems, and a safety package with movable safety fence. Ideal for efficient, flexible operations with minimal setup times. Compatible with all Hermle machines. If you are looking to get high-quality automation capabilities consider the WU Automation RZ-3/35 machine we have for sale. Contact us for more information.
Übersicht
- Hersteller: WU Automation
- jahr: 2023
- MODELL: RZ-3/35
- Produktionsstunden: 50
- anwendungstyp: Sonstige Automatisierung
- Standort: Deutschland
- maschinentyp: Automatisierungsanlagen
Technische Daten - WU Automation RZ-3/35
Maße
- Maschinentiefe: 1900 mm
- Maschinenhöhe: 2500 mm
- Maschinengewicht: 2000 kg
Bewegung
- Anzahl der Achsen: 6
Zusätzliche Informationen
Additional equipment
- Vice Pallets: 18
- Safety Package: Movable safety fence and safety software
- Shelving System: Adjustable levels for up to 18 pallet spaces
- Valve Terminal: For controlling external elements
Machine Benefits
Technical Machine Benefits
- User-friendly operation: intuitive, graphical interface for fast operation
- Short setup times: quick changeovers, even for small series
- Optimal access: flexibly positioned for easy access and flexibility
- Compact design: small footprint with integrated components
- High flexibility: easy transport and relocation, connection to other machines
- Easy retrofitting: standardized interfaces for external functions
- Modular system: adaptable with various gripping and feeding systems
- Installation area (lxwxh): 1700 mm x 1300 mm x 2200 mm
- Max reach: 1810 mm
- Transfer weight: up to 35 kg
Extra Information
Gripper Systems: 1x Schunk NSR 100 gripper system 1x JGP 125 gripper system 2x parallel grippers 2x compensation units 2x gripper jaw sets Compatible with all Hermle machines Front loading
