- ➤ Used EMAG VLC 250 Vertical Lathe For Sale | gindumac.com

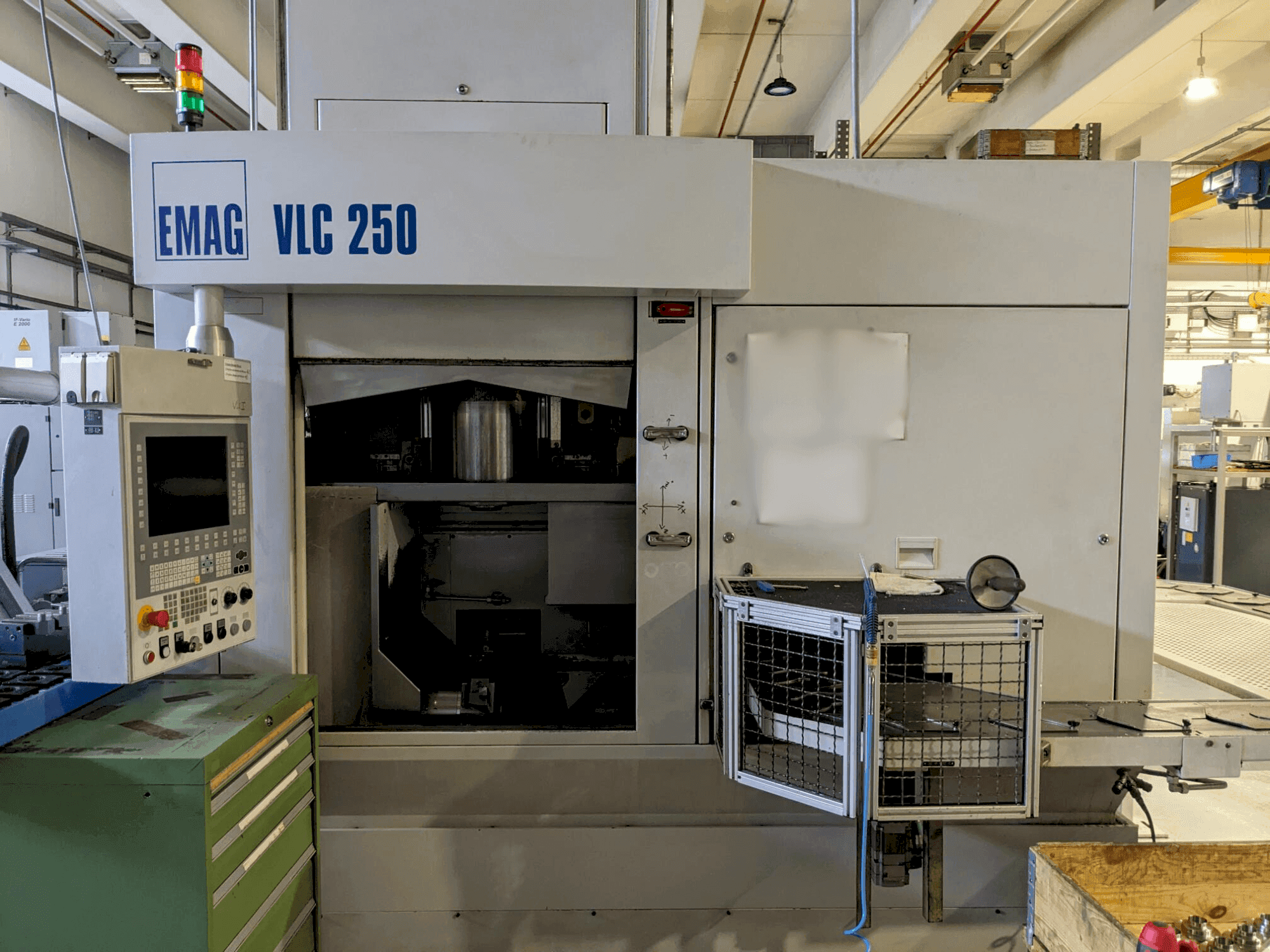

This vertical turning machine was manufactured in 2011. The EMAG VLC 250 features a Siemens Sinumerik 840Dsl control system, a 12-station tool turret, and a 3-jaw power chuck with a quick jaw change system. It includes a coolant system with a paper band filter and an electrostatic emulsion mist extractor. Ideal for handling workpieces up to 175mm in height and 12kg in weight. For more information about this vertical turning machine, please reach out to us.
Übersicht
- Hersteller: EMAG
- jahr: 2011
- MODELL: VLC 250
- anwendungstyp: Drehen
- Standort: Deutschland
- maschinentyp: Vertikal-Drehmaschine
- Marke Steuergerät: SIEMENS
Technische Daten - EMAG VLC 250
Steuerung
- Steuerungsmarke: SIEMENS
- Steuerungsmodell: Sinumerik 840Dsl
Technische Spezifikation
- Max. Werkstückdurchmesser: 170 mm
- Spindelleistung: 28 kW
Zusätzliche Informationen
Additional equipment
- Tool turret with 12 stations
- Drilling station for one drilling tool with Capto C8 holder incl. IK
- Full clamping cylinder SMW SIN-S 125
- 3-jaw power chuck with quick jaw change system
- Coolant system with paper band filter SBF100 (Flow rate 100 l/min, 540l)
- Electrostatic emulsion mist extraction IFS IFE2000 (2000m³/h)
- Hinged belt chip conveyor with integrated cooling lubricant tank (Capacity approx. 360 litres, Chip discharge height 1250mm)
- Open pallet circulation system as L-belt with pick-up station (Storage capacity 30 workpieces, Diameter 30 - 170mm, Workpiece height max. 175mm, Max. weight 12kg)
- Suction included
Machine Benefits
Technical Machine Benefits
- Torque: 330 nm (100% ed), 460 nm (40% ed)
- Shank diameter: 40mm
- High-performance main drive and tool carrier
- Quick jaw change system for the 3-jaw power chuck
- Integrated cooling and chip management systems
- Torque at 100% ed: 330 nm (main drive), 15 nm (tool carrier)
- Torque at 40% ed: 460 nm (main drive), 24 nm (tool carrier)
- Spindle head size 6
- Max. Actuating force fv at 70 bar: 84 kn
- Max. Actuating force fz at 70 bar: 71. 75 kn
Extra Information
Machine still under power
