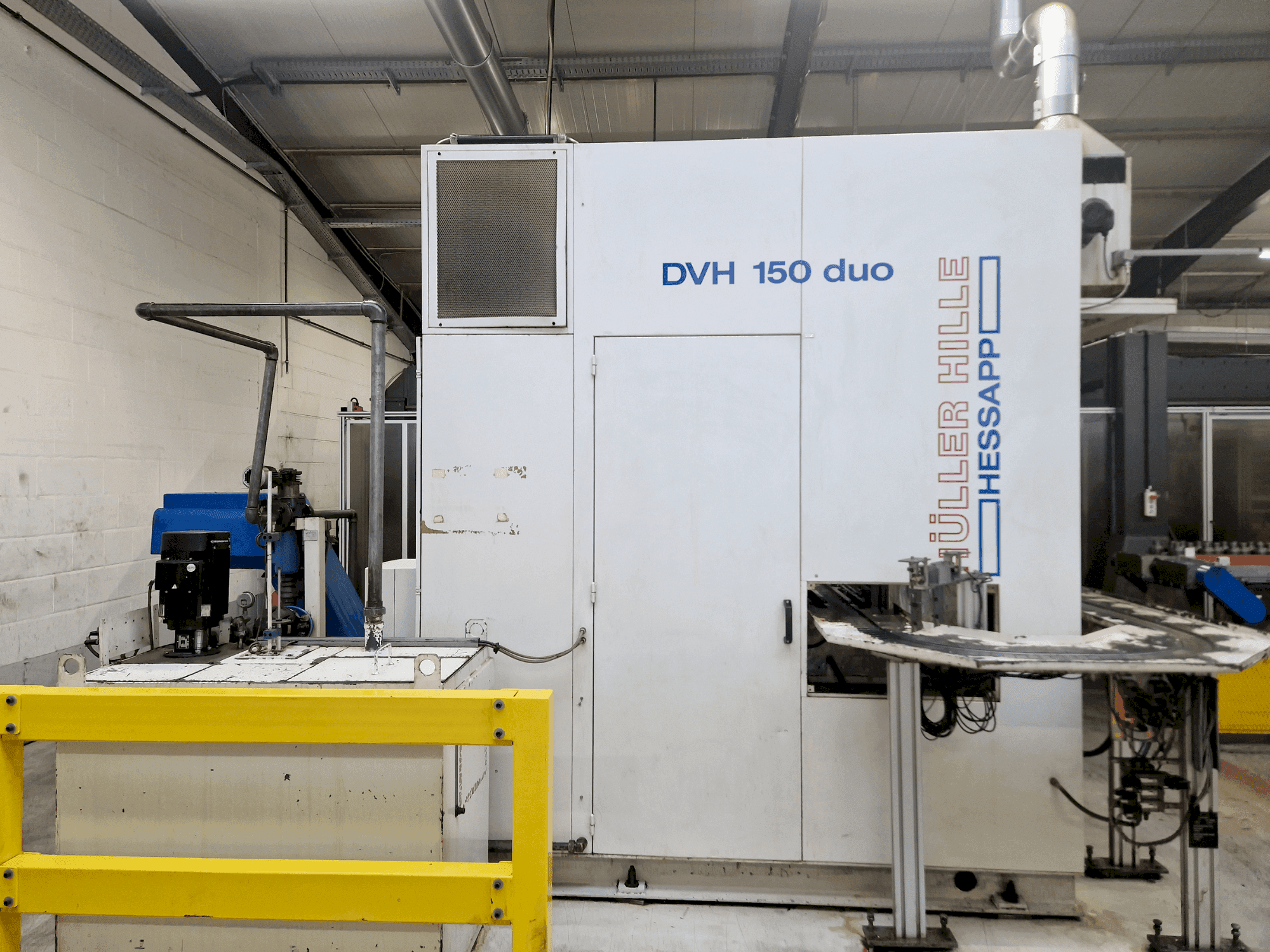

HULLER HILLE - DVH 150 DuoDE-TUR-HUL-1999-00001

Additional equipment

• Central lubrication system

Machine Benefits

Technical Machine Benefits

• X-axis: roller guide / z-axis: glide guide
• X-axis roller guide and z-axis glide guide, maximum axis speeds: x-axis 60,000 mm/min, z-axis 30,000 mm/min, maximum feed rate: 30,000 mm/min, maximum rapid traverse: 60,000 mm/min
• Maximum swing diameter: 200 mm / maximum workpiece and chuck height: 220 mm
• Spindle diameter in front bearing: 80 mm
• Machine connection power: 45 kw
• Ball screw pitch: x-axis 20 mm, z-axis 10 mm
• Central lubrication interval: 15,000 m, amount: 4 cycles
