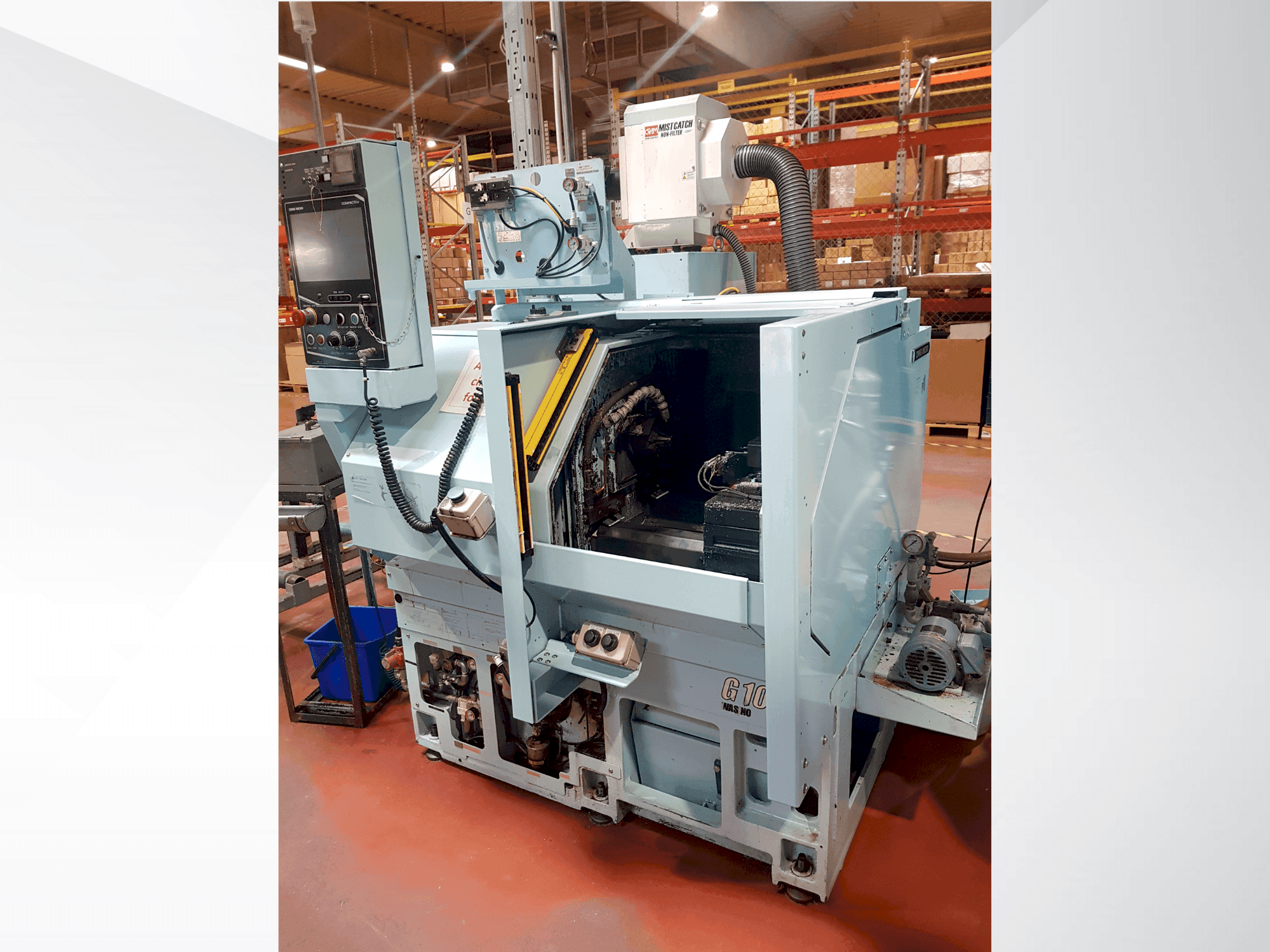

DMG MORI - WASINO G 100 | 300HU-TUR-DMG-2017-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- ➤ Used DMG MORI WASINO G 100 | 300 For sale | gindumac.com
This lathe was manufactured in 2017. The DMG MORI WASINO G 100 | 300 features a maximum turning diameter of 285 mm and a standard diameter of 60 mm. It supports bar work up to 38.1 mm and offers rapid traverse rates of 12000 mm/min on the X-axis and 20000 mm/min on the Z-axis. With a spindle speed up to 6000 min⁻¹, this machine is ideal for efficient operations. For more information about this lathe, please reach out to us.
Übersicht
- Hersteller: DMG MORI
- jahr: 2017
- MODELL: WASINO G 100 | 300
- Produktionsstunden: 15650
- anwendungstyp: Drehen
- Standort: Ungarn
- maschinentyp: Horizontal-Drehmaschine
Technische Daten - DMG MORI WASINO G 100 | 300
Maße
- Maschinentiefe: 1958 mm
- Maschinenhöhe: 2430 mm
- Maschinengewicht: 1650 kg
Bewegung
- X-Achsverfahrweg: 300 mm
- Z-Achsverfahrweg: 285 mm
Technische Spezifikation
- Spindelleistung: 5.5 kW
- Spindeldrehzahl: 6000 RPM
Zusätzliche Informationen
Machine Benefits
Qualitative Machine Benefits
- High spindle speed (above 6000 min⁻¹)
Technical Machine Benefits
- High rapid traverse rates
Extra Information
MACHINE STILL UNDER POWER Units available: 4 Max. Turning Diameter: 285 mm (11.22 in) Standard Turning Diameter: 60 mm (2.36 in) Bar Work Capacity: 38.1 mm (1.5 in) Spindle Nose Type: 100 mm (3.93 in) flat Through Spindle Hole Diameter: 45 mm (1.77 in) Spindle Bearing Inner Diameter: 75 mm (2.95 in) Shank Height for Square Tool: 16 mm (0.63 in) Shank Diameter for Boring Bar: 20 mm (0.79 in) Rapid Traverse Rate:X-axis: 12000 mm/min (472.44 ipm) Z-axis: 20000 mm/min (787.40 ipm) Jog Feedrate: 0 - 5000 mm/min (196.85 ipm) Motors:Spindle Drive Motor (40%/Continuous): 5.5/3.7 kW (7.33/4.93 HP) Feed Motors: X-axis: 0.75 kW (1 HP), Z-axis: 1.2 kW (1.6 HP) Hydraulic Pump Motor: 0.75 kW (1 HP) Lubricating Pump Motor: 0.04 kW (0.053 HP) Coolant Pump Motor: 0.18 kW (0.24 HP) Cooling Oil Pump Motor: 0.06 kW (0.08 HP) Compressed Air Supply: 0.5 MPa (72.5 psi), 80 L/min Tank Capacities:Hydraulic Oil Tank Capacity: 10 L (2.65 gal) Lubricating Oil Tank Capacity: 2 L (0.52 gal) Coolant Tank Capacity: 147 L (38.88 gal) Oil Heat Exchanger Tank Capacity: 10 L (2.65 gal) Machine Mass with loader specification: 2165 kg
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
