DMG MORI - DMC 650 VDE-MIL-DMG-2014-00002
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- ➤ Used DMG MORI DMC 650 V For sale | gindumac.com

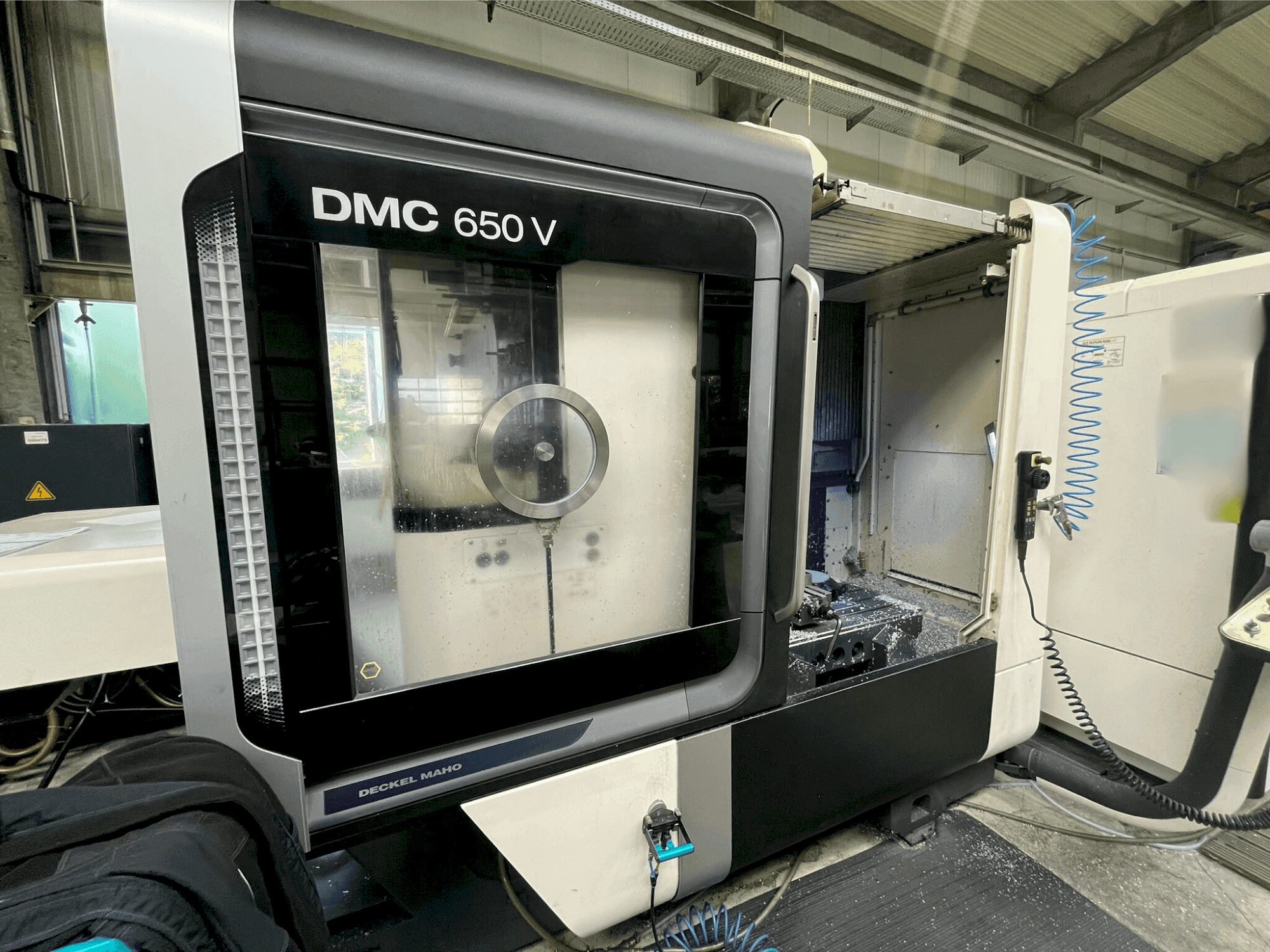

This 3-axis DMG MORI DMC 650 V was manufactured in 2014 and features a spindle speed of 24,000 rpm, a 30-fold tool changer, and a HEIDENHAIN TNC640 control system. It includes a chip conveyor, belt filter system, and optional LANG Eco Compact 20 pallet changer with a tool measuring system. Weighing 5,900 kg, the DMG MORI DMC 650 V machine we have for sale represents a robust addition to any machining fleet. Contact us for more information.
Übersicht
- Hersteller: DMG MORI
- jahr: 2014
- MODELL: DMC 650 V
- anwendungstyp: Fräsen
- Standort: Deutschland
- maschinentyp: Vertikal-Bearbeitungszentrum
- Marke Steuergerät: HEIDENHAIN
Technische Daten - DMG MORI DMC 650 V
Steuerung
- Steuerungsmarke: HEIDENHAIN
- Steuerungsmodell: TNC640
Maße
- Maschinengewicht: 5900 kg
Bewegung
- Anzahl der Achsen: 3
- X-Achsverfahrweg: 650 mm
- Y-Achsverfahrweg: 520 mm
- Z-Achsverfahrweg: 475 mm
Technische Spezifikation
- Anzahl der Werkzeuge: 30
- Spindeldrehzahl: 24000 RPM
Zusätzliche Informationen
Additional equipment
- Chip Conveyor
- Belt Filter System
- Replaced Main Spindle
- optional: Pallet changer LANG Eco Compact 20 (2018) with tool measuring system / 20 LANG vices / Toolsetter OTS
Machine Benefits
Qualitative Machine Benefits
- Precision control with heidenhain tnc640.
- Enhanced performance with the replaced main spindle.
- Attached the service report for the spindle change / your customer is welcome to visit the machine and check the geometry / the lang automation is optional available too (2018)
Technical Machine Benefits
- High spindle speed for high-speed machining.
- Large tool capacity with a 30-fold tool changer.
- Efficient chip management system.
- Inner cooling through spindle
Extra Information
36 m/min rapid traverse Inline spindle with 14.5 kW / 11.5 kW 3D control, UNS ERGOline® Control Tool clamping according to DIN 69872 20-position SK40 tool changer Table size 900 x 570 mm Indirect X, Y, Z position measuring systems 3D control Heidenhain TNC 640 User interface ERGOline Control, 19" screen HSK-A63 for tool holder according to DIN 69893 Power: 24 / 16 kW Torque: 100 / 77 Nm 30-position HSK-A63 tool magazine Chain magazine with holders and double gripper device, incl. direct X, Y, and Z measuring systems Incl. sealing air for the measuring systems. Incl. direct manual tool loading into the tool magazine Infrared measuring probe Renishaw PP 60 optical MPC Machine Protection Control Machine protection through quick shutdown Internal coolant supply Basic Package 3 consisting of: Rotary feedthrough spindle, Internal coolant supply Paper belt filter 40 bar / 600 l Chip conveyor, bed flushing, cabin roof Rotating viewing window Electronic handwheel
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
