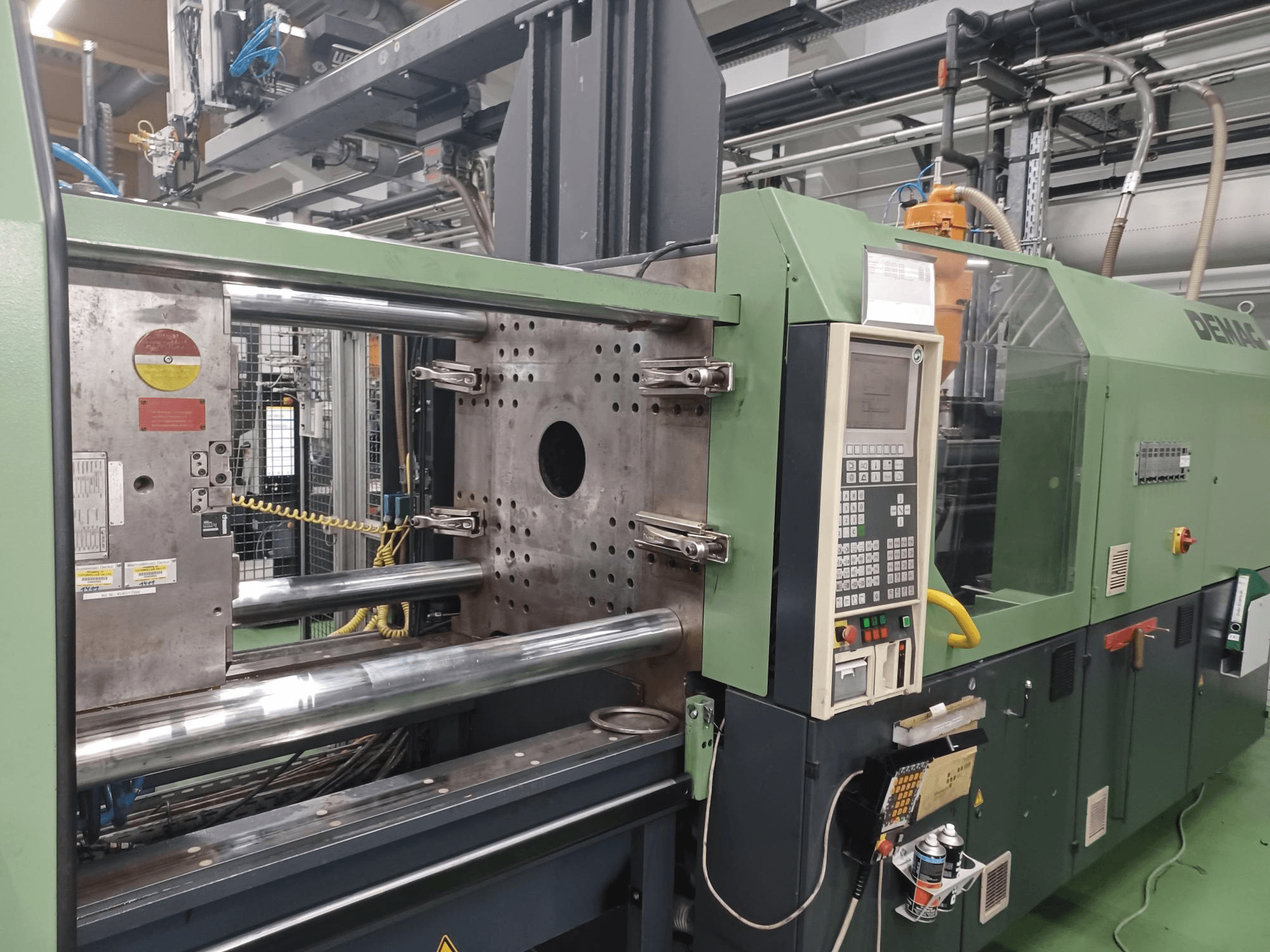

DEMAG - ET 330 - 1450DE-INJ-DEM-1995-00003

• Clamping unit:

  • Locking force: 3630 kN

  • Tie bar spacing (H x V): 710 x 630 mm

  • Platen dimensions (H x V): 1040 x 950 mm

  • Mold installation height: min 330 mm / max 830 mm

  • Opening stroke: 675 mm

  • Platen distance (daylight): 1505 mm

  • Permissible mold weight: fixed side (DS) 1200 kg; moving side (AS) 2400 kg; total 3600 kg

  • Ejector: stroke 200 mm; force 80 kN; retraction force 35 kN

  • Core pull control: yes (2 units, on ejector side/AS)

  • Shut-off nozzle: yes (hydraulic/pneumatic 1/1)

• Injection unit 1:

  • Unit code: 1450-60

  • Screw diameter: 60 mm

  • Injection pressure: 1905 bar

  • Stroke volume: 763 ccm

  • Shot weight (PS): 695 g

  • Screw L/D ratio: 20

  • Nozzle radius: 15 mm

  • Max dosing stroke: 270 mm

  • Plasticizing flow: 41 g/s

• Configuration/controls:

  • Armored (wear-resistant) injection unit: yes

  • Pneumatic ejector: yes

  • Process control: SPC (Yes/Yes)

  • Printer interface: integrated

  • Hot runner control: 0-zone (none)

• Maintenance:

  • Hose replacement performed in 2017

Additional equipment

• Wittmann W322-121 CNC linear robot/removal device (included with the machine)

  • Travel paths: Y-axis 1600 mm, X-axis 500 mm, Z-axis 2500 mm
