DECKEL MAHO - DMU 80 TDE-MIL-DEC-2002-00005
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen

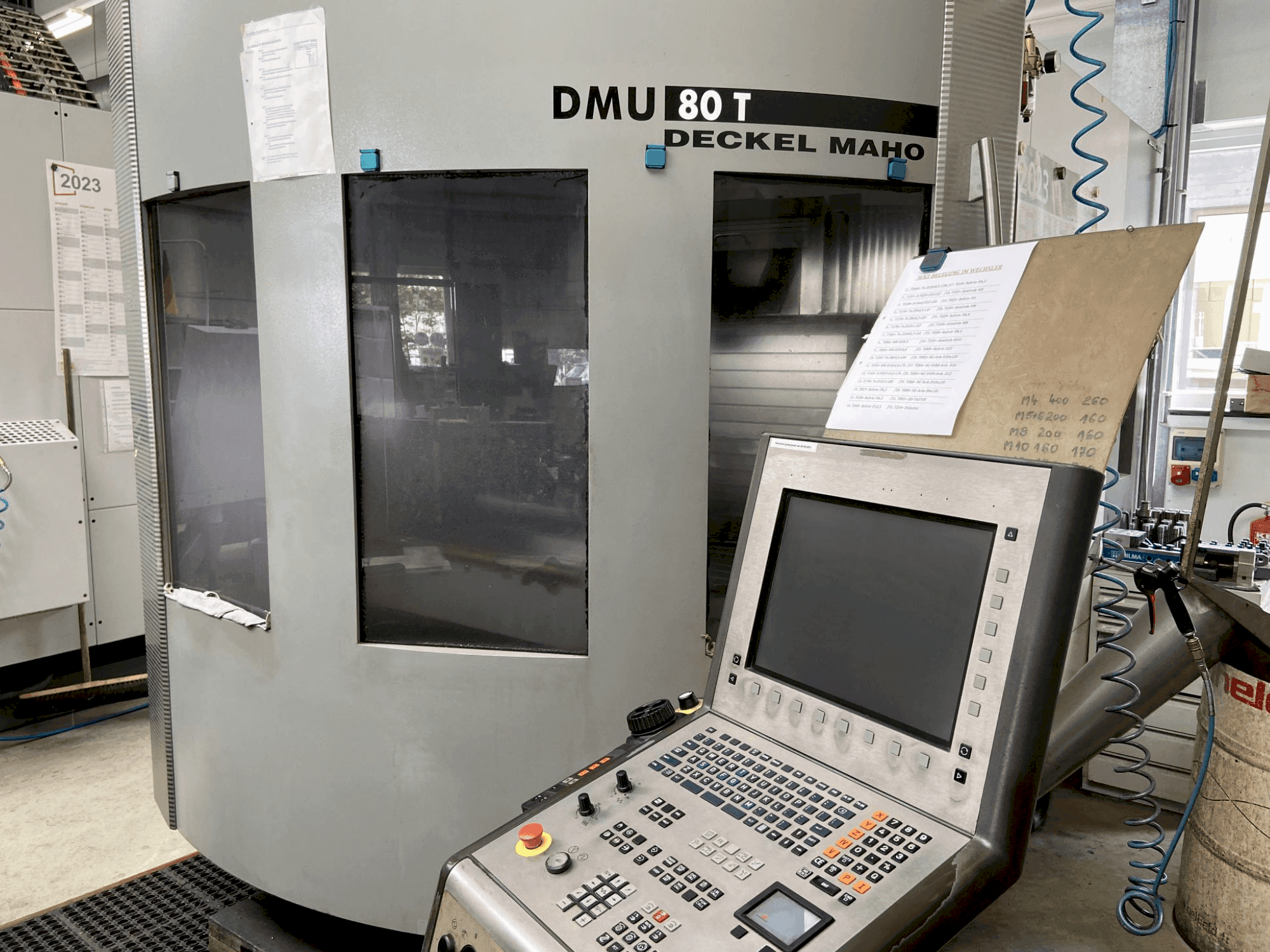

- DECKEL MAHO DMU 80 T (2002) Universal Machining Center
This DECKEL MAHO DMU 80 T (2002) Universal Machining Center was manufactured in 2002 in Germany. It is equipped with 3+2 axis (B-axis and NC dividing head), a 12,000 rpm spindle and a 32 tool magazine. The machine runs with tool taper SK 40 and is controlled by a Heidenhain control unit with iTNC 530 model. Electronic handwheel , spiral conveyor and 3D path control are available. It is still in operation, and has always been in single-shift production. The machine works accurately, even if Y-axis has some play, which can result in a slightly wavy surface structure during fine finishing. Fits/stitch dimensions can be achieved in the +/- 0.015 range. The tool changer flap falls when the machine is at a standstill for a longer period of time (cylinder fastening worn out). Overall machine is in good, reliable working condition and can be inspected anytime. The spindle was replaced in September 2017 and has approx. 5700 hours. See photo and video gallery for detailed impressions - or original delivery note (German) attached for all technical positions.
Übersicht
- Hersteller: DECKEL MAHO
- jahr: 2002
- MODELL: DMU 80 T
- Produktionsstunden: 25602
- anwendungstyp: Fräsen
- Standort: Deutschland
- maschinentyp: Universal-Bearbeitungszentrum
- Marke Steuergerät: HEIDENHAIN
Technische Daten - DECKEL MAHO DMU 80 T
Steuerung
- Steuerungsmarke: HEIDENHAIN
- Steuerungsmodell: iTNC 530
Bewegung
- Anzahl der Achsen: 5
- X-Achsverfahrweg: 880 mm
- Y-Achsverfahrweg: 630 mm
- Z-Achsverfahrweg: 630 mm
Technische Spezifikation
- Spindelleistung: 10 kW
- Spindeldrehzahl: 12000 RPM
- Werkzeugaufnahme: SK 40
Zusätzliche Informationen
Additional equipment
- Electronic handwheel
Machine Benefits
Qualitative Machine Benefits
- The machine has always been in single-shift operation and is currently still in operation
- The b-axis and the nc dividing head are particularly noteworthy
- The spindle was replaced in september 2017 and has approx. 5700 hours
- Machine on hours: 53046 // cutting hours: 25602 // new spindle hours (since end of 2017): 5700
Technical Machine Benefits
- 5-axis (3+2) machining center
- Nc swivel milling head (b-axis)
- 32-positions tool magazine // tool changing device pick-up system
- Tool clamping to din 69872
- Spiral conveyor
- 3d path control
- Tailstock manual, tip height 160 mm
Extra Information
The tool changer flap falls when the machine is at a standstill for a longer period of time (cylinder fastening worn out) // Y-axis has some play, which can result in a slightly wavy surface structure during fine finishing. Otherwise the machine works accurately // Fits/stitch dimensions can be achieved in the +/- 0.015 range // Approx. 200x SK40 tool and collet holders including collets available (upon extra charge)
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
