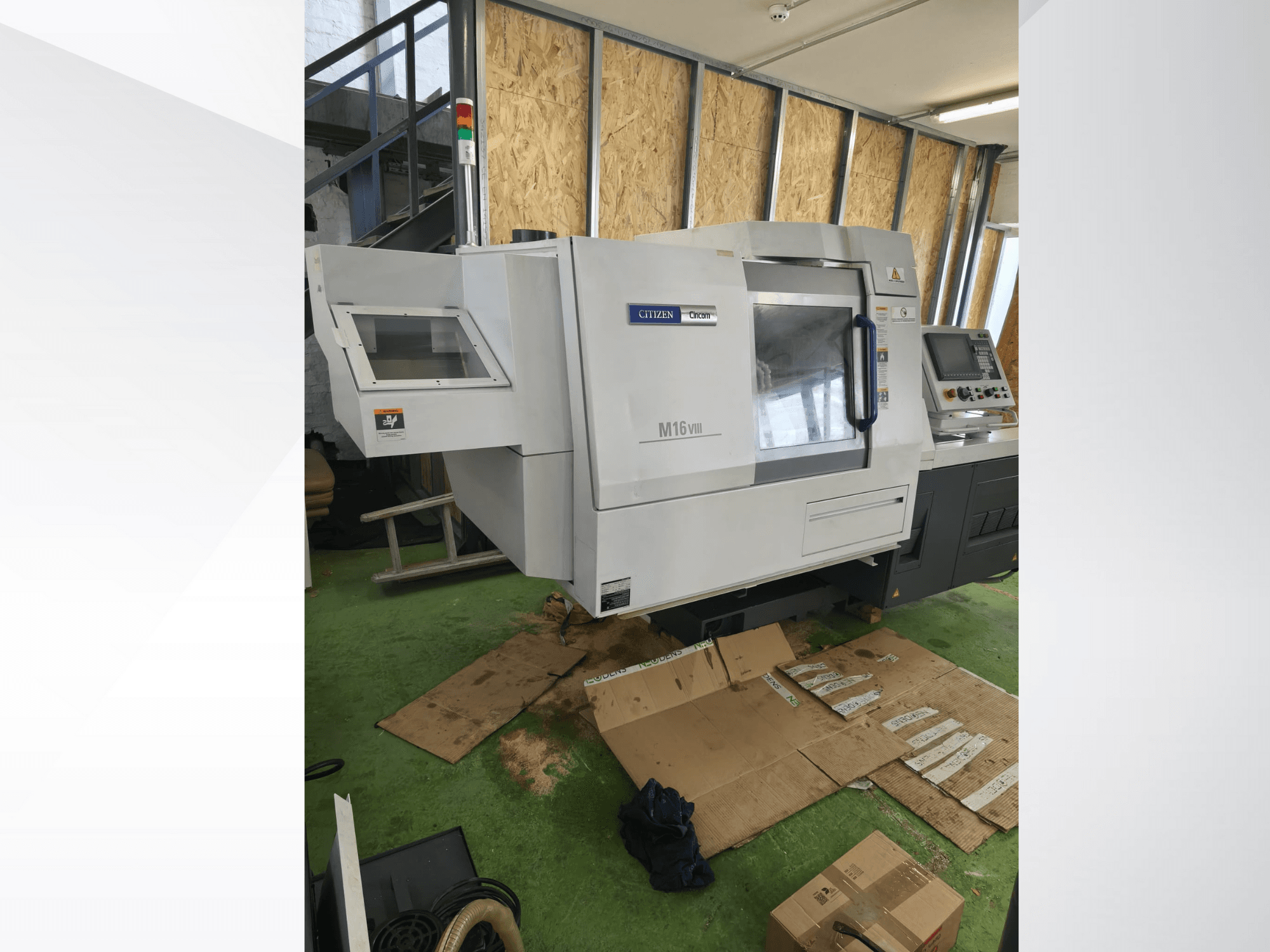

Citizen - Cincom M16-4M8HR-TUR-CIT-2021-00001

Additional information

• Tool Configuration:

• Total number of tools: 32–38 (depending on configuration)

• Gang turning tools: 5 pcs

• Turret tools: 10 pcs

• Back tool post: 4 pcs

• Tool shank size: 10 mm

• Sleeve size: Ø19.05 mm

• Main spindle collet chuck: FC261-M

• Guide bushing: FC251-M-K

• Back spindle collet chuck: WFG660-M

• Gang rotary tools:

• Max. drilling diameter: 5 mm

• Max. tapping diameter: M5

• Spindle speed: up to 8000 min⁻¹ (rated 3600 min⁻¹)

• Turret rotary tools:

• Max. drilling diameter: 5 mm

• Max. tapping diameter: M5

• Spindle speed: up to 8000 min⁻¹ (rated 3500 min⁻¹)

• Back tool post rotary tools:

• Max. drilling diameter: 5 mm

• Max. tapping diameter: M5

• Spindle speed: up to 8000 min⁻¹ (rated 4500 min⁻¹)

• Feed and Axis Data:

• Rapid feed rate (all axes except X2, Y2, B): 32 m/min

• X2 axis: 16 m/min

• Y2, B axes: 8 m/min

• Motors and Electrical Data:

• Main spindle motor: 2.2 / 3.7 kW

• Rotary tool drive (gang/turret/back): 0.69 – 0.75 / 1.5 kW

• Total power consumption: 10.75 kW

• Full-load current: 28 A

• Required air pressure: 0.4 MPa (84 NL/min)

• Center height: 1150 mm

• Condition: Excellent working condition
