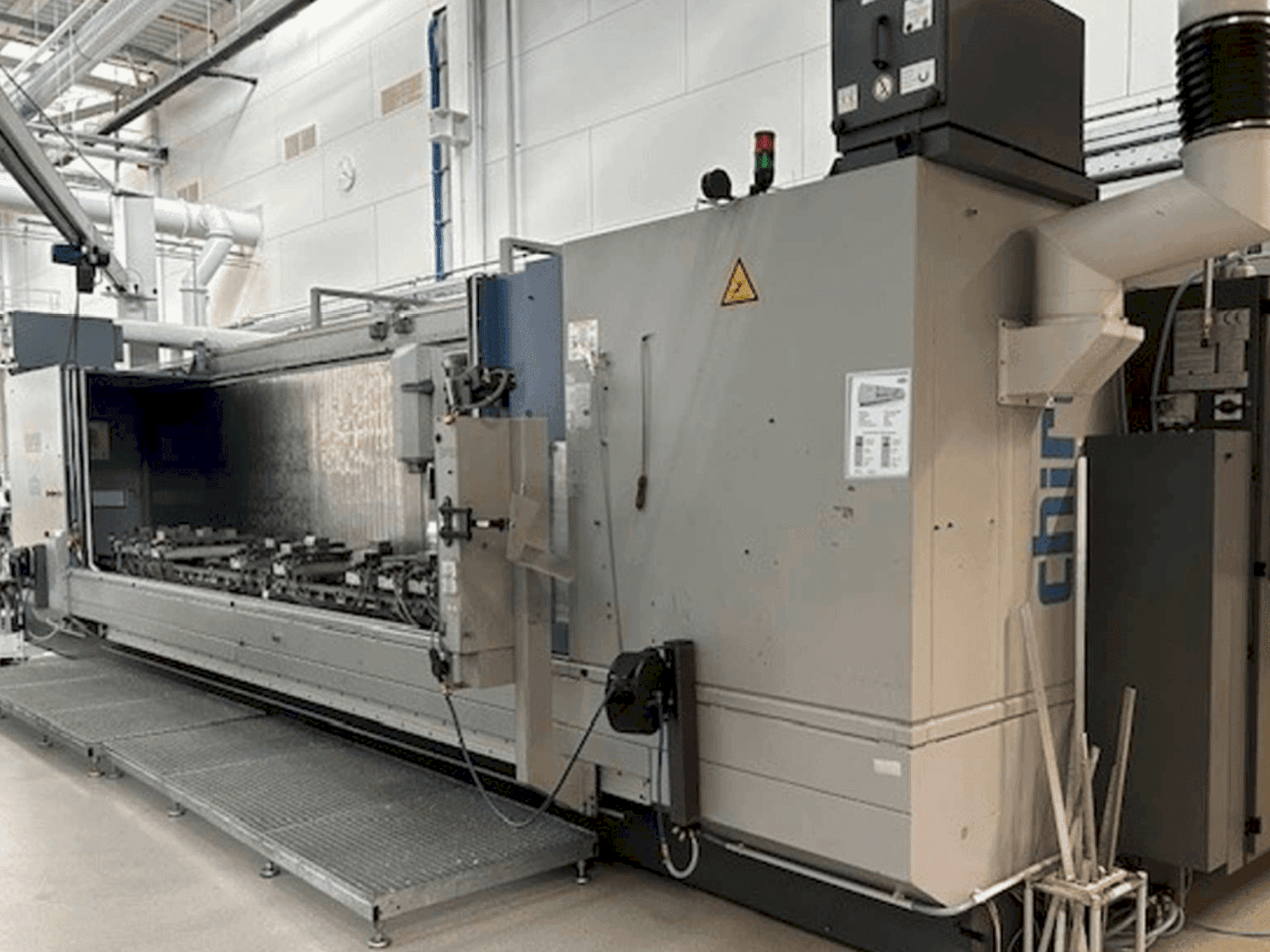

CHIRON - Mill 6000 SKDE-MIL-CHI-2004-00003

Machine Benefits

Technical Machine Benefits

• 92 tool positions hsk-a63 (background magazine)
• Long part machining up to a maximum of 6000 mm
• Machining of the end face (5th side) horizontally with swivel head (right/left)
• Pendulum machining via center partition, max. Workpiece length 1773 mm with sk machining on both end faces (tool length 120 mm)
• 4 hydraulic double vices (fixed center jaw) per pendulum section, positioning, and clamping via linear system (hydraulic release, mechanical clamping)

Extra Information

Additional Equipment High-speed package with Motor Spindle: 12000 rpm, 140 Nm Production Package: Scraper belt conveyor, discharge height 1050 mm Internal coolant preparation KNOLL VRF250 vacuum rotary filter (suitable for steel, cast iron, aluminum, plastic, brass) High pressure 70 bar with HP pump and variable valve Flushing gun per pendulum field Emulsion mist extraction, 2 fans each 800 m²/h Rotating viewing window left and right (1400 mm from machine center) Automatic loading doors Center partition for pendulum machining 5-Axis Milling Package Air Blast Tool Life Monitoring Additional V24 RS232 in the control cabinet BDE/MDE interface (statuses: machine on, machine running, part counter) Marposs (Brankamp) CMS100 Collision Monitoring System 3D machine model for kinematic simulation in the CAM programming system 210 bar hydraulic power unit, 2 clamping circuits, separate system clamping pressure for each pendulum field, clamping pressure control KOHN linear clamping system 8 KOHN Multi 2000 MFS 125/680 HD hydraulic vices Two-part operator step across the entire operating width of 6000 mm With the 3 axes x, y, z and the swivel head, the software package 5-axis milling can be used to mill shapes, e.g. a curve. The software then synchronizes the axes.
