Bystronic - Bysprint Fiber 4020DE-CUT-BYS-2014-00003
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Blechbearbeitungsmaschinen

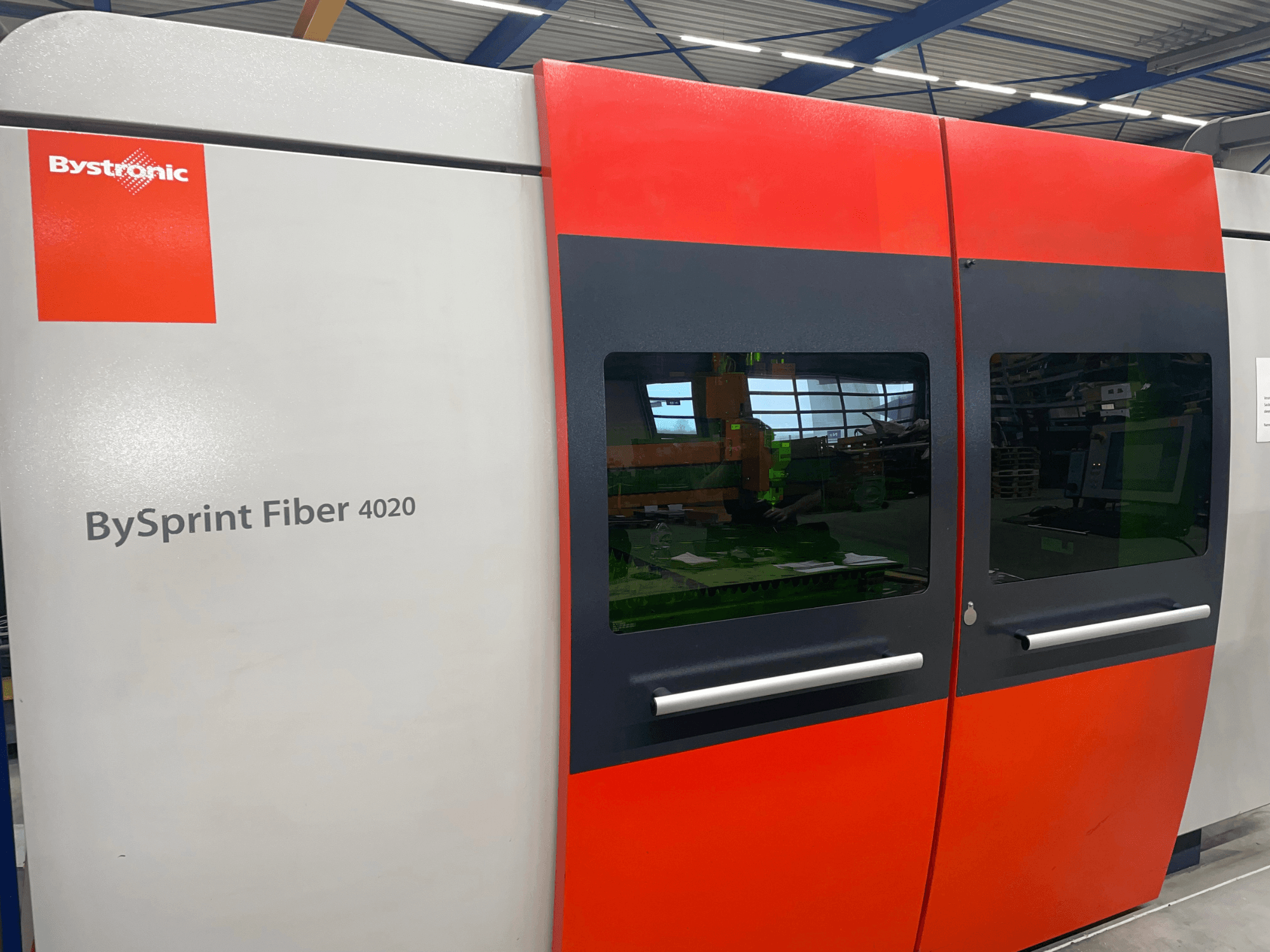

- ➤ Used Bystronic Bysprint Fiber 4020 | Fiber Laser Cutter
This Bystronic Bysprint Fiber 4020 was manufactured in 2014. It features a large cutting area with dimensions up to 4064 mm by 2032 mm and a maximum cutting thickness of 20 mm for steel. The machine supports a fiber laser source with 6000 W power, ensuring precise and efficient cutting. Consider the opportunity to buy this Bystronic Bysprint Fiber 4020 fiber laser cutting machine. Contact us for more information.
Übersicht
- Hersteller: Bystronic
- jahr: 2014
- MODELL: Bysprint Fiber 4020
- Produktionsstunden: 40236
- anwendungstyp: Schneiden
- Standort: Deutschland
- maschinentyp: Faserlaserschneidmaschine
- Verfügbar ab: 31/03/2026
Technische Daten - Bystronic Bysprint Fiber 4020
Maße
- Maschinenhöhe: 2500 mm
- Maschinenlänge: 12900 mm
- Maschinengewicht: 15000 kg
Zusätzliche Informationen
The machine was commissioned in January 2015.
The machine is from the first owner.
Regularly serviced under a maintenance contract by Bystronic.
Cutting head replaced in November 2025.
Automatic nozzle changer. Scrap cart inside the machine and under the transfer table.
Good to very good condition. No outstanding repairs.
Sheet size: X 4000 mm; Y 2000 mm
Cutting range: X 4064 mm; Y 2032 mm; Z 70 mm
Maximum simultaneous positioning speed: 140 m/min
Maximum parallel positioning speed (X/Y): 100 m/min
Maximum axis acceleration: 12 m/s²
Positioning variation Ps (VDI/DGQ 3441): 0.05 mm
Positioning deviation Pa (VDI/DGQ 3441): 0.1 mm
Edge detection accuracy: 0.5 mm
Maximum workpiece weight: 1270 kg
Table changeover time: 35 s
Laser source: Fiber, 6000 W
Pulse frequency: 1–2500 Hz
Control range: 600–6000 W
Wavelength: 1 µm
Max cutting thickness: steel 20 mm; stainless steel 15 mm; aluminum 15 mm; brass 10 mm; copper 10 mm
Electrical consumption (with extraction, cooling unit): 31 kW
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
