- ➤ Used BIESSE VIET S211 R/KRT For Sale | gindumac.com

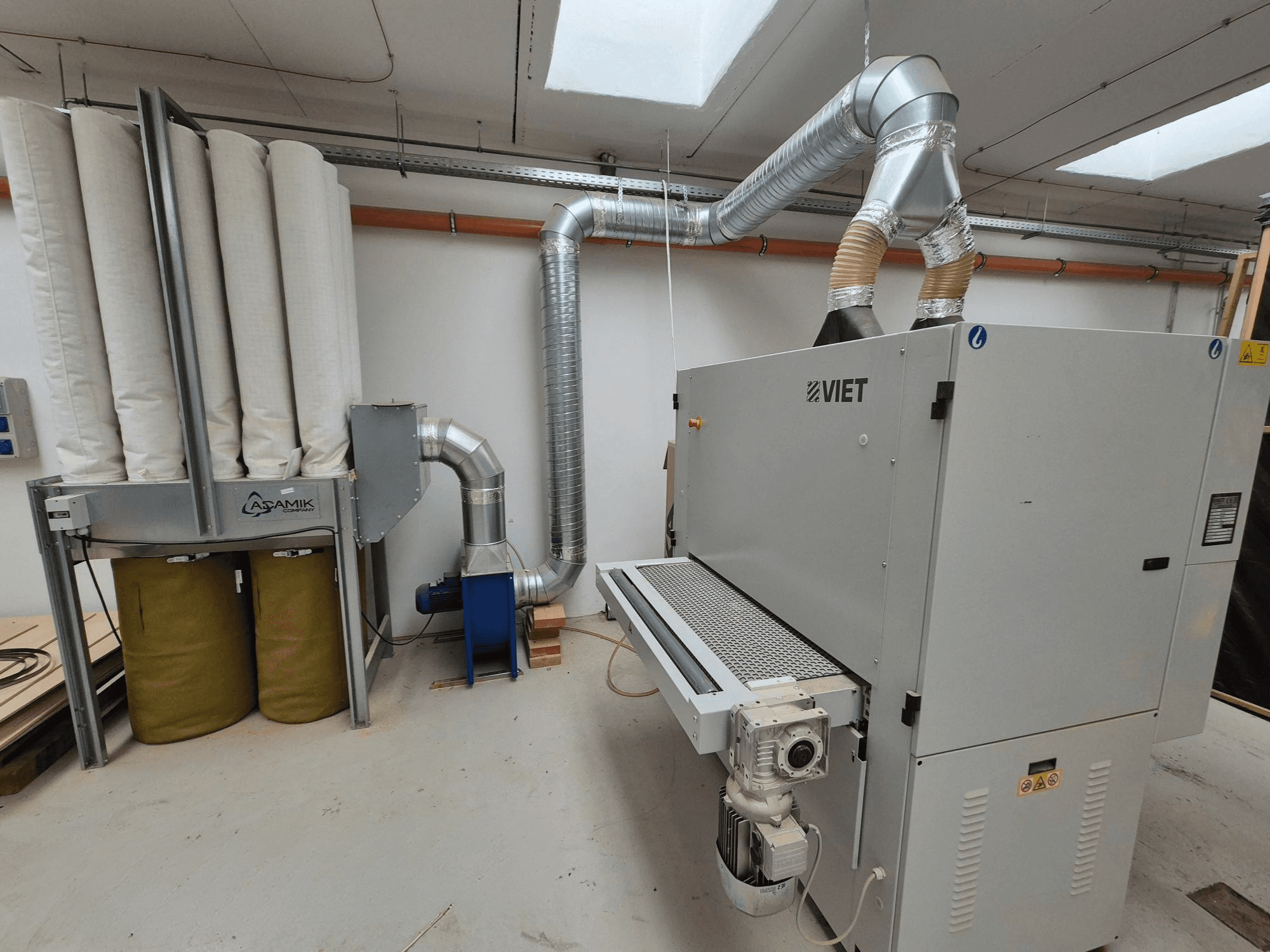

This Biesse VIET S211 R/KRT belt sander was manufactured in 2020. It features a working width of 1,100 mm and can handle material thickness from 3 mm to 160 mm. Equipped with a calibrating roller and a combined roller + pad, it offers adjustable feed speeds from 3 to 16 m/min. Ideal for precise sanding tasks, consider the opportunity to buy this Biesse VIET S211 R/KRT belt sander. Contact us for more information about this machine.
Übersicht
- Hersteller: BIESSE
- jahr: 2020
- MODELL: VIET S211 R/KRT
- anwendungstyp: Schleifen (Holz)
- Standort: Ungarn
- maschinentyp: Bandschleifer
Technische Daten - BIESSE VIET S211 R/KRT
Maße
- Maschinenhöhe: 2050 mm
- Maschinenlänge: 3685 mm
- Maschinengewicht: 2200 kg
Technische Spezifikation
- Arbeitsbreite: 1100 mm
Zusätzliche Informationen
Working thickness: Min. 3 mm / Max. 160 mm
Sanding units (R/KRT configuration)
1st unit: Calibrating roller (R)
2nd unit: Combined roller + pad (KRT)
Roller diameters: 240 mm / 320 mm
Pad shoe: Electronic segmented pad
Belt dimensions
Sanding belt width: 1,100 mm
Sanding belt length: approx. 1,900 mm
Feed system
Feed speed: 3–16 m/min
Feed motor: Inverter controlled
Conveyor belt motor: approx. 3 kW
Motors
Main sanding motor (roller unit): 11 kW
Main sanding motor (pad/brush unit): 4 kW
Compressed air
Required pressure: 6 bar
Air consumption: approx. 10 Nl/min
Dust extraction
Extraction outlets: Ø 120 mm
Number of outlets: 4
Recommended air speed: 20 m/s
Noise level
Sound pressure level: approx. 70–76 dB(A)
Electrical data
Voltage: 400 V
Frequency: 50 Hz
Phases: 3
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
