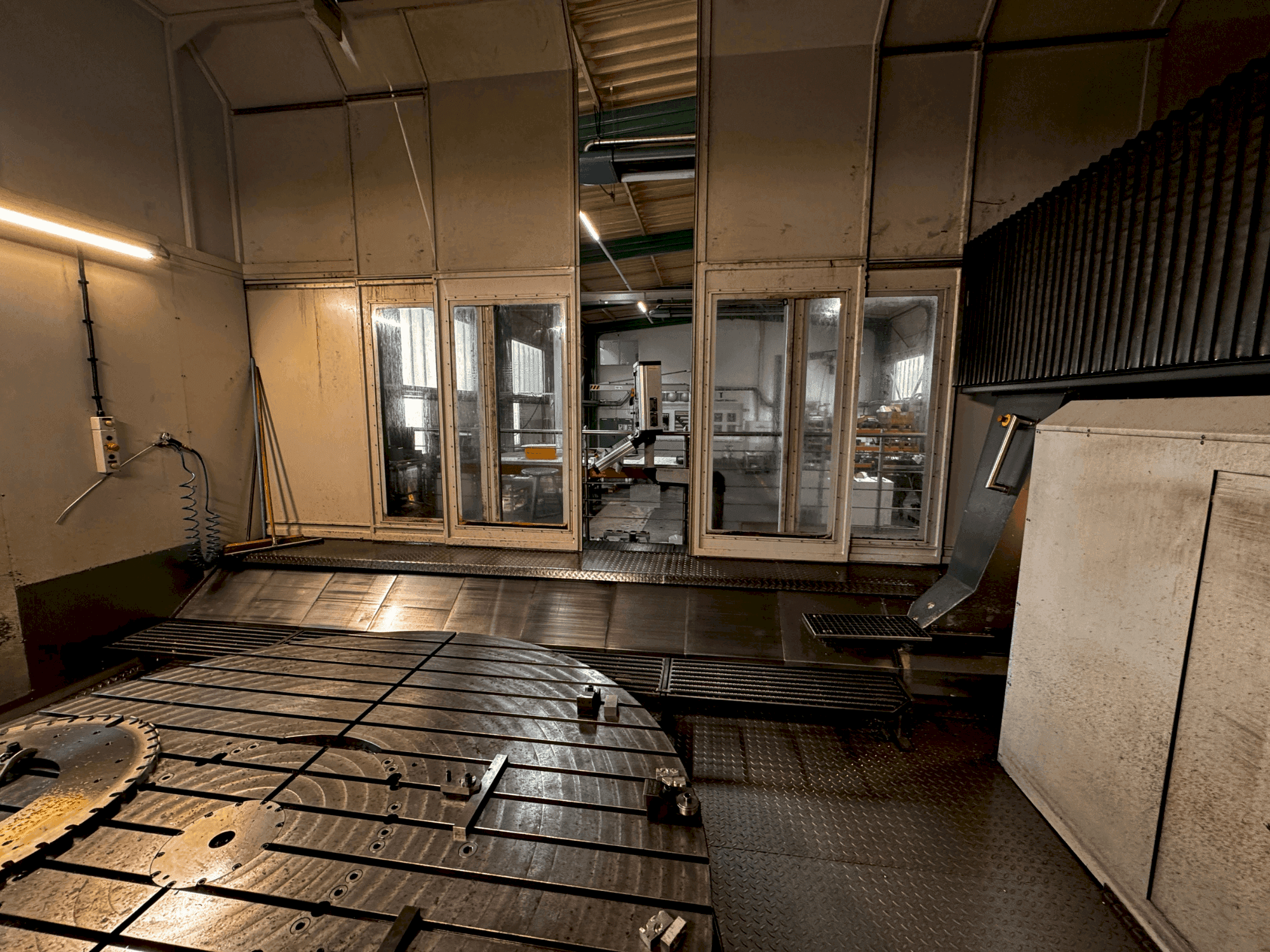

AXA - VPC 2800-UDE-MIL-AXA-2013-00001

Additional equipment

• Operating mode 3
• RMP 60 3D measuring probes, Renishaw
• 2 handguns
• Work area lights
• HR 410 electric handwheel, Heidenhain
• Collision monitoring system, type: CMS, Brankamp

Machine Benefits

Technical Machine Benefits

• Connection voltage: 3x400v/230v/n/pe 50hz // control voltage: 24 v
• Max. Back-up fuse: 160 a
• Spindle design: hollow shaft motor, water-cooled
• Max. Torque at 100% duty cycle: 200. 5 nm
• Nominal speed: 3000 rpm
• Rotary table: rta8 - 2800
• Table diameter with vertical rotation axis: 2800 mm
• Max. Transport load with vertical axis of rotation: 18000 kg
• Max. Axial force with vertical axis of rotation: 300000 n
• Max. Clamping pressure for hydraulic clamping: 63 bar

Extra Information

Machine still under power // The machine has 32 tool positions and is prepared for an additional 32, with SK 50. It has approximately 37,000 operating hours, so we can take a closer look. The NC rotary table has a diameter of 28,000 mm and a load capacity of 15 t. The main spindle has a maximum torque of 200 Nm and 55 kW. /The Axa has linear guides, which were replaced in 2022. with spindle cooling, glass scales, tool calibration.
