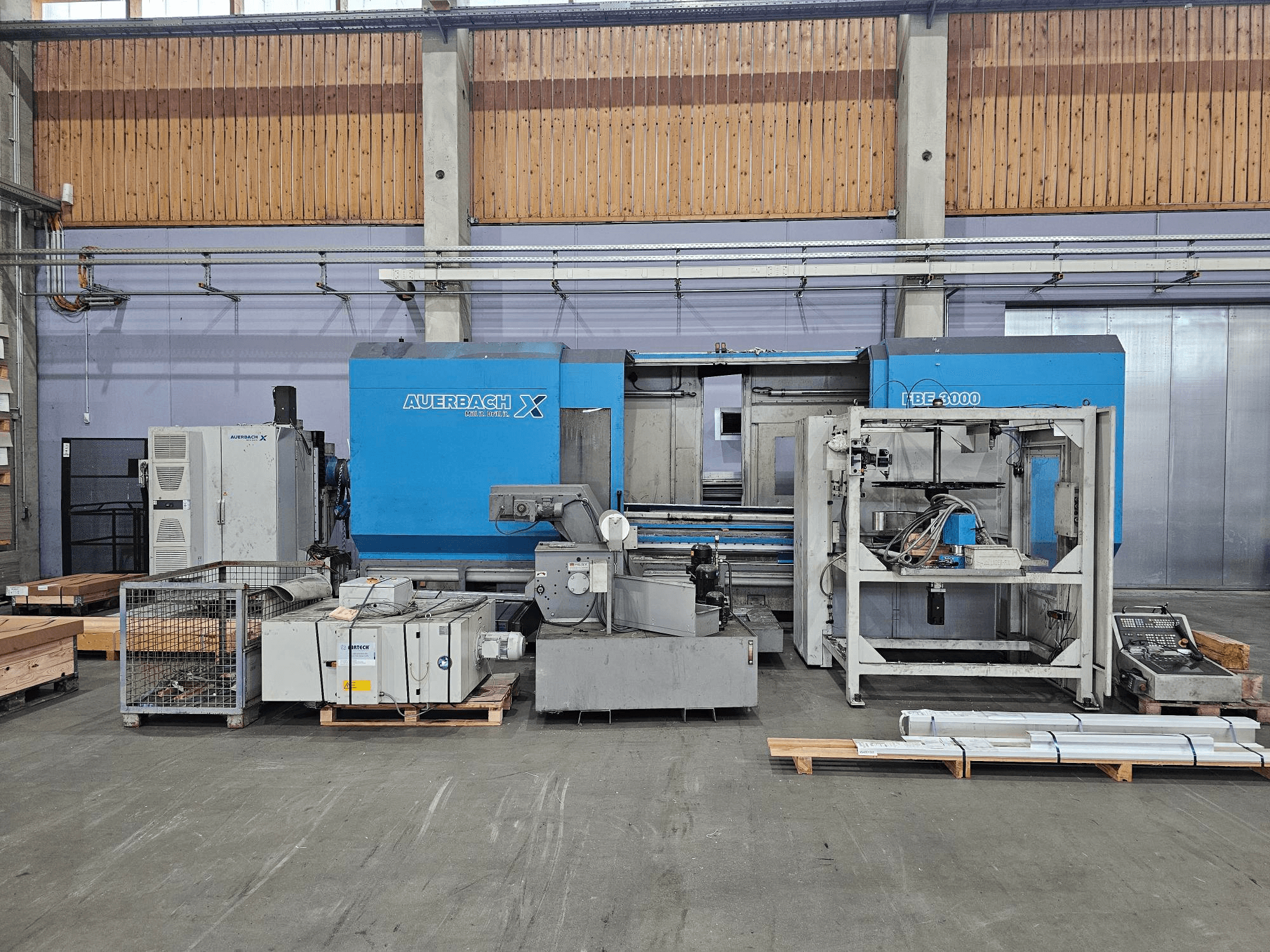

Auerbach - FBE 3000DE-MIL-AUE-2011-00001

Guides and travels

• Flat guides on all 3 axes, coated with synthetic material

• Distance spindle center to table surface: 98–998 mm

Milling spindle

• Multi-position milling head KFM 1

• Tool holder: SK 50 (DIN 69871 Form A, DIN 69872 Form A)

• Drawbolt tightening torque: 175–180 Nm

• Nominal drive power (continuous, two ranges): 25 kW

• Speed range 1: up to 930

• Speed range 2: up to 4000

• Max. torque: 800 Nm

• Gear ratio: 1:5.6

Table (workpiece side)

• Clamping surface: 3100 × 800 mm

• T-slots: 7 × 18 H12

• Alignment slot: 1 × 18 H8 mm

• Slot spacing: 100 mm

Feed drives and measuring

• Max. feed force Z: 30,000 N

• Max. feed force X/Y: 20,000 N

• Feed speed: 1–10 m/min

• Rapid traverse: 15 m/min

• Measuring systems: Direct coded length measuring systems

Hydraulics

• Operating pressure: 100 bar
