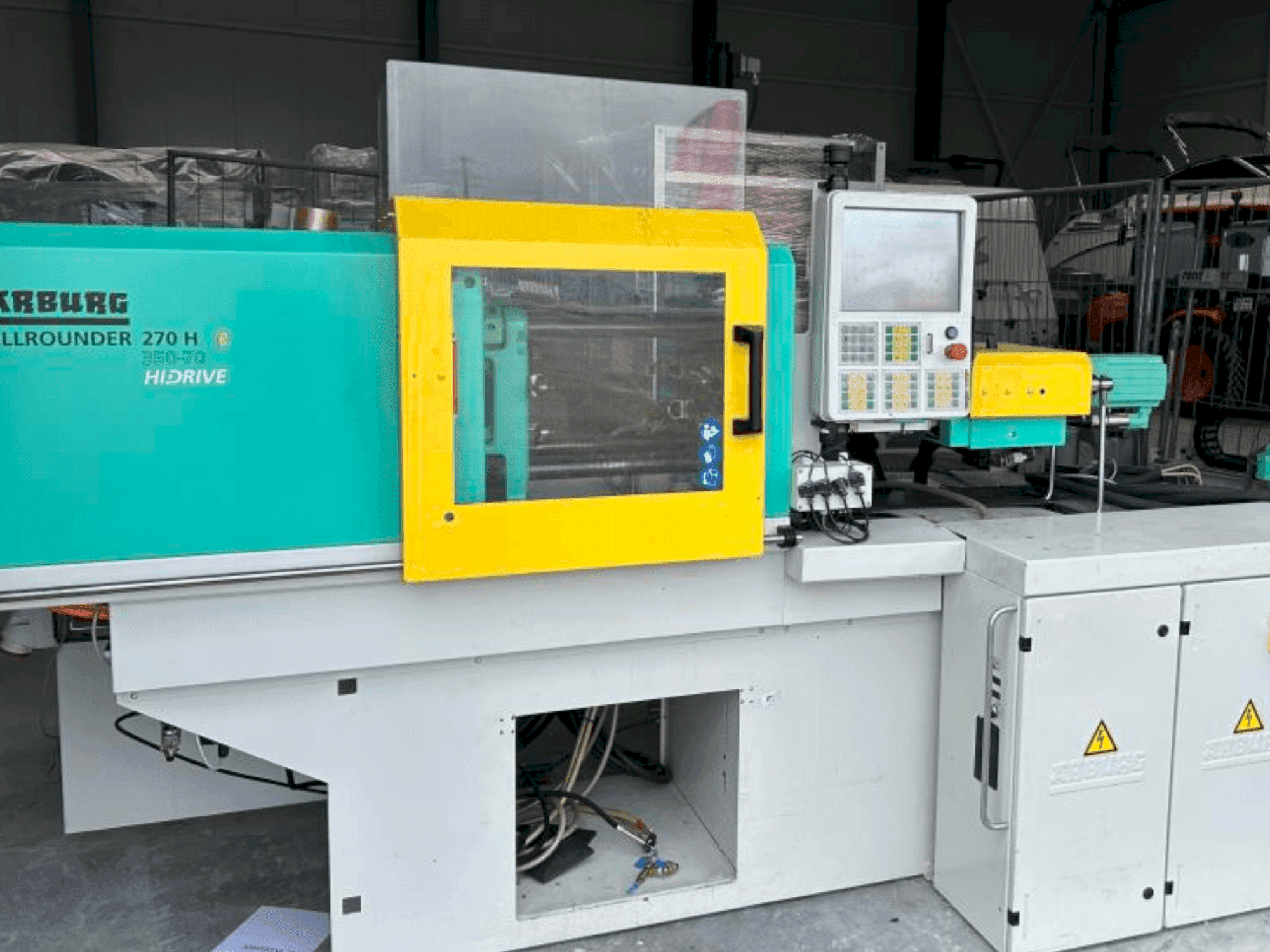

Arburg - Allrounder 270 H 350-70DE-INJ-ARB-2011-00010

Additional equipment

• Machine handling is included.

Machine Benefits

Technical Machine Benefits

• Operating voltage: 400 v
• Control voltage: 230 v
• Total rated current: 70 a
• Total connected load: 43 kw
• Screw torque: 250 nm
• Injection flow: 312 bar
• Nozzle lift-off stroke: 210 mm
• Nozzle contact force: 50 kn

Extra Information

EUROMAP size specification 350-70/ Clamping unit: Clamping force 350 kN/ Mold retention force 0.5-40 kN/ Opening stroke 200 mm/ Mold installation height 150-350 mm/ Distance between clamping platens 350-550 mm/ Inter-tie bar spacing 270 x 270 mm/ Mold clamping platens (w x h) 380 x 380 mm/ Weight of moving tool half 200 kg/ Ejector force 16 kN/ Ejector stroke 60 mm/ Hydraulics, drive, other: Hydraulic pump drive power 3 kW/ Dry run time during opening stroke" Total installed power 0.7-189 s-mm/ Control cabinet: Safety regulations DIN EN 60204/ Socket combination (1 Schuko, 1 Cekon) 1x16 A/ Injection unit: Screw diameter 18 mm/ Effective screw length 24.5 L/D/ Screw travel 90 mm/ Calculated stroke 23 cm/ Shot weight 21 g PS/ Material throughput 4.1 kg/h/ Injection pressure 2500 bar/ Injection flow with accumulator 138 cm/ Back pressure positive/negative 350 bar/ Screw circumferential speed 49 m/min/ Screw torque 90 Nm/ Nozzle contact force 50 kN/ Nozzle lift-off stroke 150 mm/ Installed cylinder heating power / heating zones 3.75 kW/ Installed nozzle heating power 0.3 kW/ Granule hopper capacity 25 l/ Dimensions and weights of the base machine: Oil tank 115 l/ Net weight 2300 kg/ Electrical connection (pre-fuse) motor 50 A
