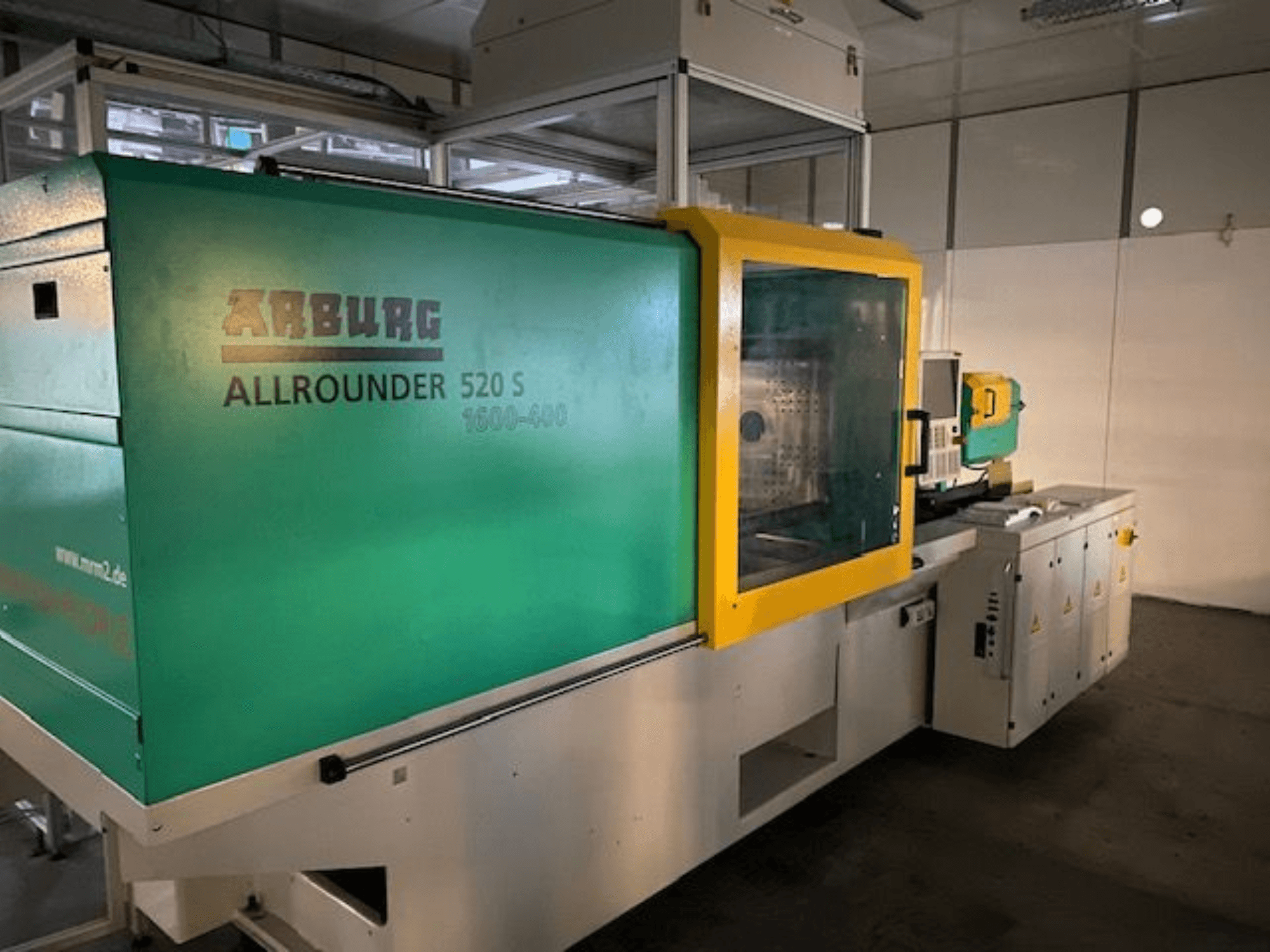

Arburg - 520S-1500-400DE-INJ-ARB-2016-00007

• Programmable and controlled build-up of clamping force

• Extended clamping program with 2 stages

• Hydraulic, servo-controlled ejector on moving platen

• Injection/plasticizing unit:

  • Screw diameter: 45 mm (without nozzle)

  • High wear-resistant version

  • Sinter-metal check ring

  • CrN coating on screw and check ring

  • Suitable for abrasive, corrosive, and high-temperature thermoplastics

• Technology level 2 – servo-controlled, dual-circuit pump system:

  • Two regulated hydraulic pumps for precise, parallel movements

  • Programmable nozzle contact force and holding pressure

  • Continuous oil circulation with additional cooling and filtration

• SELOGICA direct control system:

  • Touchscreen operation with process editor

  • 15-inch (38.1 cm) display

  • Multilingual interface (German, English, local language)

• Heating capacity zones 1–6: 3.6 kW each (230 V / 16 A)

• Cylinder heating temperature up to 450 °C

• Connectivity/interfaces:

  • OPC UA interface (MES/host computer connection)

  • USB and CompactFlash interfaces for data storage

  • EUROMAP 67 robot interface

  • Prepared for ARBURG MULTILIFT robot system

• Utilities:

  • Pneumatic supply with pressure regulator

  • Cooling water distribution with adjustable circuits and flow indicators

  • 400 V / 50 Hz, with neutral conductor

• Hours: 9,171

Additional equipment

• None included in the listing

• Note: Machine is prepared for robot integration (EUROMAP 67 interface; prepared for ARBURG MULTILIFT), but no robot/automation is included.
