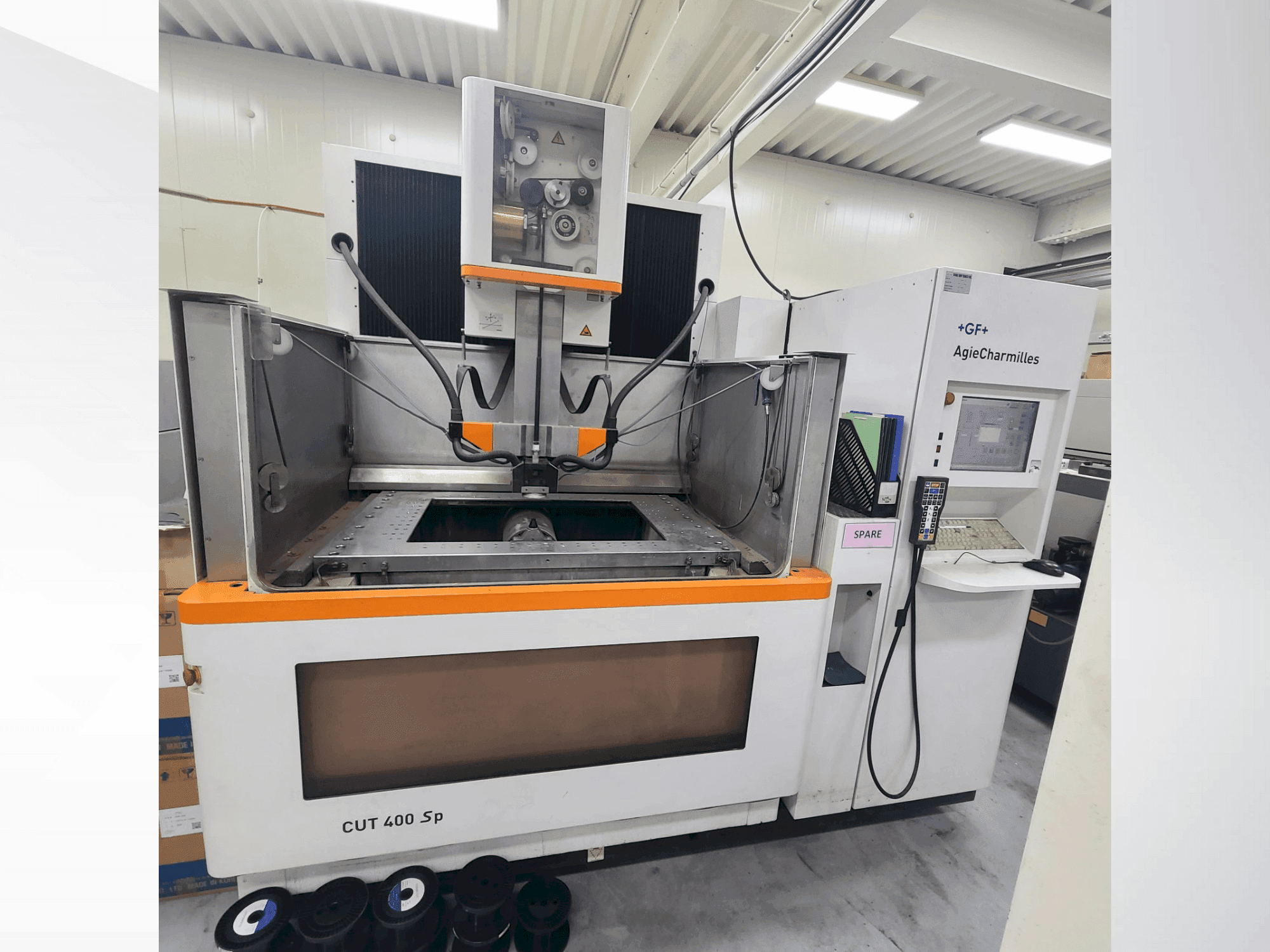

This 5-axis AGIE CUT 400 Sp wire EDM machine was manufactured in 2013. It features a high-speed CC generator, automatic threading, and rethreading for wires from 0.30 to 0.20 mm. The machine includes a PC-based control system with a touchscreen and offers advanced NC functions like 3D graphic simulation and integrated documentation. If you are looking to get high-quality EDM capabilities, consider the AGIE CUT 400 Sp machine we have for sale. Contact us for more information.
Übersicht
- Hersteller: AGIE
- jahr: 2013
- MODELL: CUT 400 Sp
- anwendungstyp: Erodieren
- Standort: Südkorea
- maschinentyp: Drahterodiermaschine
Technische Daten - AGIE CUT 400 Sp
Bewegung
- Anzahl der Achsen: 5
Zusätzliche Informationen
Additional equipment
- Programmable Wire Tension: 0.3 to 3 daN / Automatic Threading and Rethreading for Wire: 0.30 to 0.20 mm
- Large Spools: Weight 25 kg (K250)
- NC Functions: File Management, AC CAM EASY, EDM-EXPERT, OPERATIONS ORGANIZER, Fast Measuring Cycles, 3D Graphic Simulation, Integrated Documentation, PART EXPRESS, Job List, SURFACE-EXPERT, POWER-EXPERT, PROFIL-EXPERT
- Options: TAPER-EXPERT, e-Connect, e-Supervision, e-Control / Extended Taper Cutting: From 30° to 45° / Used Wire Processing: Wire Chopper
- Rotating Axes: Index or Servo-Control / Automatic Part Leveling: 3D SET UP / Optical Measuring System: OMS / 3D Probing: Renishaw Probe
Machine Benefits
Technical Machine Benefits
- Max. Cutting speed: 400 mm²/min
- Min. Finishing: 0. 2 µm ra
- Control unit: architecture: pc multiprocessors / operating system: windows / screen: lcd 15'' tft / data input: touchscreen / part program capacity: 4 mb / position measurement system / measurement resolution: linear glass scales / 0. 050 µm
- Type of wire guides: closed diamond type without clearance / wire circuit / wire diameters available: 0. 30 to 0. 20 mm
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
