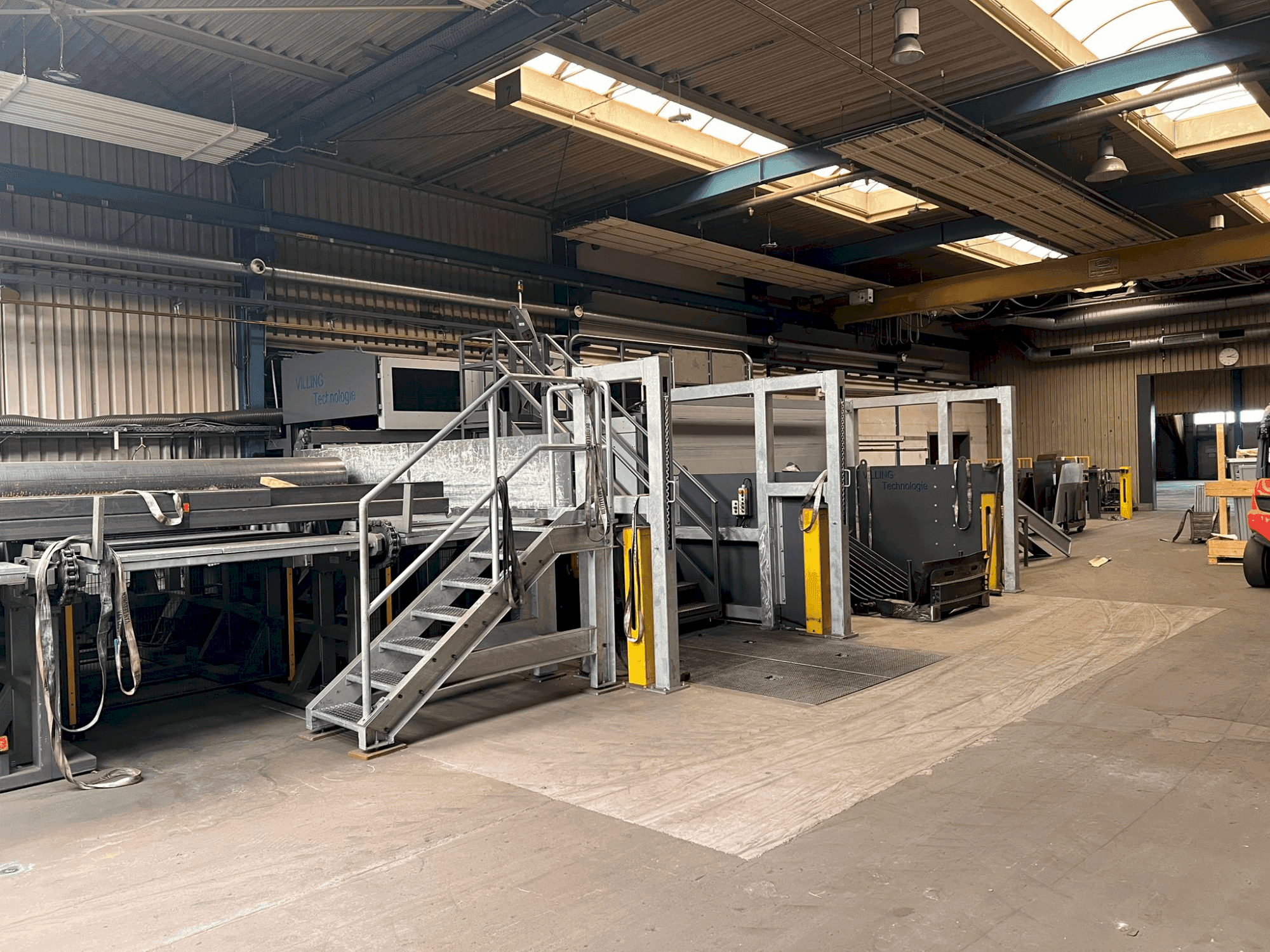

ADIGE - LT 20DE-CUT-ADI-2015-00001

Additional equipment

• 5-axis CNC-controlled 3D tube laser cutting system
• Protective cabin and safety fence
• Tube loading station with single chain (double chain) L 14000 mm
• Disposition for 18 m loader
• Prefabricated part unloading station with single chain in basic version L 14000 mm
• Cutting waste collection container and conveyor chain for fully automatic removal
• Artube CAD 3D software with Artube CAD and CAM software modules
• JUMBO Loader and Unloader Extensions and accessories
• Renishaw LP2 Probe Module
• Fine dust filter and extraction system

Machine Benefits

Technical Machine Benefits

• Fully automatic settings with manual options
• Integration with rofin sinar dc035 laser source without compensator
• Indoor cooling unit installation with a closed circuit for laser source
• Maximum wall thickness: 16 mm in 3d cutting for steel pipes
• Maximum weight: 200 kg per meter
• Machinable bar lengths: from 4000 mm to 14000 mm
• Longer unloading length parts: from 3000 mm or up to 18000 mm
• Unloading of long parts: 3000 - 18000 mm through fully automatic front unloading station
• Unloading length of short parts: up to 3000 mm through a fully automatic front discharge station with finished part buffer

Extra Information

Tools Laser source power: 3500 W Cutting methods: 2D and 3D up to a maximum of 45 degrees Pipe measuring methods: Torsion, centering, precise location of reference machining using RENISHAW probe and measuring software
