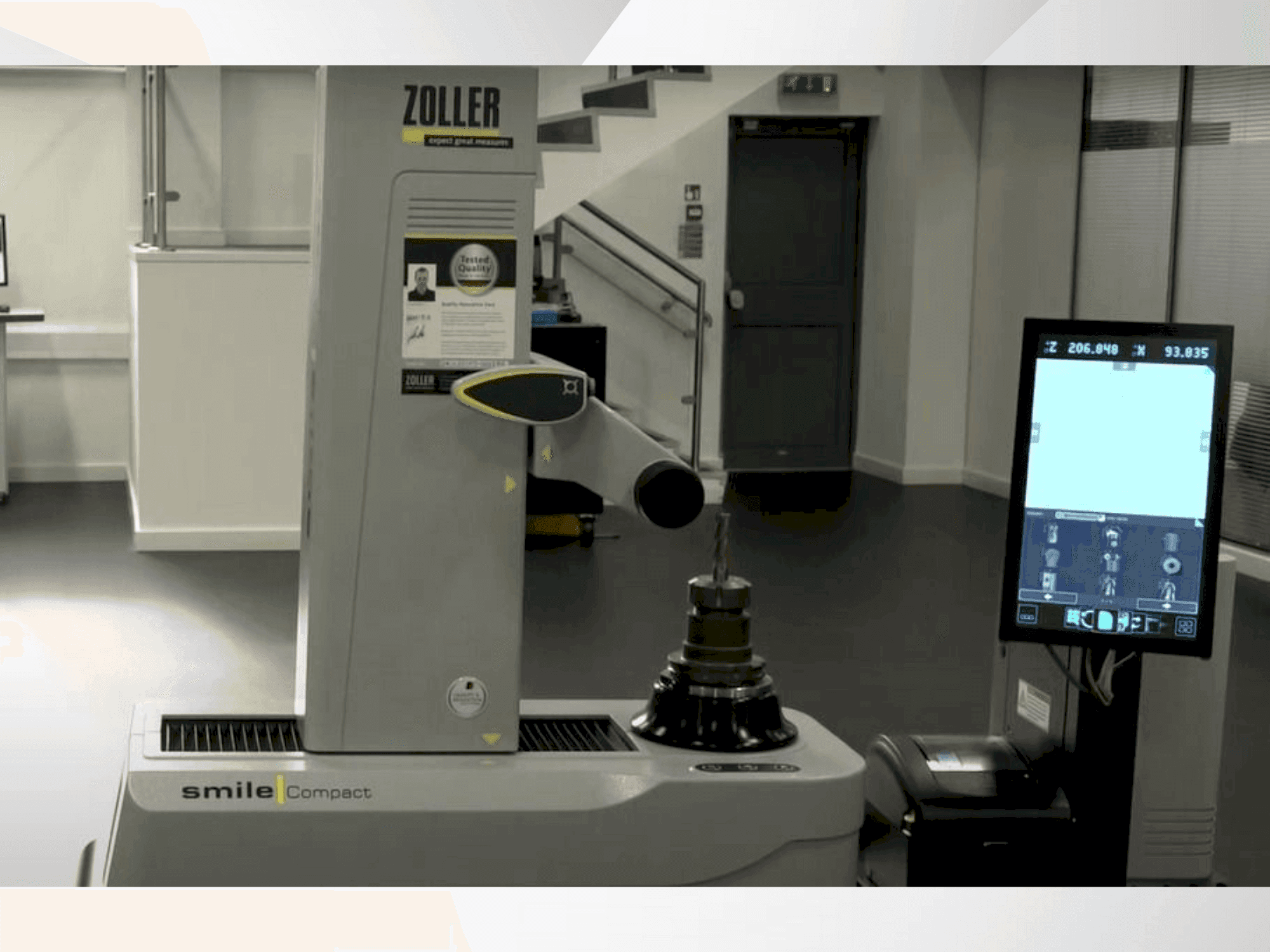

Zoller - Smile Pilot 4.0EG-OTH-ZOL-2024-00001

Additional equipment

• Tool Presetter and Measuring Machine: Design according to brochure and technical description.
• Adapter SK 50/SK 40: Data sheet 20.4.1
• Adapter SK 50/HSK A63-F80: HSK-T/ICTM compliant.
• Adapter SK 50/VDI 30 DIN 69880: Data sheet 20.4.12
• Adapter SK 50/VDI 40 Driven Tools: Data sheet 20.4.12
• Tool Insert SK 50: Data sheet WZV0302
• Package includes a machine table, a 3-row adapter tray, and a thermal label printer.
• Features a wooden and seaworthy packaging.
• Language Dialog: English / User Manual: English / Keyboard: Arabic

Machine Benefits

Technical Machine Benefits

• Max tool length z: 600 mm / max tool diameter d: 420 mm / snap gauge d: 100 mm
• Cnc control: for fully automatic axes movement in z and x direction for user-independent, fast, and safe measuring processes.
• Centre height measuring device camera: incident light camera with led lights for measuring and setting the centre height at turning tools.
• Measuring machine control »pilot 4. 0«: with 24" display. Operating system: windows 10 64-bit.
• Rotary spindle encoder (rod): for high-precision determination of the position in the c axis.
• Power supply voltage: 230 v germany
• Spindle: high precision spindle »iso 50«, concentricity 0. 002 mm. Includes spindle brake, 4x 90° spindle indexing, integrated calibration spheres.
• Mounting arm for monitor.
