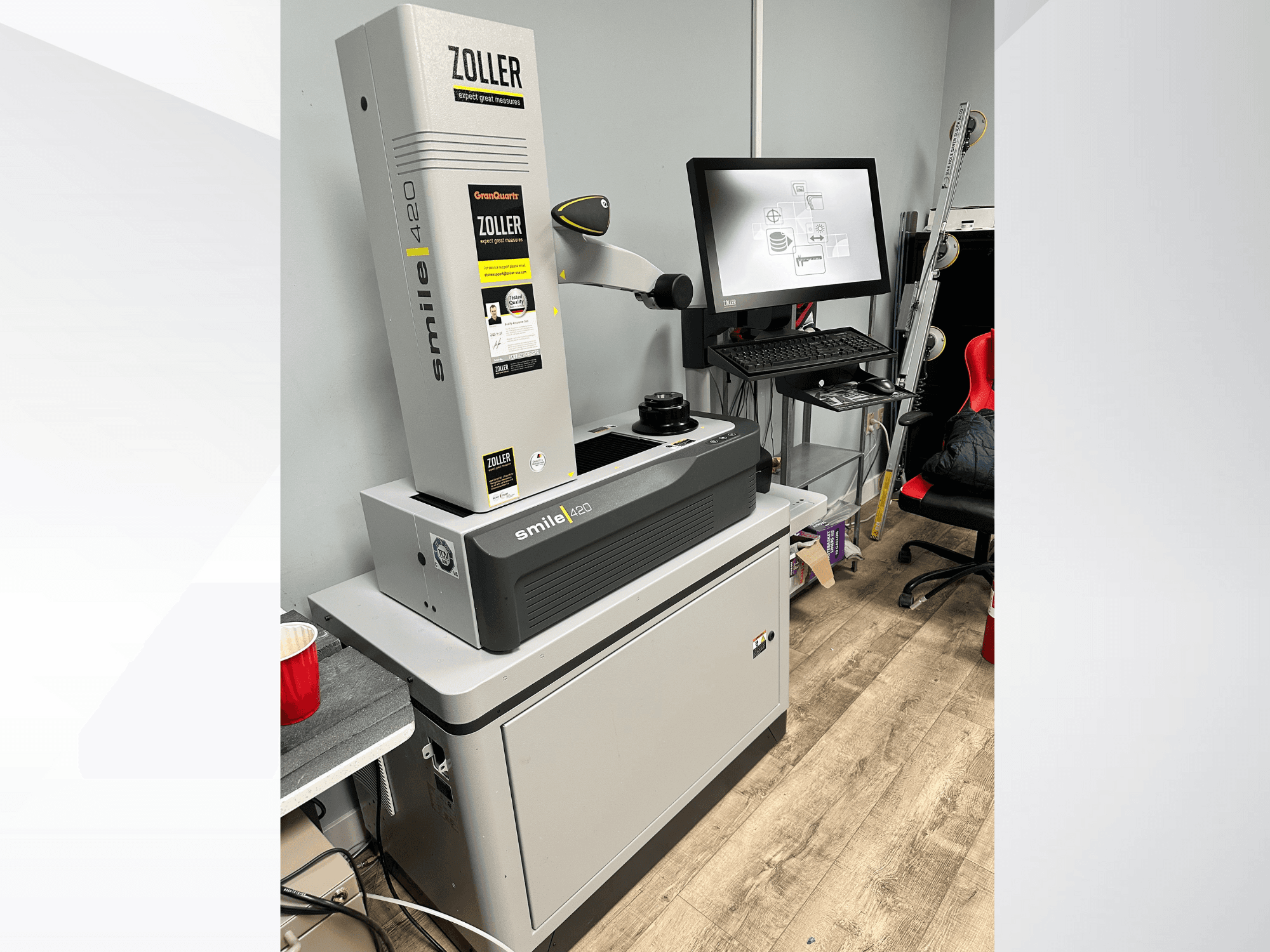

This Zoller Smile 420 was manufactured in 2023. It features image processing technology with a Z-axis length of 400 mm and an X-axis radius of 200 mm. The machine supports a maximum diameter of Ø400 mm and requires a compressed air pressure of 4–6 bar. Ideal for precise optical measurements, consider the opportunity to buy this Zoller Smile 420 optical measurement machine. Contact us for more information about this machine.
Übersicht
- Hersteller: Zoller
- jahr: 2023
- MODELL: Smile 420
- anwendungstyp: Messung
- Standort: Großbritannien
- maschinentyp: Optisches Messgerät
Technische Daten - Zoller Smile 420
Maße
- Maschinengewicht: 175 kg
Zusätzliche Informationen
Measuring system: Image processing technology Pilot 1.0
Z-axis length: 400 mm
X-axis radius: 200 mm
Diameter D: Ø400 mm
Snap gauge D1: Ø100 mm
Concentricity: 2 µm
Setting accuracy: 2 µm
Display accuracy: 1 µm
Repeating accuracy: 2 µm
Compressed Air Required pressure: 4–6 bar, dry and slightly lubricated
Electrical Data:
Voltage: 115–230 V
Frequency: 50/60 Hz ±2%
Power consumption: 230 VA
Power input: 1000–2000 mA
Fuse: F6A (slow)
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
