WINTER - TTM 1100DE-SAW-WIN-2020-00001

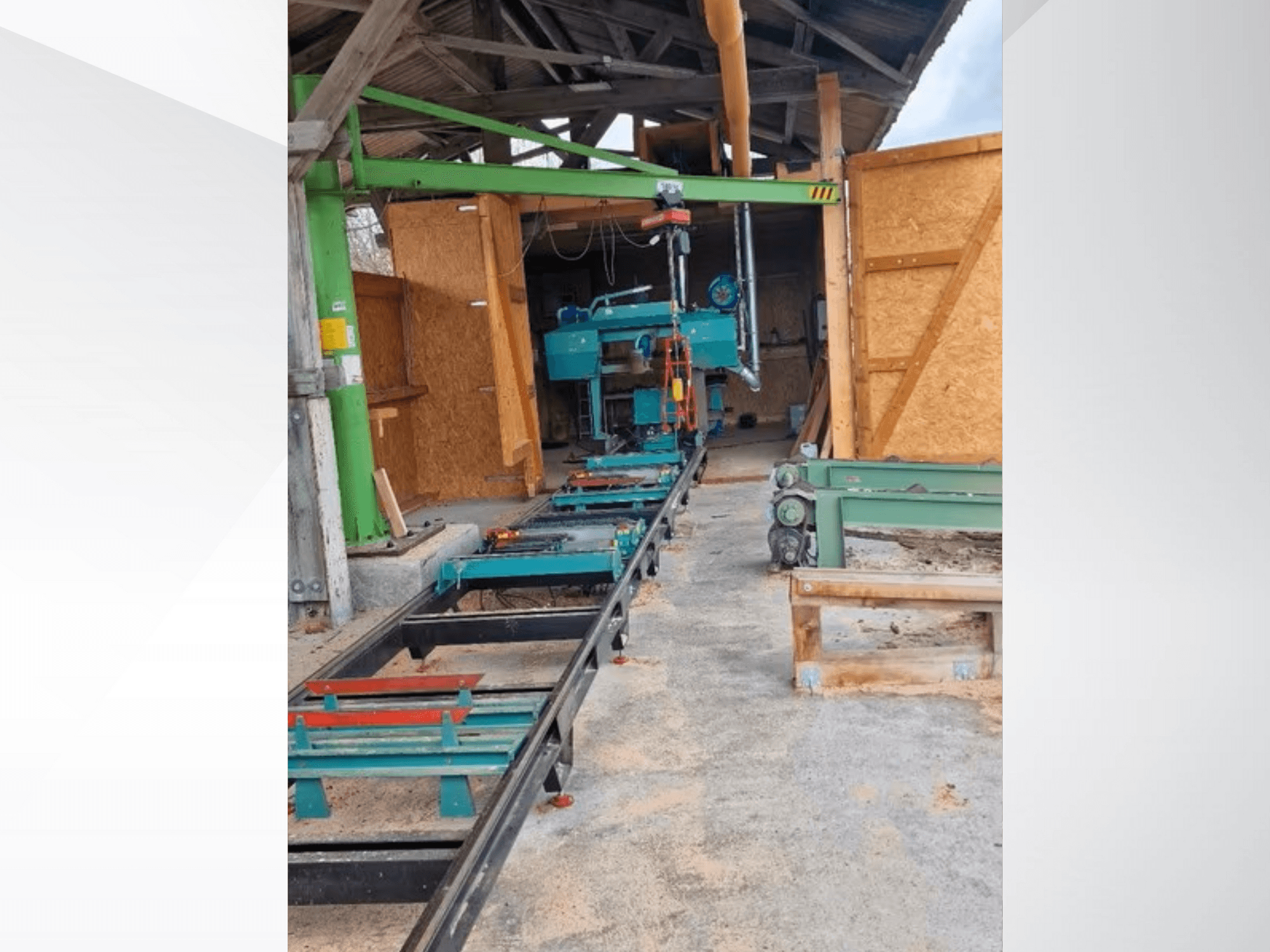

• Log band sawmill

  • Brand/Type: Winter TTM 1100

  • Max log diameter: 1100 mm

  • Max cutting length: 10 m

  • Rail length: 12 m (2 x 6.0 m)

  • Drives: Main 15 kW; Horizontal feed 1.10 kW; Vertical feed 1.10 kW; Roller feed 0.18 kW

  • Voltage: 400 V / 50 Hz

  • Saw head: Electrically adjustable

  • Feed speeds: Forward 1.5–20 m/min; Reverse 5.0–40 m/min; Up/down 20 mm/s

  • Saw blade dimensions: Length 4.80–4.90 m; Width 35–38 mm; Thickness 1.1–1.2 mm; Tooth pitch 22 mm

  • Saw unit dimensions (W x L x H): 2400 x 1700 x 1700 mm

  • Weights: Saw unit 950 kg; Rail 700 kg; Rail accessories 300 kg; Total 1950 kg

  • Line dimensions (L x W x H): 13.0 m x 1.7 m x 1.7 m

• Double edger

  • Brand/Type: Winter DS 160 Deluxe

  • Max cutting height: 160 mm

  • Max passage width: 980 mm

  • Number of saw blades: up to 15

  • Saw blade diameter: 450 mm

  • Saw shaft diameter: 75 mm

  • Saw blade bore: 75 mm with keyway

  • Feed speed: 0–30 m/min (adjustable)

  • Saw shaft motor: 37.0 kW

  • Total connected load: 40.5 kW

  • Voltage: 400 V / 50 Hz

  • CE conformity: Yes

  • Dimensions (L x W): 3500 x 1950 mm

  • Weight: 2500 kg

• Sharpening machine for band saw blades

  • Brand/Type: Winter OWM-4A

  • Work sequence: Automatic, programmable tooth counter with auto shut-off

  • Saw blade length: 3–5 m

  • Tooth height ranges: Triangular tooth 4–12 mm; Wood-Mizer profile 7–20 mm; Broken tooth 4–7 mm

  • Tooth spacing: 5–30 mm

  • Feed speed: 40 teeth/min (60 teeth/min on request)

  • Motors: Grinding wheel 0.18 kW, 400 V / 2800 rpm; Feed 0.15 kW, 380 V / 900 rpm

  • Grinding wheel: OD 150 mm x 8 mm; ID 13 mm or 20 mm

  • Dimensions (L x W x H): 0.70 x 1.0 x 1.30 m

  • Weight: 115 kg

• Tooth setting machine

  • Brand/Type: Winter RWM

  • Max tooth setting per side: up to 1 mm

  • Setting accuracy: ±0.05 mm

  • Speed: up to 70 teeth/min

  • Band width: 15–100 mm

  • Tooth pitch (scale): 8–50 mm

  • Tooth height: 5–15 mm

  • Band thickness: up to 1.2 mm

  • Weight: 35 kg

• Wood excavator

  • Brand/Type: Atlas 1304

  • Condition/maintenance: All hoses replaced; drive motor newly installed

Additional equipment

• For log band sawmill (Winter TTM 1100):

  • Operator seat

  • Turning rollers

  • Log clamp

  • Log supports

  • Sighting ruler

  • Circular scale

  • Hydraulic system

• For double edger (Winter DS 160 Deluxe):

  • Chip discharge belt

• For tooth setting machine (Winter RWM):

  • Base frame

• For wood excavator (Atlas 1304):

  • Wood grapple (main)

  • Two slewing cranes, 500 kg each

  • Custom-made crown grapple for heavy block goods, load capacity 250 kg

  • Wood grapple for slewing crane
