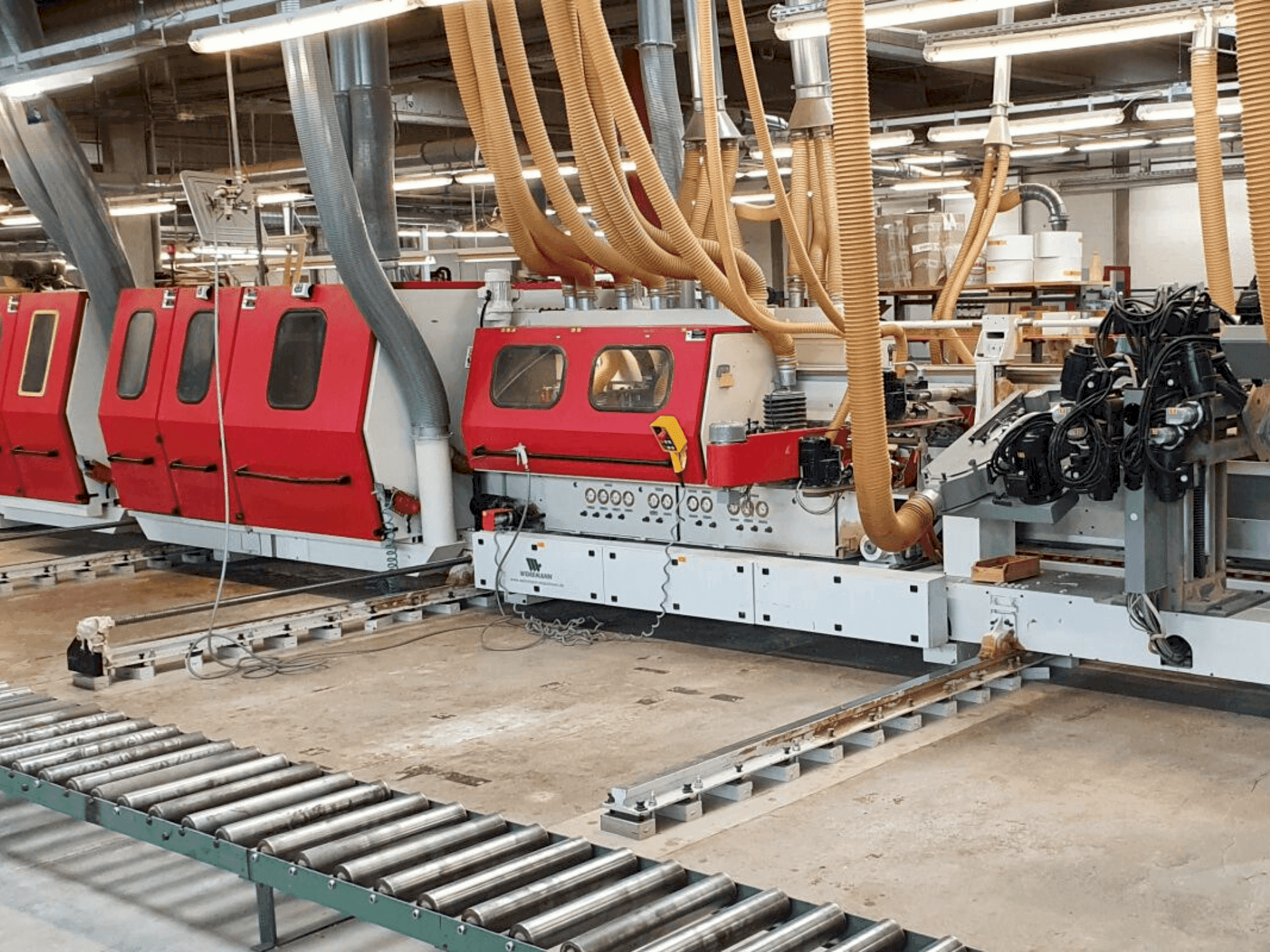

WEHRMANN - CombimaDE-WOO-WEH-2007-00002

Additional equipment

• Milling units: Two controllable, non-pivotable milling units with motors of 6.6 kW each, capable of vertical and horizontal adjustments via electric axis.
• Double hogger unit: Upper and lower hogger motors each 4.4 kW, with horizontal and vertical adjustment.
• Profile/milling units: Three controllable, pivotable units with motors of 4.4 kW each, capable of comprehensive adjustments including swivel.
• Radius milling units: Three units with upper and lower motors of 660 W each, approximately 25 degrees pivotable.
• Edge sanding unit: For grinding vertical workpiece edges, oscillating, with a maximum workpiece height of approximately 80 mm.
• Profile sanding units: Multiple units for grinding small profiles, with motors of 0.55 kW and 1.1/1.8 kW.
• Suction sluice with blow nozzle.
• Extension device approximately 700 mm long.

Machine Benefits

Qualitative Machine Benefits

• High-quality construction and robust design ensure durability and consistent performance.
• Advanced sanding technology from heesemann ensures superior surface finish and detail in profiling.
• Equipped with low-maintenance precision roller transport chains for reliable and smooth operation.

Technical Machine Benefits

• Double end tenoner for massive wood panels
• Versatile processing capabilities with multiple milling, sanding, and profiling units, allowing for comprehensive treatment of wood panels.
• Nc controlled for precise adjustments and operations, enhancing the quality and efficiency of production.
• Modular equipment setup provides flexibility in configuring the machine for specific production requirements.
• Working width: maximum of approximately 2,500 mm and minimum of approximately 280 mm.
• Machine control via a fast pentium computer with a touchscreen display and integrated programming software, providing a user-friendly interface and efficient management of operations.

Extra Information

Machine control via a fast Pentium computer with a touchscreen display and integrated programming software, providing a user-friendly interface and efficient management of operations.
