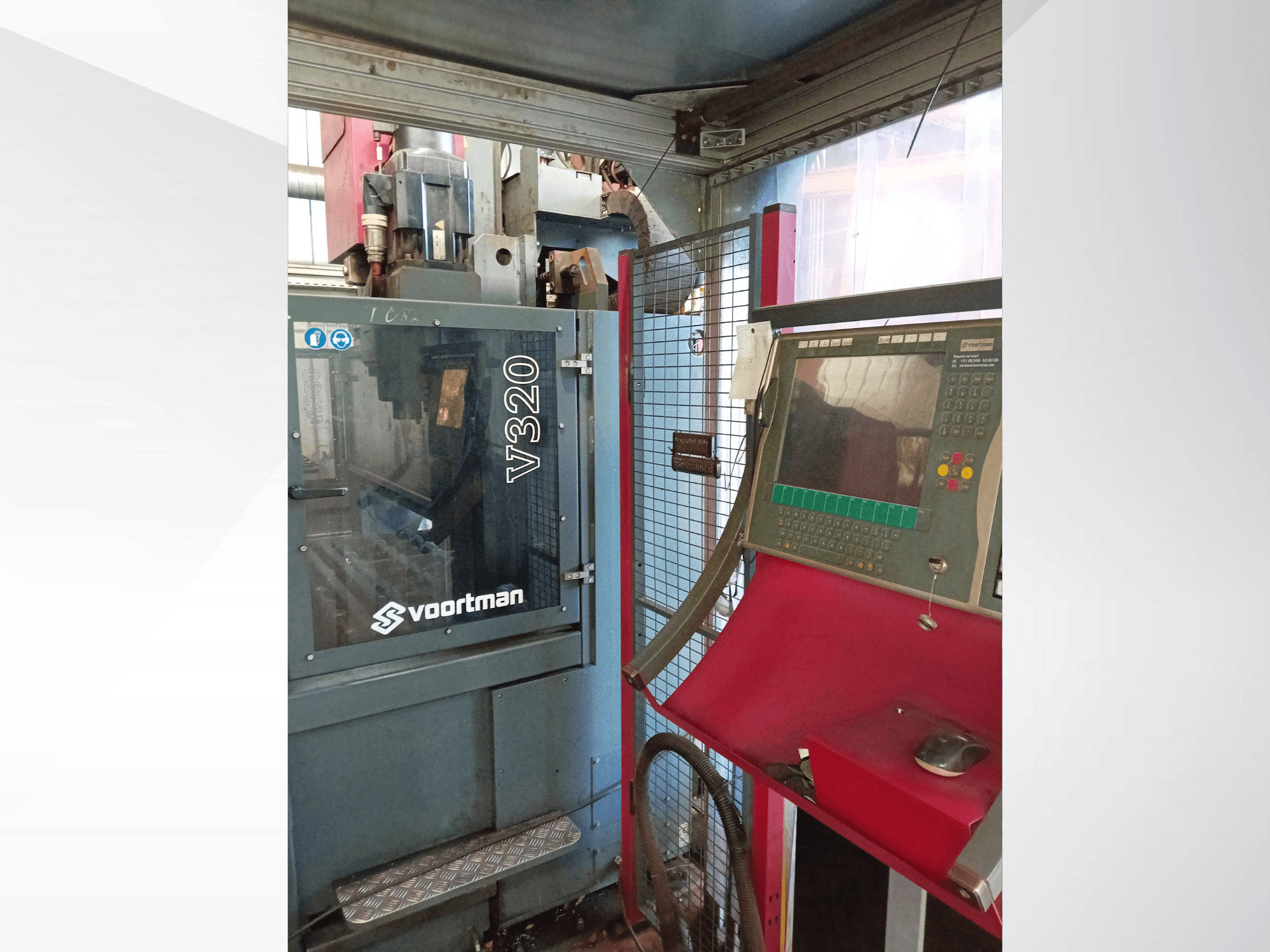

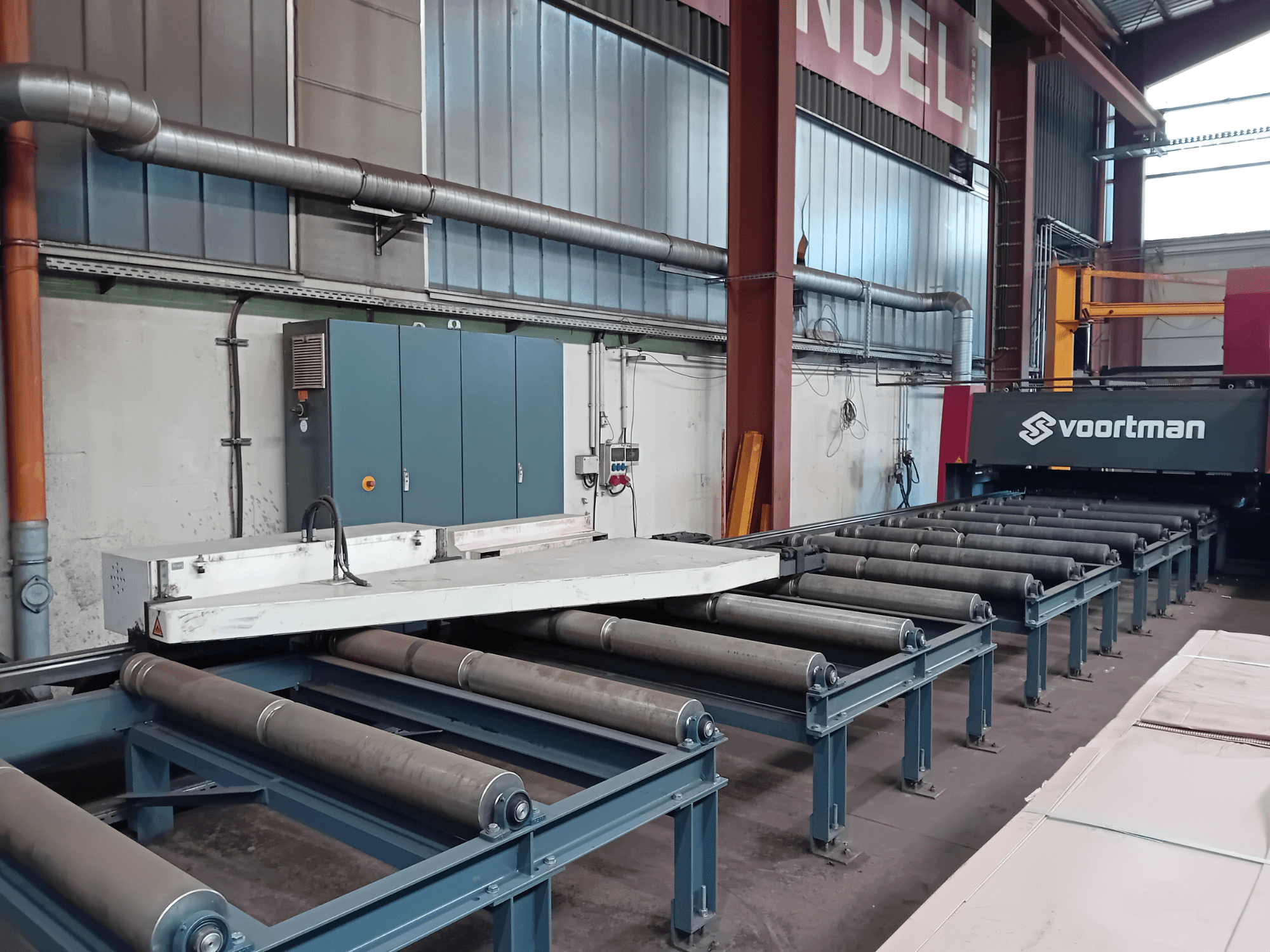

VOORTMAN - V320DE-CUT-VOO-2019-00001

• Workpiece size

  • Min./max. panel length: 850 – 6,100 mm

  • Min./max. panel width: 200 – 2,050 mm

  • Min./max. panel thickness: 6 – 75 mm

• Drilling unit: VD40

  • Mounting: SK 40

  • Axis speed: 0 – 2,500 rpm (continuously variable, servo motor)

  • Drill diameter: 5 – 40 mm

  • Threading: M6 – M30

  • Countersinking: Yes

  • Punch marking option: Yes

  • Layout marking option (optional): Yes

  • Automatic tool changer: 2 x VTC 5/40 (2 x 5 positions)

  • Lubrication/cooling: Internal cooling, air/oil

  • Hydraulic mounting: Yes

  • Rated load: 30 kW

• Feeding and positioning: Synchronously driven servo motors, servo converter

• Cutting – Plasma (Smart Focus 300)

  • Min./max. thickness: 3 – 80 mm

  • Max. piercing capacity: 40 mm

  • Virtually slag-free cutting: up to 35 mm

  • Marking: Yes, with the same consumables

  • Gases:

    • Plasma gas for cutting mild steel: O2 (99.9% pure, clean, dry, oil-free)

    • Shielding gas for mild steel: O2 / Air (99.9% pure, clean, dry, oil-free)

    • Marking gas: Argon; for >200 A, nitrogen

  • Automatic gas console: Yes

  • Automatic height adjustment: Yes

  • Ignition: Automatic

  • Cutting speed (mild steel):

    • 6 mm: approx. 3,700 mm/min @ 90 A

    • 12 mm: approx. 3,600 mm/min @ 200 A

    • 25 mm: approx. 1,600 mm/min @ 300 A

    • 40 mm: approx. 720 mm/min @ 300 A

    • 50 mm: approx. 400 mm/min @ 300 A

    • 80 mm: approx. 100 mm/min @ 300 A

• Cutting – Oxy-fuel (oxygen cutting unit)

  • Nozzle type: Nozzle-mix

  • Automatic height adjustment: Yes

  • Gas supply: Magnetic valve with non-return valve

  • Fuel gas: Propane (optional: Acetylene)

  • Cutting gas: O2

  • Max. thickness: 75 mm

• General/installation

  • Working direction: Left to right

  • Working height: 760 mm (+/- 25 mm)

  • Ambient temperature: -10°C to +35°C, max. 95% relative humidity

  • Voltage regulator: Not included

  • Current transformer: Not included

Additional equipment

• Kjellberg Smart Focus 300 plasma source (included)

• Donaldson DFPR06 extraction system (included; last filter change January 2025)
