UNION - BFT 110 NCDE-OTH-UNI-1992-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- ➤ Used UNION BFT 110 NC For Sale | gindumac.com

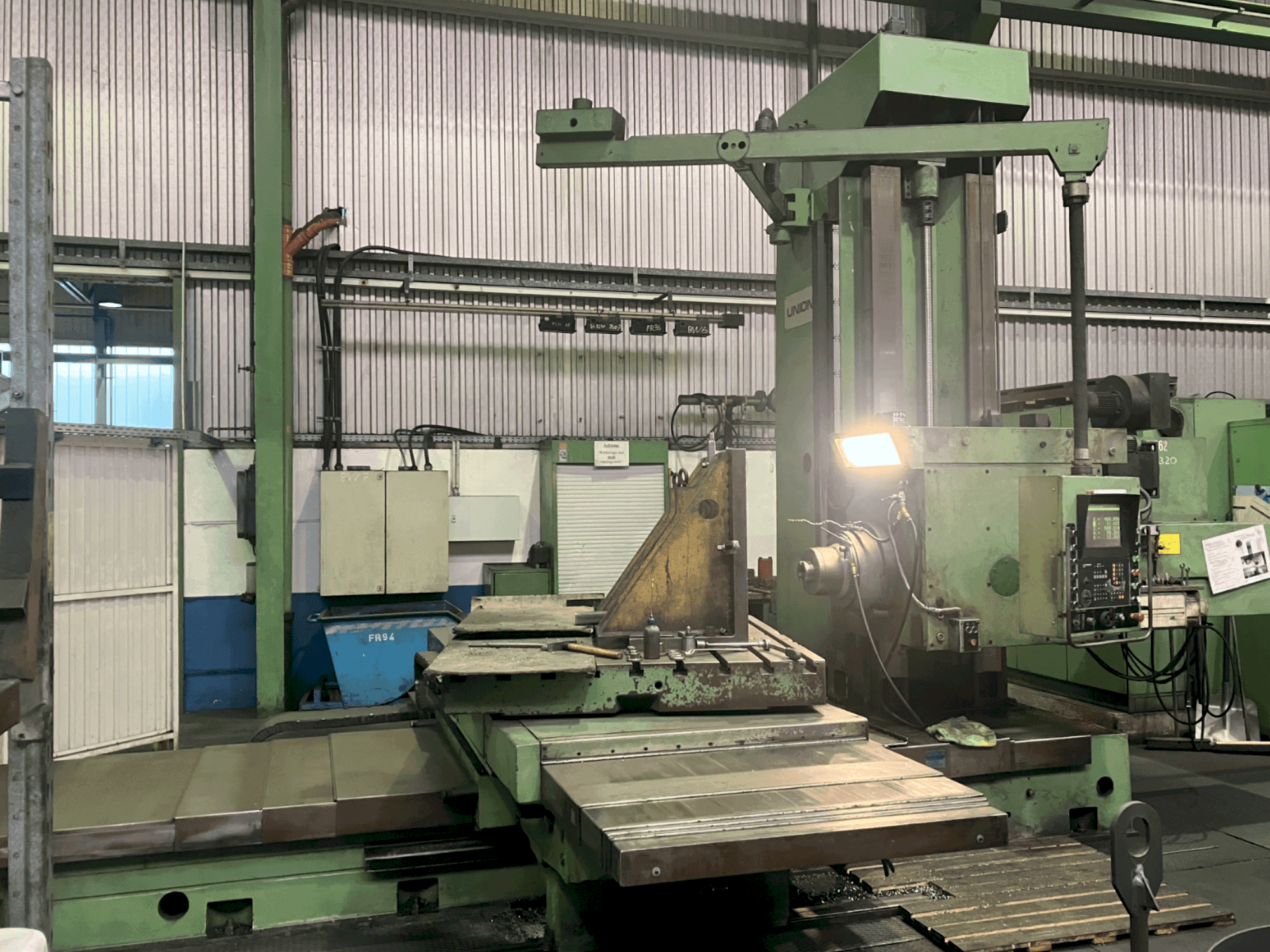

This 5-axis UNION BFT 110 NC boring machine was manufactured in 1992. It features a drilling spindle diameter of 110 mm, ISO 50 tool mount, and a faceplate diameter of 700 mm. Capable of handling a maximum clamping weight of 6300 kg, it offers a spindle speed up to 1250 min⁻¹ and a rapid traverse rate on the Y-axis of 6300 mm/min. If you are looking to get high-quality boring capabilities, consider the UNION BFT 110 NC machine we have for sale. Contact us for more information.
Übersicht
- Hersteller: UNION
- jahr: 1992
- MODELL: BFT 110 NC
- anwendungstyp: Sonstige Werkzeugmaschinen
- Standort: Deutschland
- maschinentyp: Bohrwerk (Metall)
Technische Daten - UNION BFT 110 NC
Maße
- Maschinengewicht: 22000 kg
Bewegung
- Anzahl der Achsen: 5
Technische Spezifikation
- Spindelleistung: 33 kW
Zusätzliche Informationen
Machine Benefits
Technical Machine Benefits
- Peak current demand for motor startup: 300 a
- Speeds (stepless): drilling spindle (4 ranges): 6. 3–1250 min⁻¹ drilling spindle (2 ranges): 6. 3–315 min⁻¹
- Maximum drilling diameter: 630 mm // maximum facing diameter: 1250 mm
- Power supply voltage: 380 v ac ±10% // frequency: 50 hz
- Turret maximum drilling diameter: 630 mm
- Clamping surface dimensions: 1250 x 1400 mm, 1400 x 1600 mm
- Maximum clamping weight with uniform load distribution: 6300 kg
- Clamping table t-slots: width: 28 mm distance: 160 mm centering diameter: 100 n6 mm
- Rotational movement: 360°
- Optical table positioning: 4 x 90°
Extra Information
Control Unit: NC Control System: TNC 355 Control Type: 3-D Path Control Controllable Axes: X, Y, Z, W, and B Specifications: Programmable travel length: Minimum: 0.001 mm, Maximum: 14600 mm Interpolation: 3D linear, 2D circular Programmable feed rate: 1 mm/min to 6300 mm/min Infinitely variable feed rate adjustment: 0% to 150% of programmed value Programmable dwell time: 0.001 s to 19999.999 s Infinitely variable speed adjustment: 0% to 150% Speed programming: Refer to technical data Additional Features: Tool selection: Minimum 1 M-function per block Tool correction: 99 tool numbers, 99 pairs (length and radius) Technological subprograms: 8 machining cycles, 200 free subprograms Program correction: Blockwise within the control Display: Shows 4 program blocks and status of key program data Includes plain text and graphics on a 12-inch screen Program Input/Output: Block length: Fixed or variable Input options: Diskette, Magnetic tape cassette, Manual entry, Serial interface Output options: Diskette, Magnetic tape cassette, Serial interface Travel Ranges: Spindle Stock Vertical Movement (Y): 1270–1620 mm Drilling Spindle Movement (W): 710 mm Transverse movement of clamping table (X): 1985 mm Longitudinal movement of clamping table (Z): Without tailstock: 1260–1960 mm With tailstock: 1490 mm Maximum distance to faceplate: Approximately 3000 mm Table: Clamping surface dimensions: 1250 x 1400 mm, 1400 x 1600 mm Maximum clamping weight with uniform load distribution: 6300 kg Clamping table T-slots: Width: 28 mm Distance: 160 mm Centering diameter: 100 N6 mm Rotational movement: 360° Optical table positioning: 4 x 90°
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
