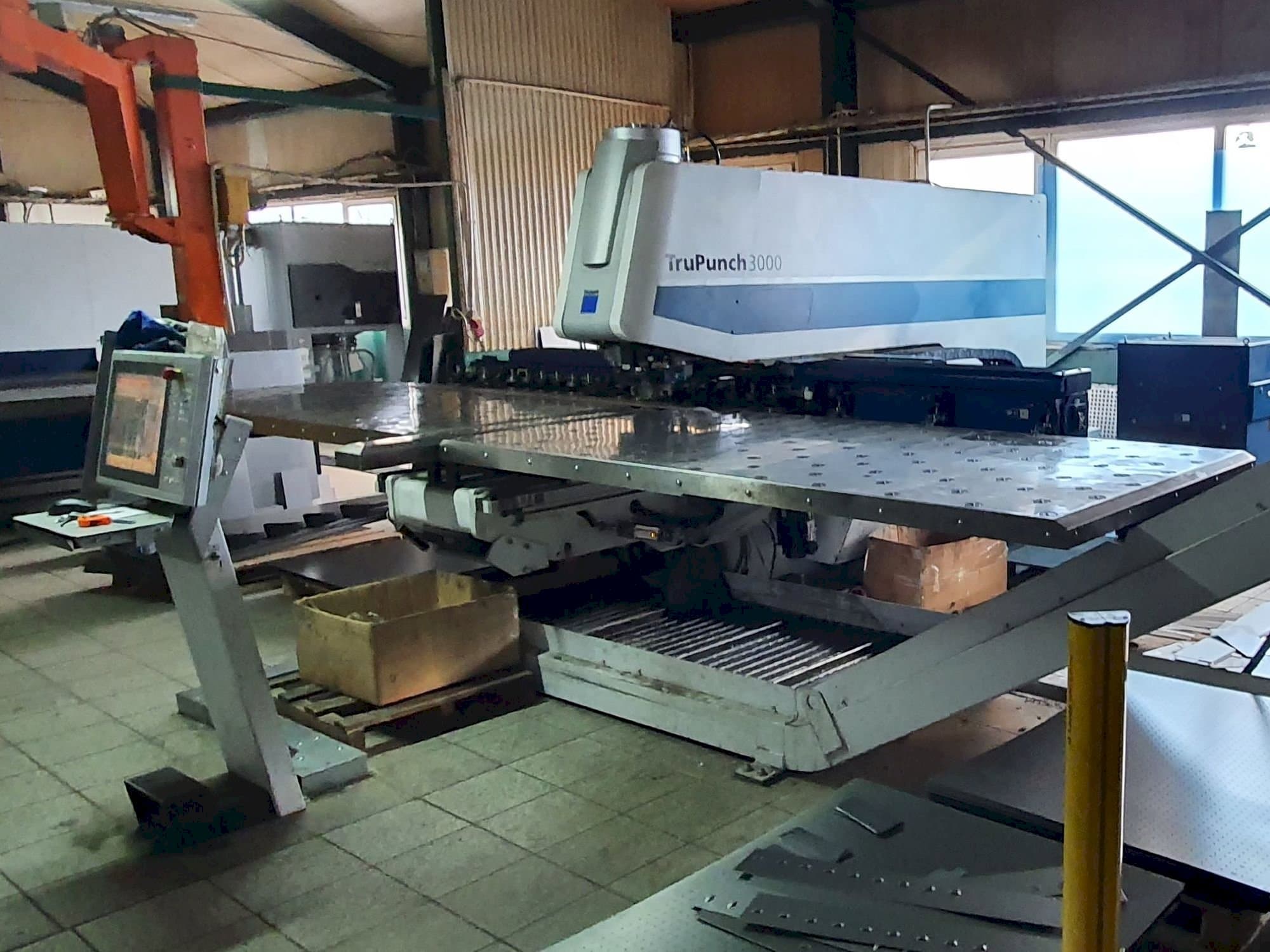

TRUMPF - TruPunch 3000 S11PL-PUN-TRU-2011-00001

Additional equipment

• Adaptive calibration of the punch stroke
• Deburring function and roller technology
• Surface marking / embossing function
• MultiBend function
• Sorting trap for selective removal of ready-made elements and waste
• 3 psc traps individually opened
• Sensor in the chute for small parts
• Container for finished parts (also usable as waste containers)
• offered with offline software licence: 1 licence Trumpf software
• Machine with full technical and service documentation

Machine Benefits

Qualitative Machine Benefits

• Accuracy - positioning deviation pa : 0. 1 mm, ps: 0. 03 mm
• Servo-electric punching head
• Programmable positioning of the clamp
• Footswitch for closing the clamps
• Reposition with programmable clamp
• Drive with maintenance-free ac servomotors
• Programmable positioning of the clamp
• Lubrication of the punch
• Table type: with balls
• Multitool function

Technical Machine Benefits

• Max material length (without reposition): 2500 mm
• Max material width: 1250 mm
• Control bosch
• X / y / c axis drives - maintenance-free ac servomotors
• Punching head drive - electric
• Max. X axis speed - 90 m / min
• Max. Y axis speed - 60 m / min
• Max. Axis speed simultaneously - 108 m / min
• Max. C axis speed (punching) - 330 rpm
• Max. Frequent stroke during marking - 2500 rpm

Extra Information

Used mainly for mild still max. thickness 2 mm. Serviced by Trumpf Poland. Still at the production and ready for tests. The machine is offered without any tools and the scrap conveyer

Machine History

Material thickness

6. 4 mm
