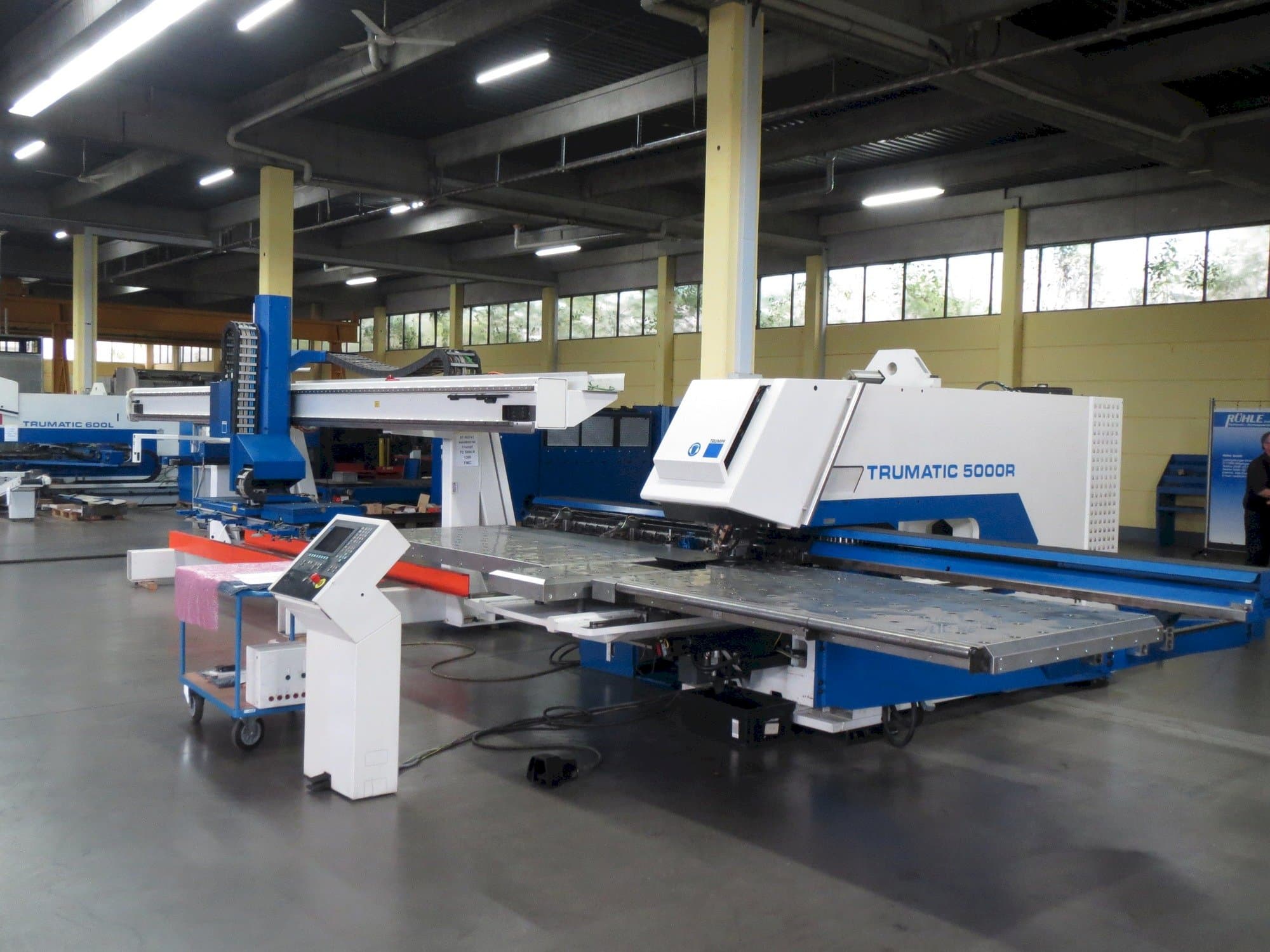

TRUMPF - Trumatic 5000 RZA-PUN-TRU-2003-00001

Additional equipment

• Working Range 2500 x 1250 mm
• Stable C-frame for easy access
• Coordinate guide for high precision machining
• Linear magazine with 18 tool stations and 3 clamps
• Drives with maintenance-free 3-phase servo motors
• Repositioning unit with programmable stripper
• Ball-fitted tables
• Parts chute 500 x 500 mm
• Good parts container
• Chip container

Machine Benefits

Qualitative Machine Benefits

• Programmable presser foot
• Tool length compensation
• Spray lubrication for punches
• Vacuum slug removal
• Forming control
• Controller based on sinumerik 840d
• Control panel with tft screen 12"
• Nc program management
• Integrated technology data
• Teleservice via internet

Technical Machine Benefits

• Working area x x y: 2535 x 1280 mm
• Max. Tool diameter: 76,2 mm
• Movement speed x/y: 100/60 m/min
• Number of tool station: 18
• Automatic shut down mechanism
• First oil fillings
• Transport and assembly device punching head
• Hydraulic punching head
• Rotatable single tool adapter
• Manual adjustable presser foot force

Extra Information

- Integrated e-Shop - Production plan - Slug remove conveyer chute Safety - CE-marking - Two-beam light barriers - Rapid hydraulic shutdown - Sheet collision detection Extended equipment Punching Options - Function MultiTool - Function MultiShear - Function MultiBend - Function deburring and roll technology - StripLine - Active die Machine Options - Repositioning cylinders - Sensor for part chute Programming - Work Shop Programming based in TruTops Punch Basic Data transmission - USB interface and network connection
