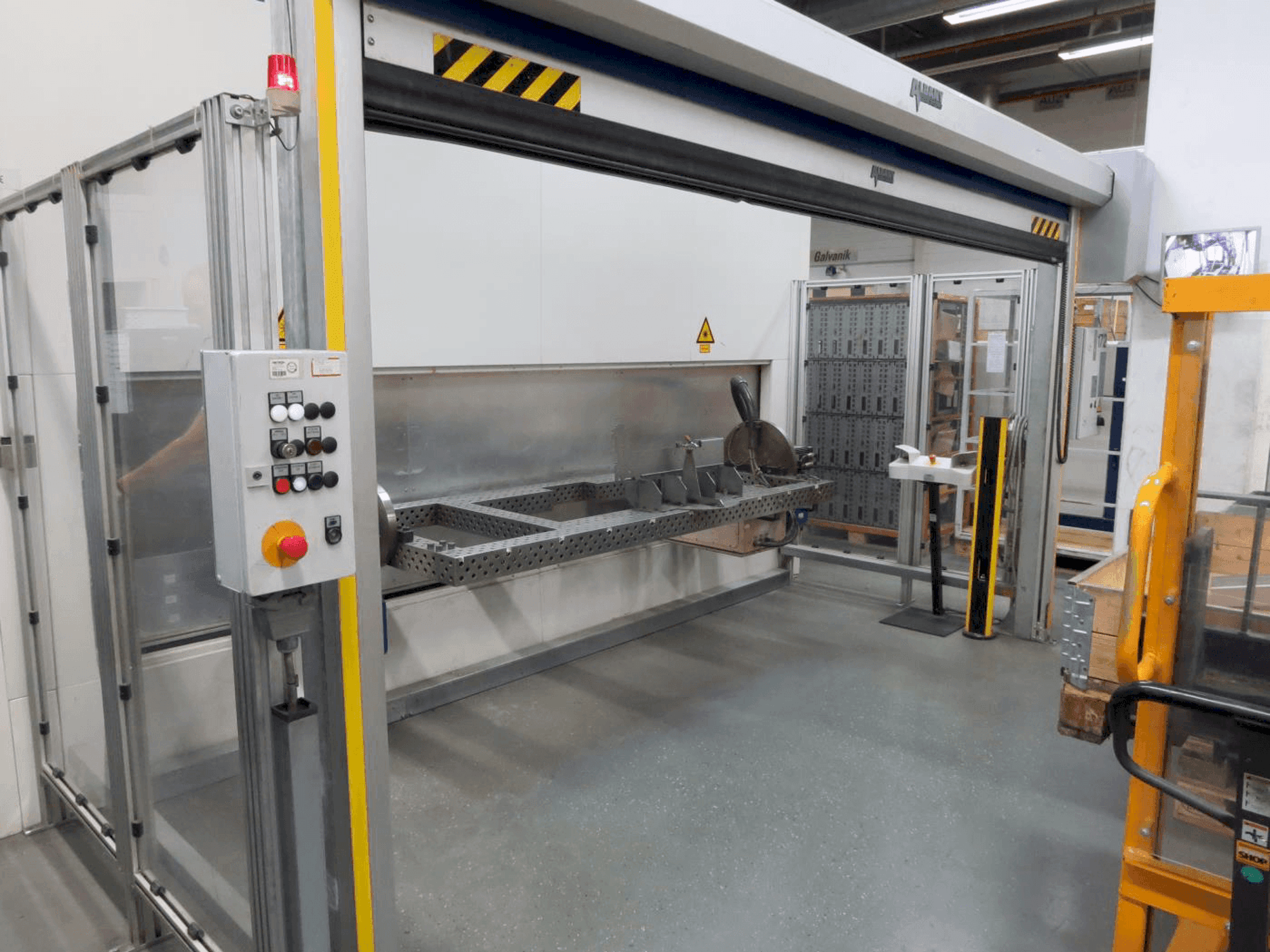

TRUMPF - TruLaser Robot 5020DE-LAS-TRU-2007-00002

Additional equipment

• The clamping table has the dimensions (X x Y) 2400x1000mm.

Machine Benefits

Qualitative Machine Benefits

• Laser light-proof protective cabin with roof, ccd camera, b/w monitor, adjustable crosshairs, camera supply cable, 30 m long, and bnc video cable, 10 m long.
• Lens with focal length f = 200 mm, protective glass cassette for easy replacement of the protective glass
• Beam guidance and shaping, optical protection by laval crossjet, six-axis industrial robot mechanics with articulated kinematics
• Processing optics beo 7000210p for laser welding, designed for the specified payload and moments of inertia of 30 kg
• Main time parallel loading and unloading of components, design of the robot cell with suspended robot.
• Expandable up to a maximum of 4 laser light cables, collimation 0° with defocusing and observation by camera.
• Pilot laser with plasma sensor holder, control of the pilot laser via laser operating
• Winlas laser programming software. Storage option for 99 laser programs.
• Output power: 3000 watts at the workpiece, 4000 watts in total with 1000 watts control reserve
• Optics setup for 1 laser light cable with fast switch (50 ms switching time), optics setup can be

Technical Machine Benefits

• Laser device, beam guidance and shaping trumpf nd:yag laser hl 3006 d, laser light cable llk-b 06, length 40 m
• 2 nc rotary axes, each with counter bearing and a clear clamping width of 2000 mm
• 1 main rotary axis for turning the components in and out, type handte sf - l4000
• Protection of the turning area by means of a roller shutter to the width of the cabin
• Protective glass, media supply plate extraction system, robot-compatible
• Light-tight integration into the protective cabin, software
• Component positioner: double turning positioner dwpv 500ms for holding two component clamping devices
• Kuka kr 30/ ha (high accuracy) robot with kr c2 controller, bnc video cable, 10 m long
• Fiber diameter 600 mm, air volume 4000 m3/h, integrated, automatic extinguishing system
• Floor space requirement incl. Turning positioner: (lxw): 4800mm x 4300mm

Extra Information

The machine does not have a wire feeder // Machine still under power
