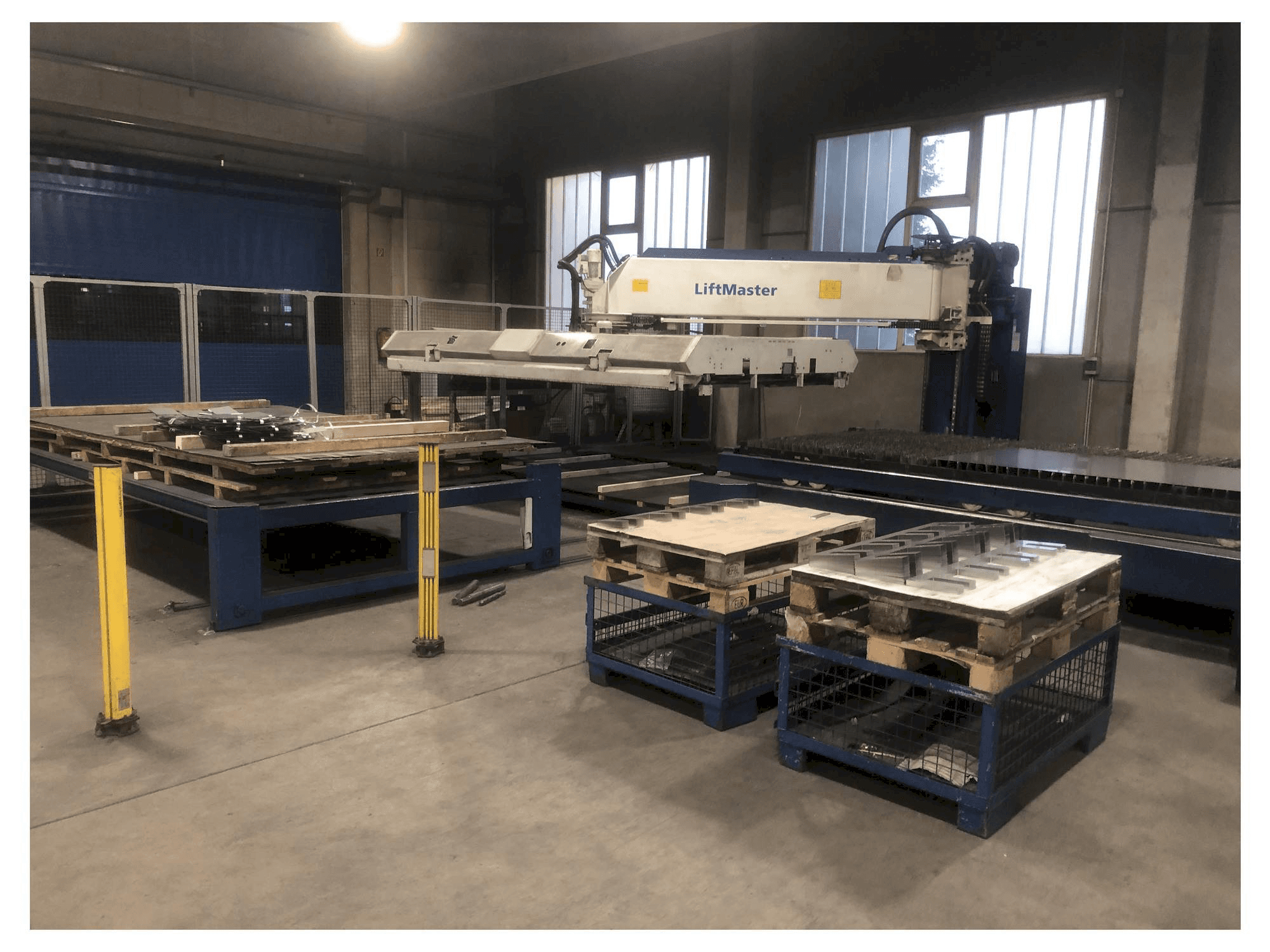

TRUMPF - TruLaser 5040 + LiftmasterDE-LAS-TRU-2007-00003

Machine Benefits

Qualitative Machine Benefits

• Cutting gas pressure setting programmable
• Controlline capacitive height control and process control
• Laser cutting head with 7. 5" lens and laser cutting head with 10" lens for truflow 6000
• Laser cutting head with 5" lens and laser cutting head with 7. 5" lens for truflow 5oo0
• Cutting head quick-change device
• Drives: gantry drive in combination with linear drives direct drives
• Automatic pallet changer
• Closed machine frame with integrated laser unit - laser unit: truflow 5000 high-frequency excited co2 laser, maintenance-free turbo radial fan, cooling unit, logbook function
• Fully encapsulated and ventilated with nitrogen,
• Longitudinal conveyor belt for small parts/waste

Technical Machine Benefits

• Software licence is included
• Fast processing with sprintline in all sheet thicknesses, programmable power cycles
• Contourline for the production of small holes
• Pierceline
• Spraying device for safe thick sheet processing
• Automatic sheet metal outer edge detection
• Safety: multi-beam light barriers, beam guidance
• Nitroline high-pressure cutting
• Automatic focus position adjustment focusline - laser power control
• Position laser diode

Extra Information

Working area: 4OO0 x 2000 x 1 15 mm Sta nd equipment: - PlasmaLine - Microweld - Automatic nozzle cleaning - Automatic switch-off - Work area lighting - Sinumerik 840D control system: Open control system on PC basis, simple operation, online help, integrated e-shop, diagnostic functions, maintenance logbook, technology data, teleservice - Workshop programming monitoring system, multi-chamber extraction system and compact dust extractor, safety cabin - Installation, commissioning and instruction - RJ45 network connection via teleservice installation - 3.5" floppy disk drive - TFT color screen Ouer conveyor belt left with container LiftMaster Peeling device and sheet thickness gauge Pallet handling extension (P) + 1x double trolley machine have a maintenance contract with Trumpf quartz tube replacement was carried out in 2022/2023. 00% power of 5KW.
