- TROTEC Speedmarker 700 SM700HT FIBER Laser Marking

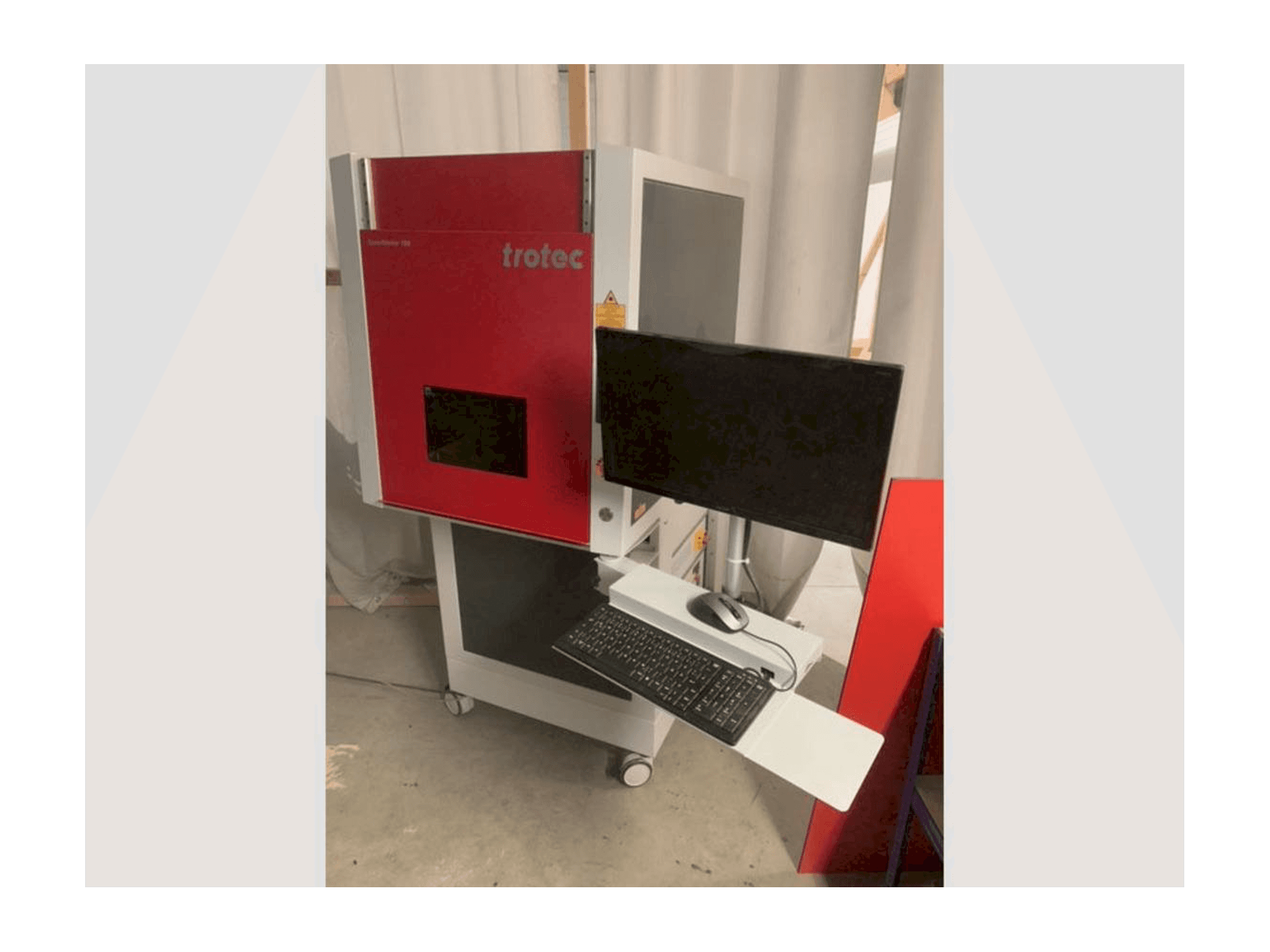

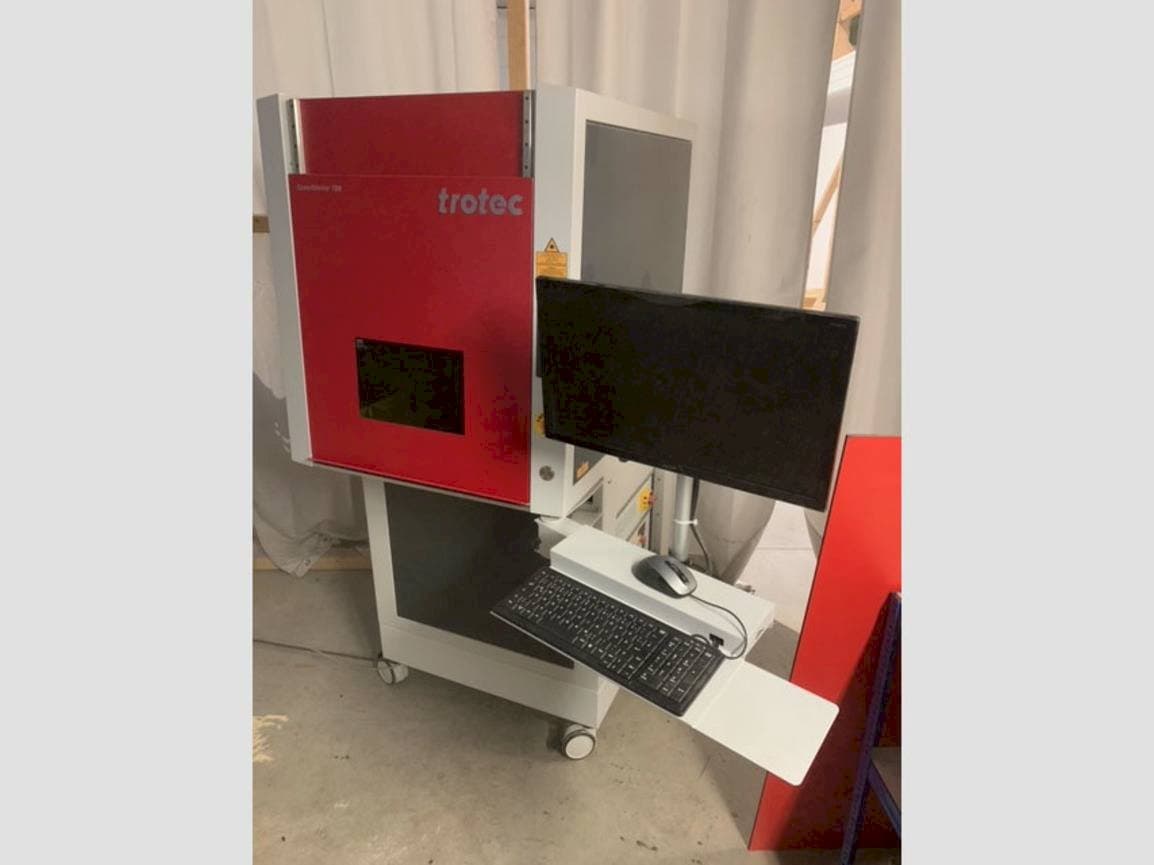

This TROTEC Speedmarker 700 SM700HT FIBER Laser Marking was manufactured in the year 2021 in Germany. The machine has not been used apart from the instruction and is like new. It is equipped with a fiber laser and can operate with a max. load of 1.5 kg.
Übersicht
- Hersteller: Trotec
- jahr: 2020
- MODELL: Speedmarker 700 SM700HT
- anwendungstyp: Andere Blechbearbeitungsmaschinen
- Standort: Deutschland
- maschinentyp: Laserbeschriftungsmaschine
Technische Daten - Trotec Speedmarker 700 SM700HT
Maße
- Maschinentiefe: 981 mm
- Maschinenhöhe: 1802 mm
Zusätzliche Informationen
Additional equipment
- Laser beam sources: Wavelength 1065 +- 5nm, M²= 1.6, laser protection class 4
- Scan head: galvanometer deflection unit, standard: plane field objective F-Theta 160mm, labelling field approx. 120x120mm
- Laser control interface: Ready for operation, laser start, marking finished, laser emission, emergency off, safety shutdown
- Cooling: Air-cooled
- Labelling software: Speedmark
- Options: Pilot laser 650mm /<1mW
- Lenses: f=100mm, labelling field 70x70mm, f=160mm, labelling field 120x120mm, f=254mm, labelling field 190x190mm
- Laser power: FL MOPA laser
Machine Benefits
Qualitative Machine Benefits
- Equipped with a fiber laser
Technical Machine Benefits
- Speedmark software and direktmark printer driver
- Software-controlled z-axis
- Industrial pc
- Pilot and focus laser
- Integrated digital v42ios(41/40)
- Clamping range 3-jaw chuck outer diameter: 3 - 67 mm inner diameter: 23 -98 mm
- Lifting door dimensions (wxh): approx. 600 x 370 mm / software-controlled z-axis: 395 m travel, additional manual operation via buttons (up - down) / working height seated workstation approx. 750 mm / working height standing workstation approx. 950mm
- T-slot plate (lxw): 375x400mm / labelling field with controlled x-axis: 440 x 120 mm (with lens f = 160 mm), 510x190mm (with lens f = 254mm) / labelling field with controlled x and y axis: 440x410mm (with lens f = 160mm), 510x480mm (with lens f = 254mm)
- T-slot plate y axis (lxw): 300x375mm / 20 w laser
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
