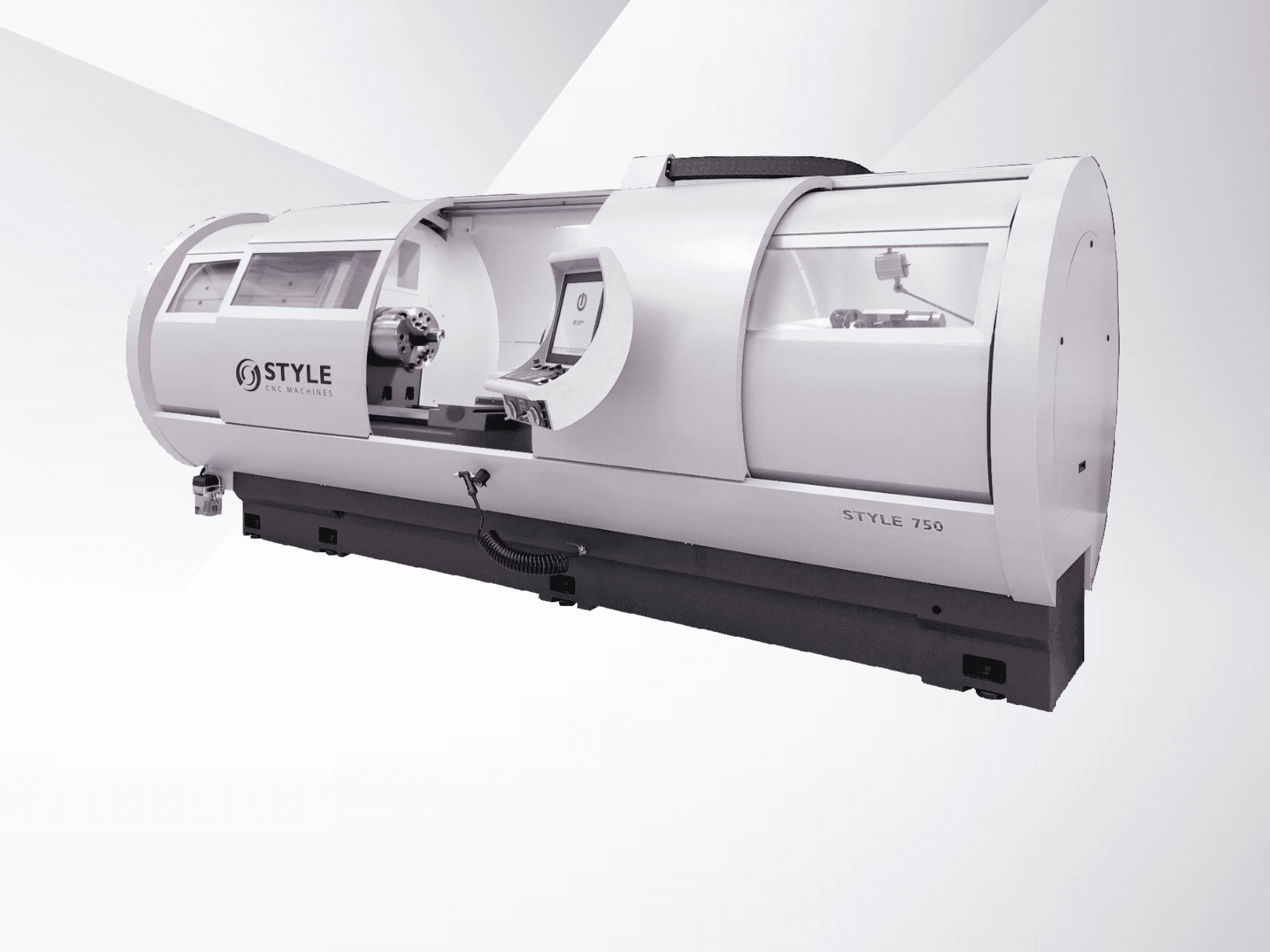

STYLE - 750 (4000dbc)CZ-TUR-STY-2023-00001

• Swing diameter over bed: 750 mm

• Swing diameter over slide: 530 mm

• Distance between centers: 4000 mm

• Bed width: 450 mm

• Maximum load between centers: 1800 kg

• Maximum load with fixed steady rest (type U): 2500 kg

• Spindle bore: 105 mm

• Spindle (A2-11)

• Axes:

  • X-axis ball screw Ø: 32 mm

  • Z-axis ball screw Ø: 50 mm

  • Rapid traverse: 8 m/min

  • Feed range: 0.01–2000 mm/min

• Tailstock:

  • Quill diameter: 125 mm

  • Quill stroke: 225 mm

  • Quill taper: MT6

• Standard equipment (machine-integrated):

  • LED machine lighting

  • Cooling

  • Automatic lubrication

  • Steel ball screw covers

  • Full cover

  • Front sliding door

  • Electronic handwheel

  • Constant cutting speed

Additional equipment

• Chip conveyor

• Automatic tool changer, 8 positions, VDI-50

• Heavy-duty tailstock, desktop version SW

• 26 kW main motor

• Oil separator

• Steady rest D50–300 mm

• Steady rest D60–400 mm

• Coolant pump switch

• 3-jaw chuck Ø315 – Schunk Rota S Plus 2.0

• Speed potentiometer

• LED lamp

• LAN

• Stronger cooling with gun

• Handwheel
