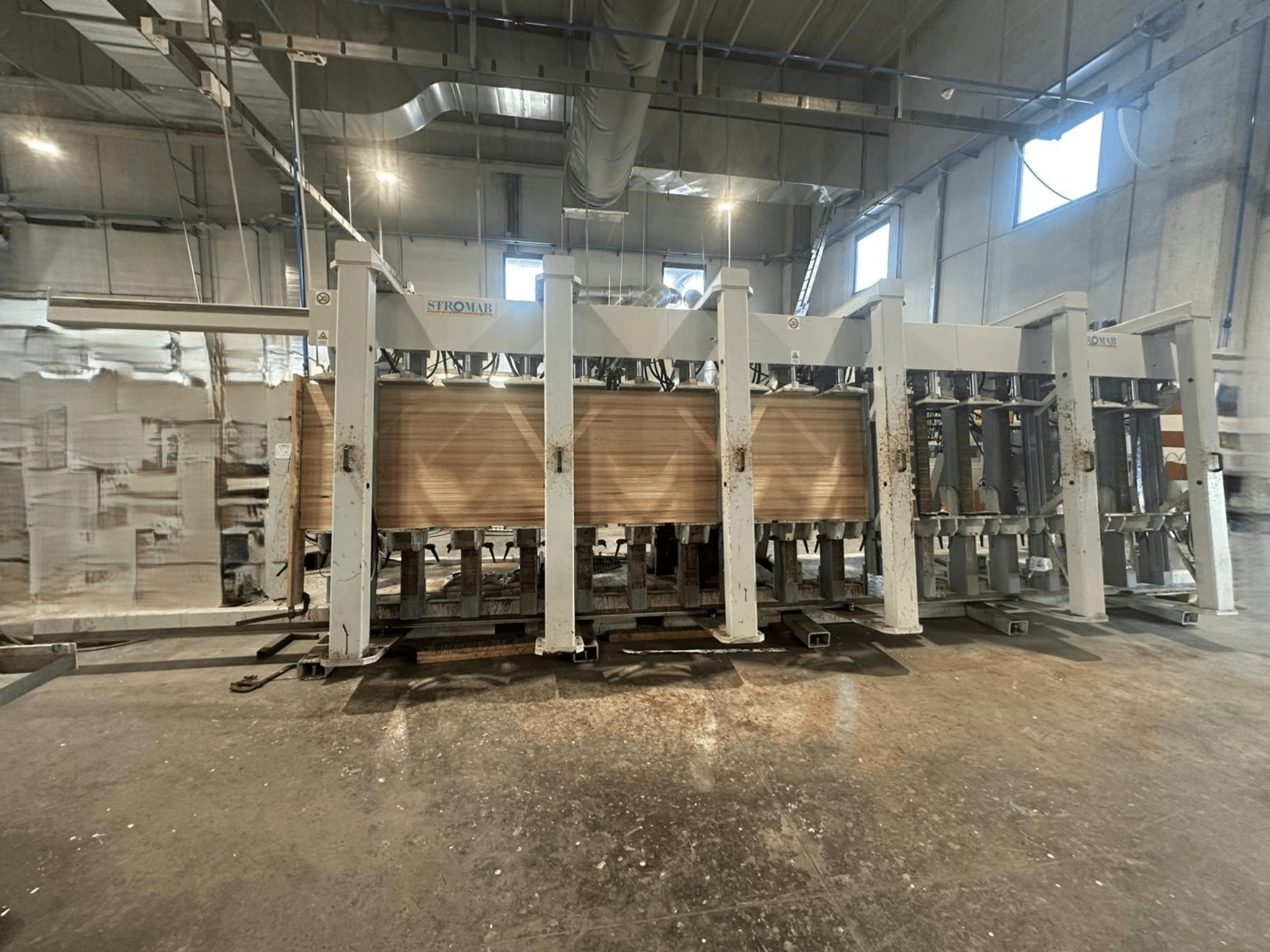

STROMAB - SL3IT-PRE-STR-2019-00001

Working area:

• Useful length: 3,000–20,000 mm

• Useful height: 1,200 mm

• Maximum beam width: 200 mm

Cylinders & pressure:

• Number of vertical cylinders per meter: 3

• Diameter of vertical cylinders: 70 mm

• Force per cylinder at 200 bar: 7,200 kg

• Specific pressure: 8–11 kg/cm²

Hydraulic specifications:

• Integrated hydraulic power unit

• Independent pressure adjustment for vertical and frontal cylinders

• Dedicated pressure gauges

• Double-push safety system for activation
