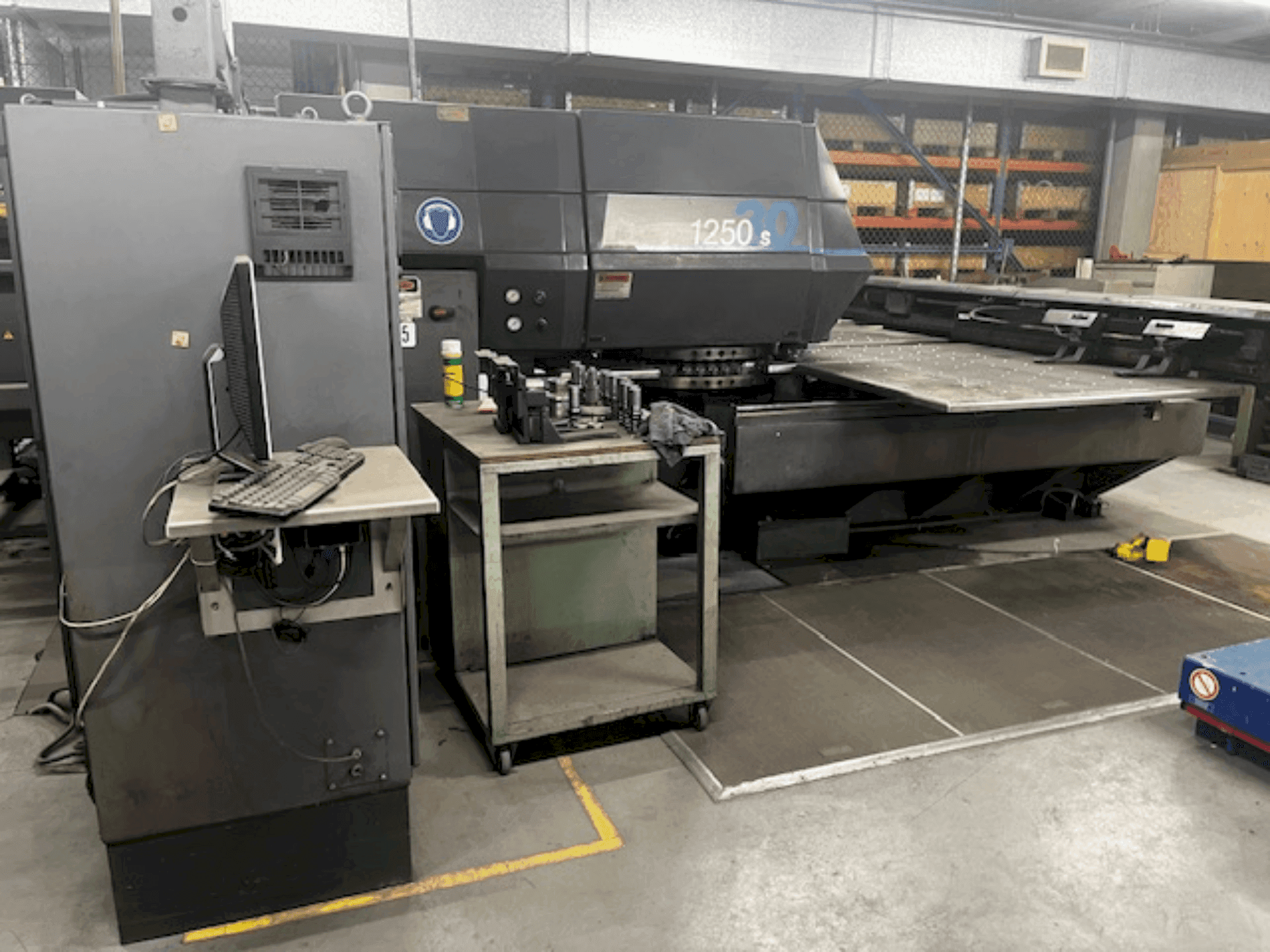

STRIPPIT - 1250SL/30NL-PUN-STR-1996-00001

Machine Benefits

Technical Machine Benefits

• Normal speed press drive: 3556 mm/min
• Low speed press drive: 7620 mm/min
• Accuracy: ± 0. 076 mm

Extra Information

Movement Maximum travel 1 Axis: 1346 mm Maximum Axis Travel Speed: 63500 mm/min Feed Resolution: 0.0025 mm Table Maximum Stock Size Normal: 787 x 1143 mm W/Progressive Mode: 1143 x 1524 mm Normal w/extended range work clamps: 1524 x 1524 mm W/Prog. move and extended range work clamps: 1524 x 3048 mm Maximum stock thickness: 83.8 mm Turret Turret Drive Bi-Directional: 33 Stations One Station Index Time: 1.5 sec Tools Hole Punching Capacity: 88.9 mm Diameter in 3.2 mm Mild Steel 41.3 mm Diameter in 6.35 mm Mild Steel 28.6 mm Diameter in 9.5 mm Mild Steel Hits per minute on 25.4 mm centers: 213 HPM Machine-Specific Data Nibbler nibbling Rate: Normal speed press drive: 3556 mm/min Low speed press drive: 7620 mm/min Accuracy: ± 0.076 mm Press Drive Options 12/20 Ton: 1.3 kW Motor 830Q SPM (Medium Speed): 1.7 kW 40/80 ton wall: 1.1 kW Motor 570Q SPM (Low Speed): 1.3 kW Motor 360Q SPM (High Speed): 2.6 kW
