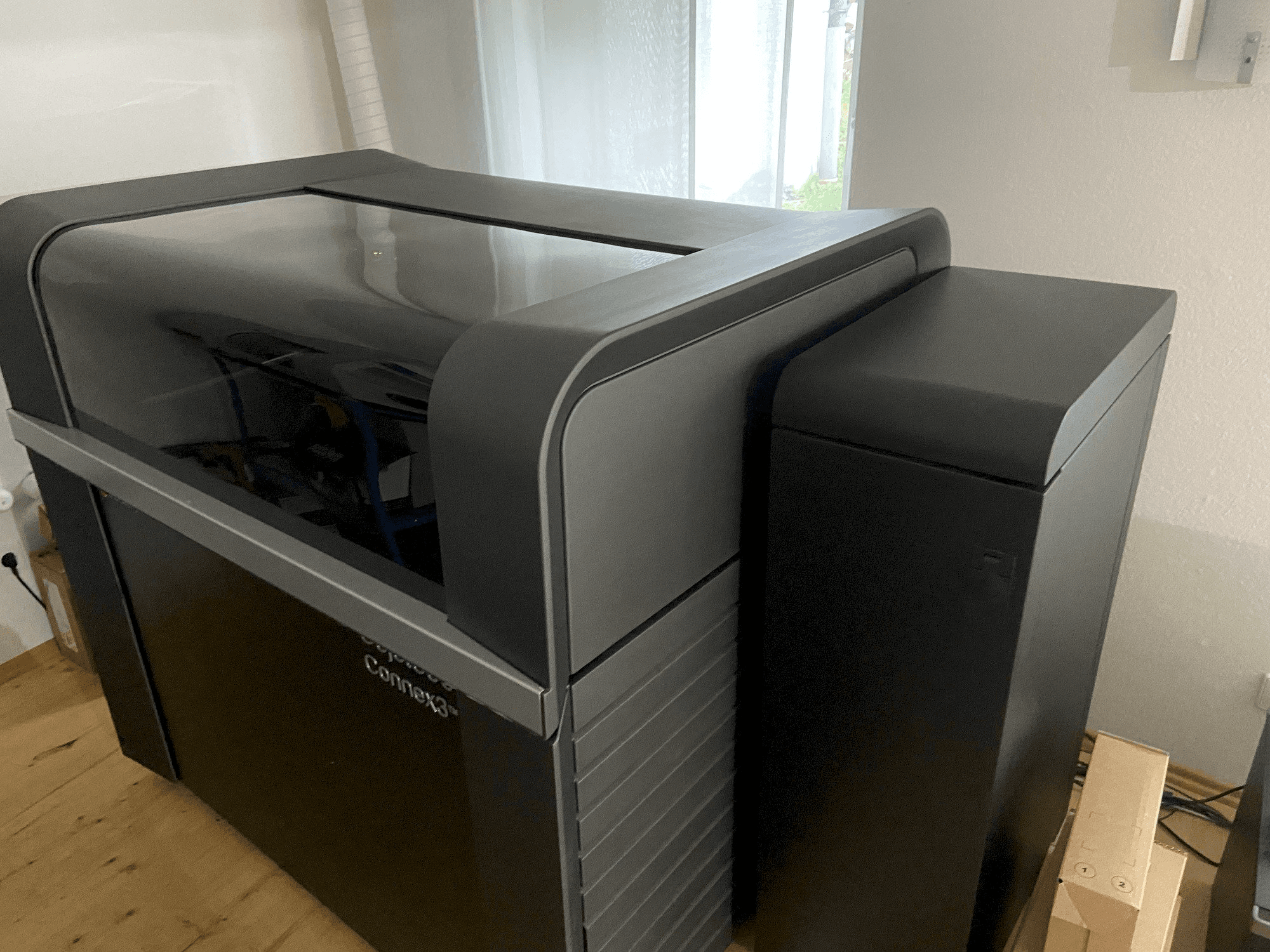

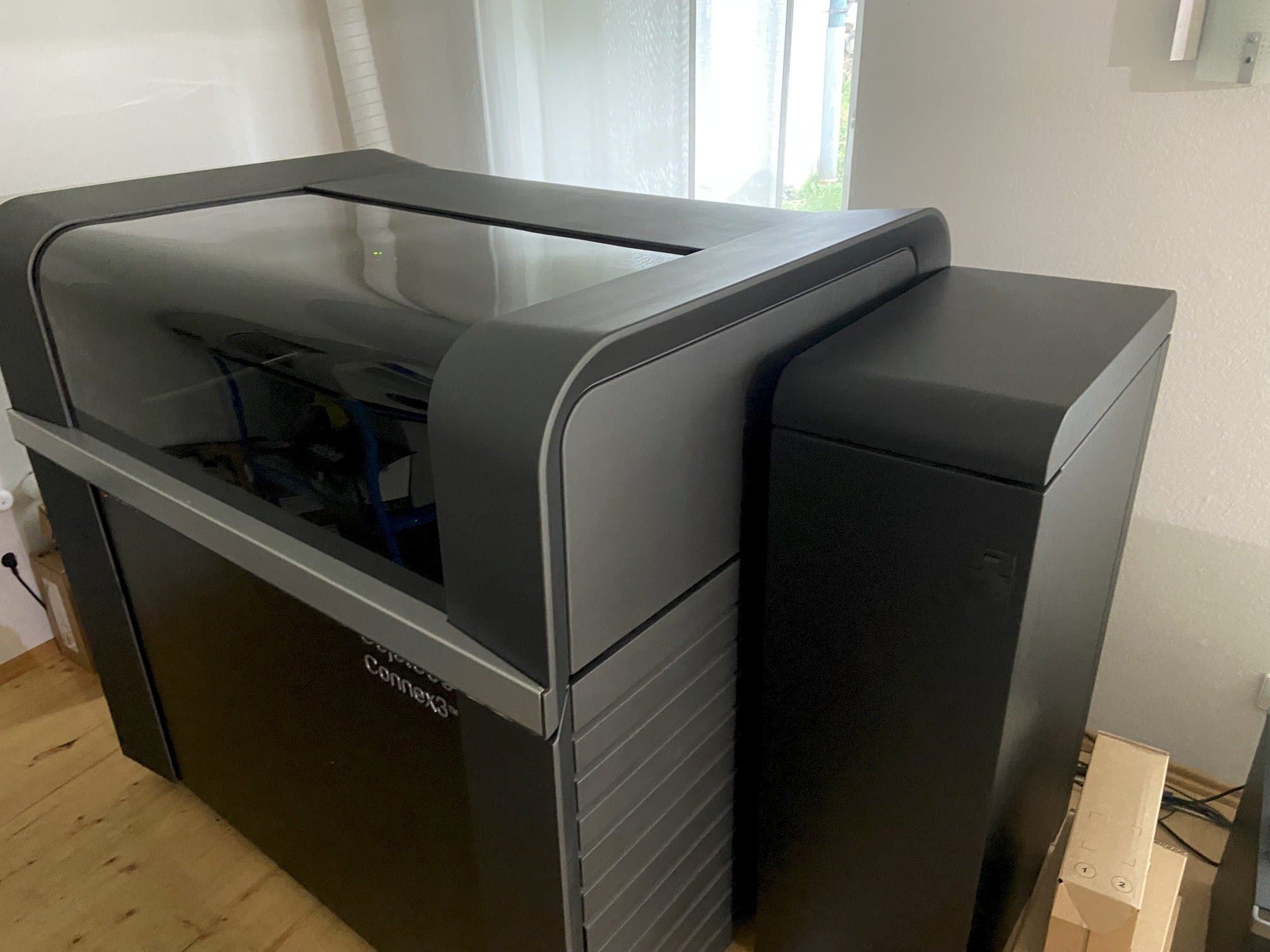

Stratasys - Objet500 Connex3DE-3DP-STR-2018-00001

Additional equipment

• Various spare and wear parts in stock
• The high pressure cleaning system is included

Machine Benefits

Qualitative Machine Benefits

• Model materials: rigid opaque: veropurewhite™, verowhiteplus™, veroblackplus™, verogray™, veroblue™, verocyan™, veromagenta™, veroyellow™, veromagentav™, veroyellowv™ // rubber-like: agilus30™, tangoplus™, tangoblackplus™, tangoblack™, tangogray™ // transparent: veroclear™ and rgd720 // simulated polypropylene: rigur™ and durus™ // high temperature // bio-compatible
• Digital materials: digital abs plus™ and digital abs2 plus™ in ivory and green // hundreds of vibrant, repeatable colors in opaque and translucent // rubber-like blends in a range of shore a values and color // simulated polypropylene materials with improved heat resistance
• Material options: over 1,000
• Maximum materials per part: 82
• Support material: sup705 (waterjet removable) // sup706 (soluble)

Technical Machine Benefits

• Three materials can be printed at the same time
• Colored models are possible
• Hard/soft material combinations are possible
• Maximum build size (xyz): 490 x 390 x 200 mm (19. 3 x 15. 4 x 7. 9 in. )
• System size and weight:1400 x 1260 x 1100 mm (55. 1 x 49. 6 x 43. 4 in. ); 430 kg (948 lbs. ) material cabinet: 330 x 1170 x 640 mm (13 x 46. 1 x 26. 2 in. ); 76 kg (168 lbs. )
• Resolution: x-axis: 600 dpi; y-axis: 600 dpi; z-axis: 1600 dpi
• Accuracy: up to 200 microns for full model size (for rigid materials only, depending on geometry, build parameters and model orientation)
• Minimum layer thickness: horizontal build layers as fine as 16 microns (. 0006 in. )
• Build modes: digital material: 30-micron (. 001 in. ) resolution // high quality: 16-micron (. 0006 in. ) resolution // high speed: 30-micron (. 001 in. ) resolution
• Software: objet studio™ intuitive 3d printing software. Compatible with grabcad print for use with job reports, scheduling and reports monitoring
