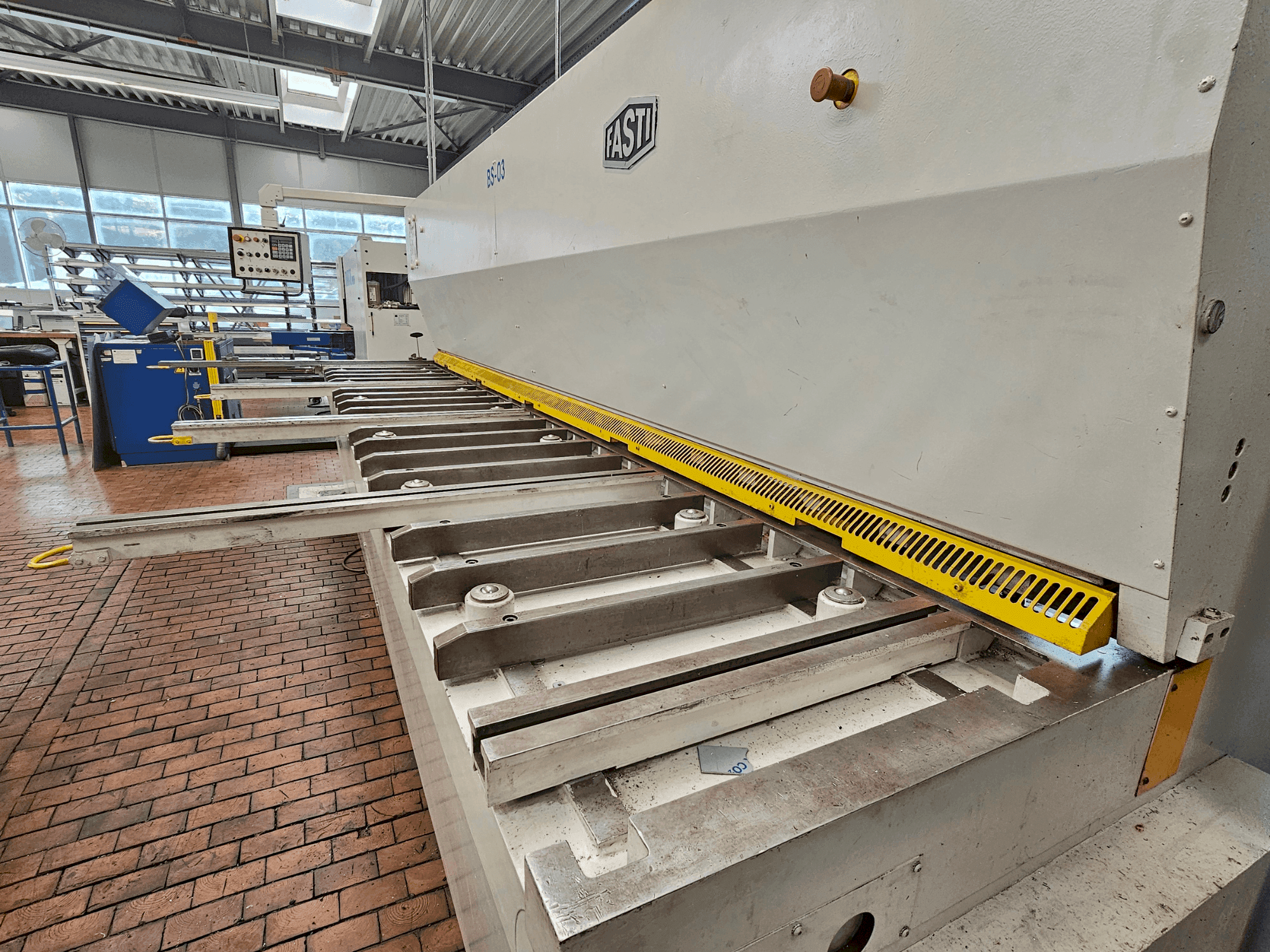

SCHRODER-FASTI - FASTI 509-40-6DE-BEN-SCH-1997-00001

Additional equipment

• Front-operated motorised fence
• Right-angled side stop 90° with tilt stop
• 2 drop cam stops in T-slot guide
• Table extensions with T-slots
• Operating tool

Machine Benefits

Technical Machine Benefits

• Minimum stop dimension: 15 mm
• Construction: all-steel welded construction
• Cutting technology: / double-edged, multi-part blades with 87° wedge angle / stepless cutting length adjustment / cutting gap adjustment (can be read to 1/100 mm using a dial gauge) / cutting line display with silhouette
• Drive: hydraulic with oil filling
• Control system: o electric control in accordance with din en 60204-1 / operating modes: single stroke, continuous stroke, partial stroke, jogging
• Projection on the side stand: 50 mm
• Dimensions (approx. ) for 509-40-6: a (total length): 4540 mm /b (table width): 1885 mm /c (table depth): 1645 mm/ d (cutting length): 4300 mm/ h (height of work surface): 2329 mm /k (total machine height): 1430 mm
• Side stand projection: 50 mm (standard)
• Foundation fastening: composite anchor hva m16x125 with mortar cartridges (drill Ø 18 mm) / concrete strength class min. B25 required.
• Cutting performance: shear angle: large angle = lower resistance, higher performance. / small angle = higher resistance, lower power // max. Sheet thickness: o dependent on material strength (see diagram in document). O recommended strip width: 12-15 × sheet thickness for low-torsion cuts

Extra Information

Machine still under power
