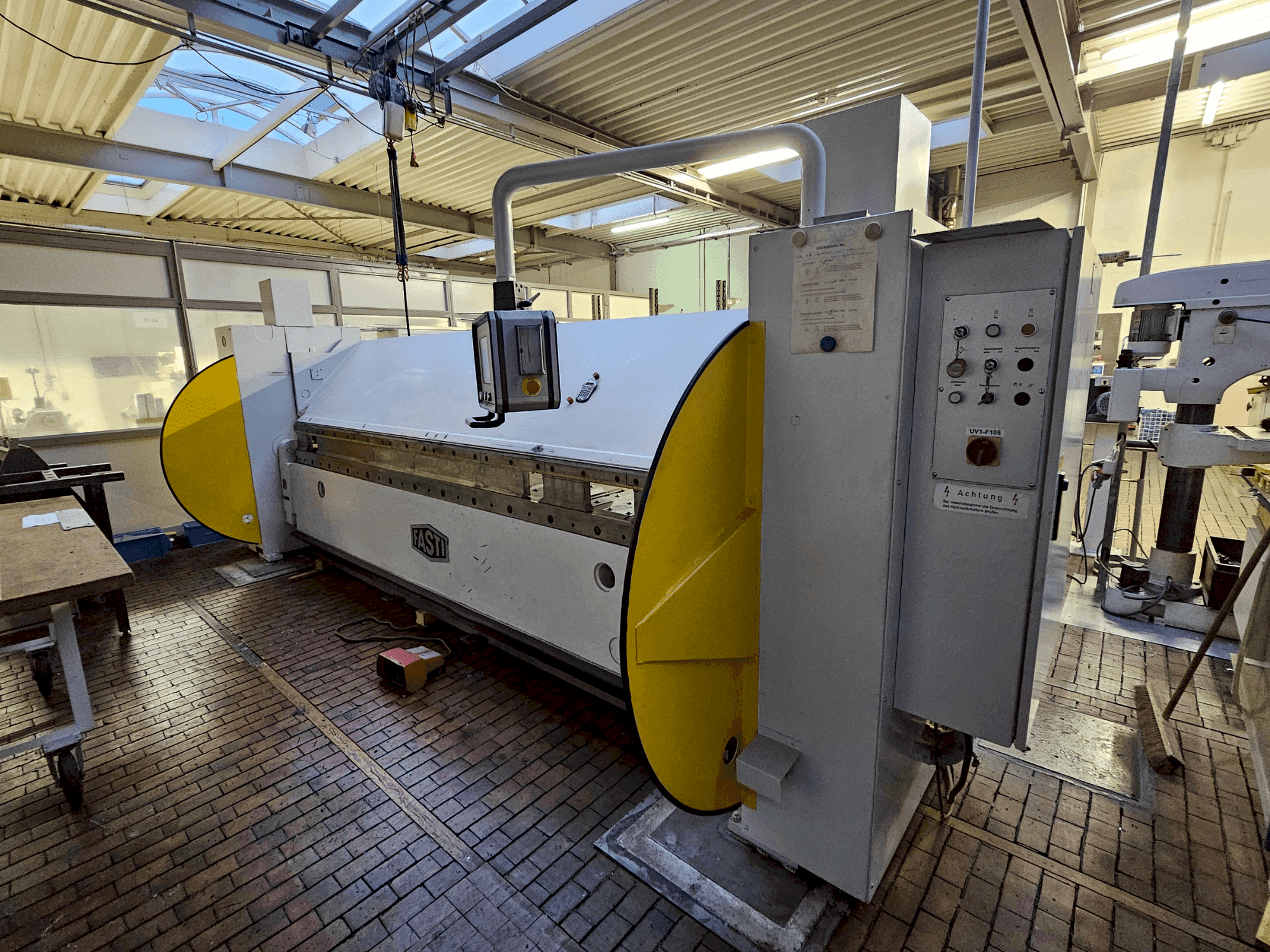

This SCHRODER-FASTI 215-40-4 was manufactured in 1994. A reliable profile bending machine, ideal for various metalworking applications. Despite its age, it remains a robust choice for precision cutting tasks. Consider the SCHRODER-FASTI 215-40-4 machine we have for sale. Contact us for more information.
Übersicht
- Hersteller: SCHRODER-FASTI
- jahr: 1994
- MODELL: 215-40-4
- anwendungstyp: Walzen
- Standort: Deutschland
- maschinentyp: Profilbiegemaschine
Zusätzliche Informationen
Additional equipment
- Flat rail: 18 mm wide
- Centre rail: 45°
- Reinforcement rail: 36 mm
- Stroke of the upper beam: 350 mm
- Adjustability of the motorised bending beam: 80 mm
- Adjustability of the motorised lower beam: 80 mm
- Motor power for bending beam adjustment/lower beam adjustment: 0.75 kW
Machine Benefits
Technical Machine Benefits
- Max sheet thickness: 4 mm at tensile strength 400 n/mm²
- Equipped with motorized adjustments for bending and lower beams
- High clamping pressure speed of 30%
- Robust and adjustable bending capabilities
- Steering: cnc-fasti-matik 4000
Extra Information
Reference dimension: 2024.7 mm largest dimension: 2000 mm smallest dimension: 16 mm smallest dimension 2: 46 mm finger size: 150 mm finger stop position: 155.9 mm dead zone: 0.5 mm AC parameters and additional calibration and speed settings provided for precision and efficiency
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
