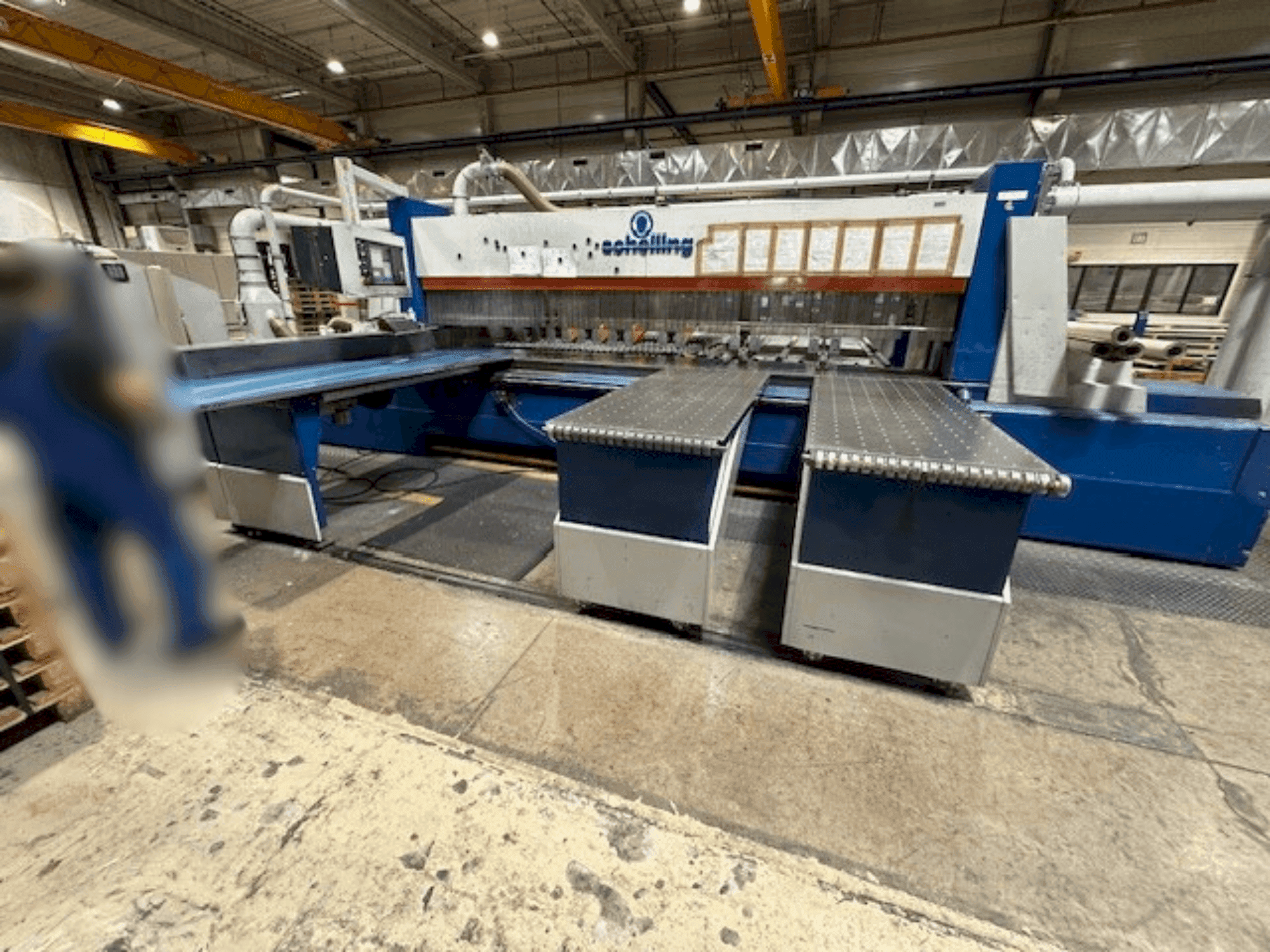

SCHELLING - FSM-430DE-SAW-SCH-1994-00001

Machine Benefits

Technical Machine Benefits

• Swivelling control panel
• Slide-in unit with 8 clamps
• Compressed air requirement: approximately 800 l/min at 1 bar overpressure connection: 1’’ minimum 6 bar
• The electrical main connection requires approximately 50 kw, with a cable cross-section of 3×25 mm² cu, a 100 a main fuse, and operates at 380v, 50hz.
• The extraction system includes an angular impact extraction with a 120 mm diameter located 1030 mm above the floor, an extraction point with a 150 mm diameter 330 mm below the floor, and a pressure beam extraction with a 100 mm diameter positioned 1635-1955 mm above the floor, with an approximate airflow of 4250 m³/h at 32 m/sec, and connections of 1× 120 mm, 1× 100 mm, and 1× 150 mm diameter.
