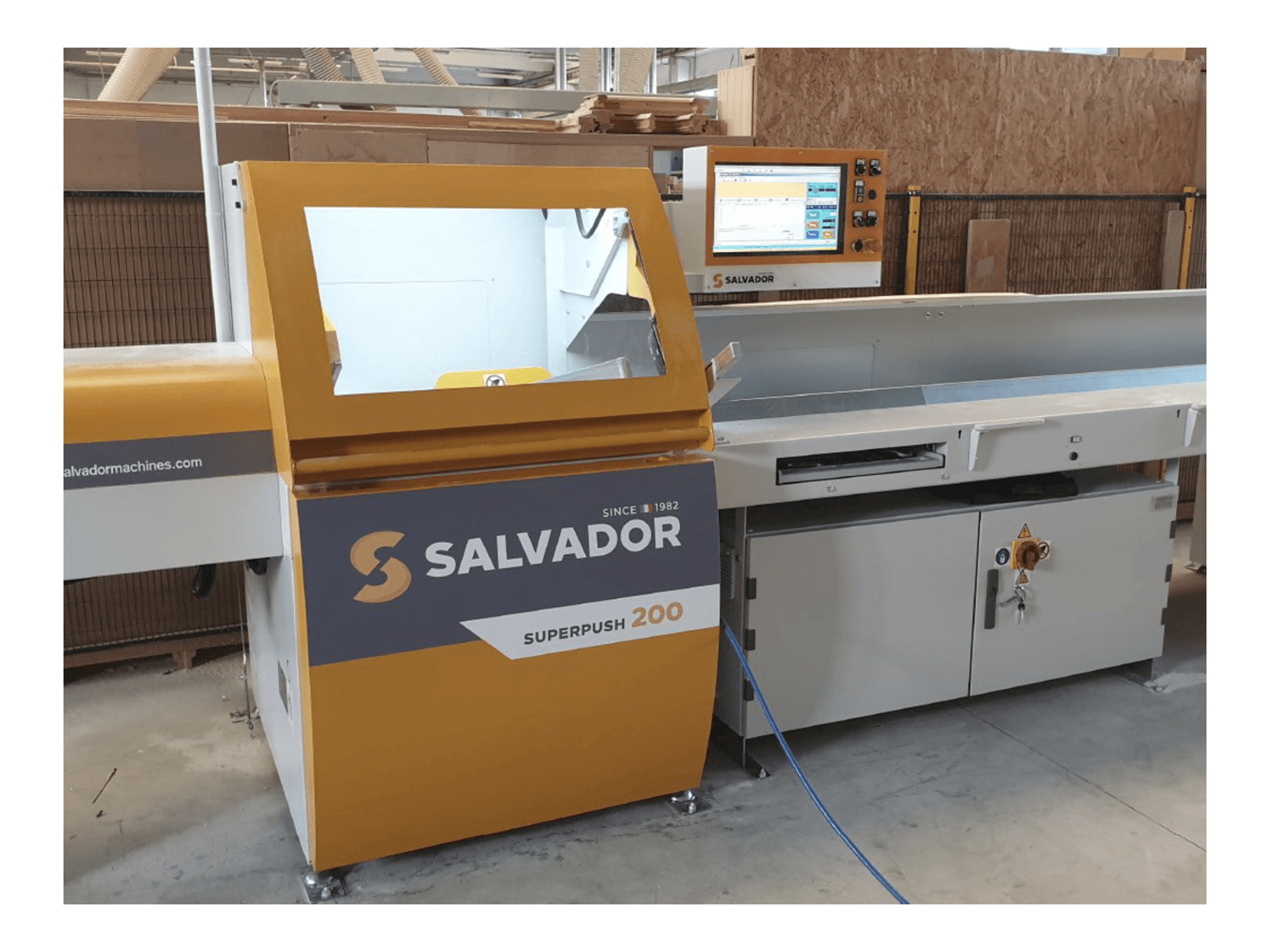

SALVADOR - Superpush 200DE-SAW-SAL-2025-00001

Additional equipment

• Outfeed Table: Made of solid steel with a 30° incline. Length 3000 mm.
• Safety Features: Rear protective cover, dual dust protection, and automatic lubrication.

Machine Benefits

Qualitative Machine Benefits

• Cutting cross-section: max 240x150 / 300x110 mm, min 30x15 mm
• Pusher slide dimensions: 300 x 345 x 25 mm
• Feed speed: adjustable max feed speed set to 60 m/min
• Pusher drive system: brushless dc servo drive motor with electronically controlled feed.
• Productivity enhancements: increases productivity and improves wood yield.
• Reliability features: robust construction with thick, reinforced steel frame.
• Processing accuracy: two electropneumatic aligners ensure square cuts.

Technical Machine Benefits

• Special inclined surface with a 30° angle, intelligent clamping, and automatic lift pusher during scanning.
• Windows-based software with a 22" led color display and remote maintenance capability.
• Electronic system: real-time communication with a modern computer-aided cnc.
• Software: linux-based optimization algorithm with a windows 10 interface.
• Pc features: intuitive s4u software, extensive customization, real-time updates, error detection, and remote maintenance software.
• Saw motor power: 5. 5 kw
• Saw blade type: carbide-tipped circular saw
• Blade diameter: 500 mm
• Number of teeth: z=108
• Board length before cutting: max 4100 mm, min 500 mm

Extra Information

Machine still under power. Please contact us for consultation and a custom-tailored offer.
