ROLBATCH - RBSDMS-IZS-678DE-OTH-ROL-2016-00001

Machine Benefits

Qualitative Machine Benefits

• Machine can be seen and tested
• The machine is like new, fully functional.
• The machines typically consume between 60 and 80% of the installed power because the highest energy consumption occurs during startup and when the heating elements are warming up. After that, only reheating to the required temperature is needed. The machine is equipped with frequency inverters for the motors, so it does not continuously use the full installed power but significantly less.

Technical Machine Benefits

• 3-5 layer flat film line used 3-5 layer pp / ps cast film line
• Throughput capacity: up to 450 kg / hour
• Raw material: pp or ps
• Maximum film thickness: 0. 3-1 mm / maximum film width: up to 1600 mm
• Extrusion line for thick calendered polypropylene and polystyrene films, suitable for thermoforming.
• Installed motor power: 278 kw / heating power: 201 kw / required power supply: three-phase current, 50 hz / compressed air consumption: 0. 2 m³/min / water consumption: 30 m³/h /

Extra Information

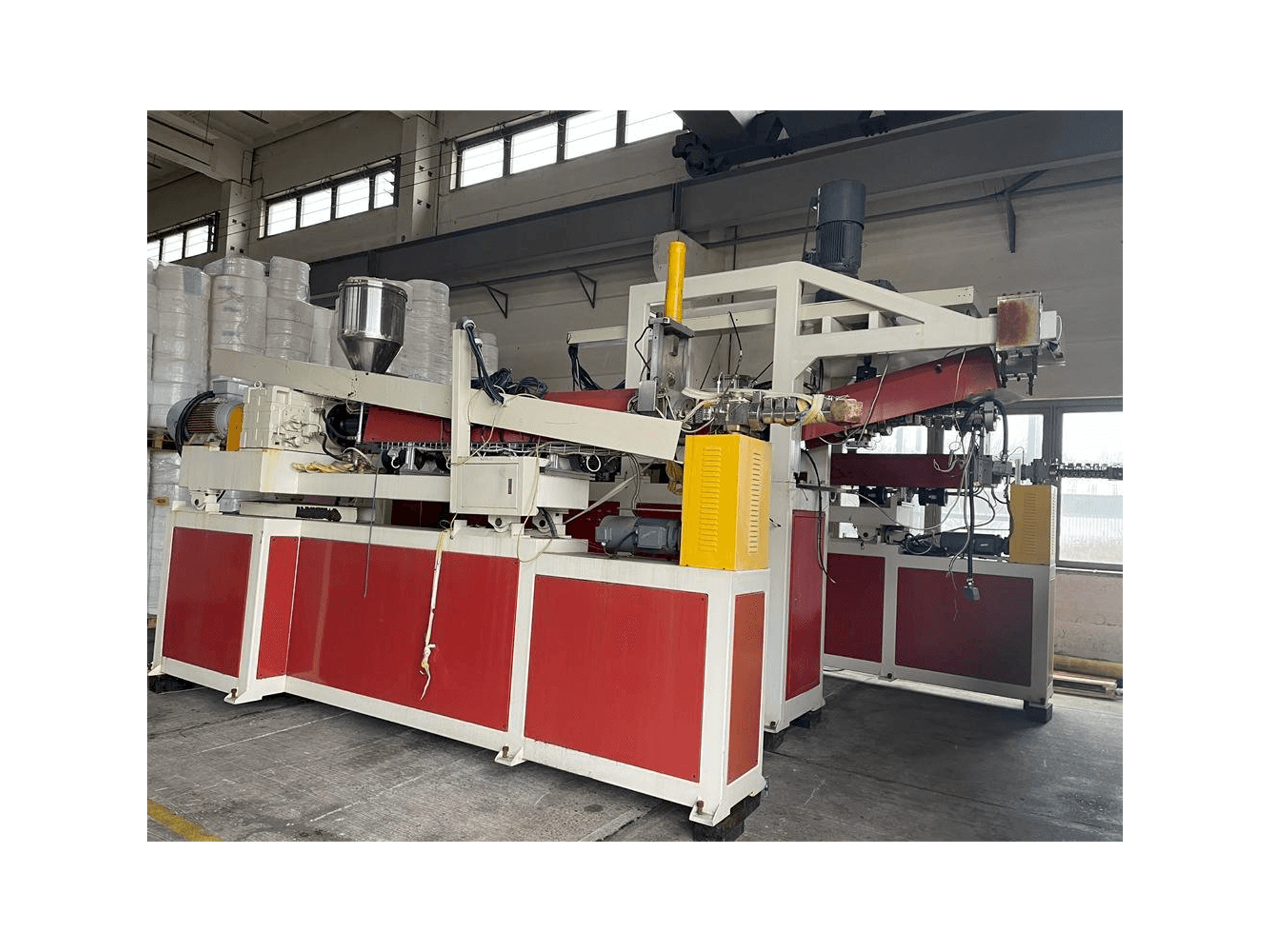

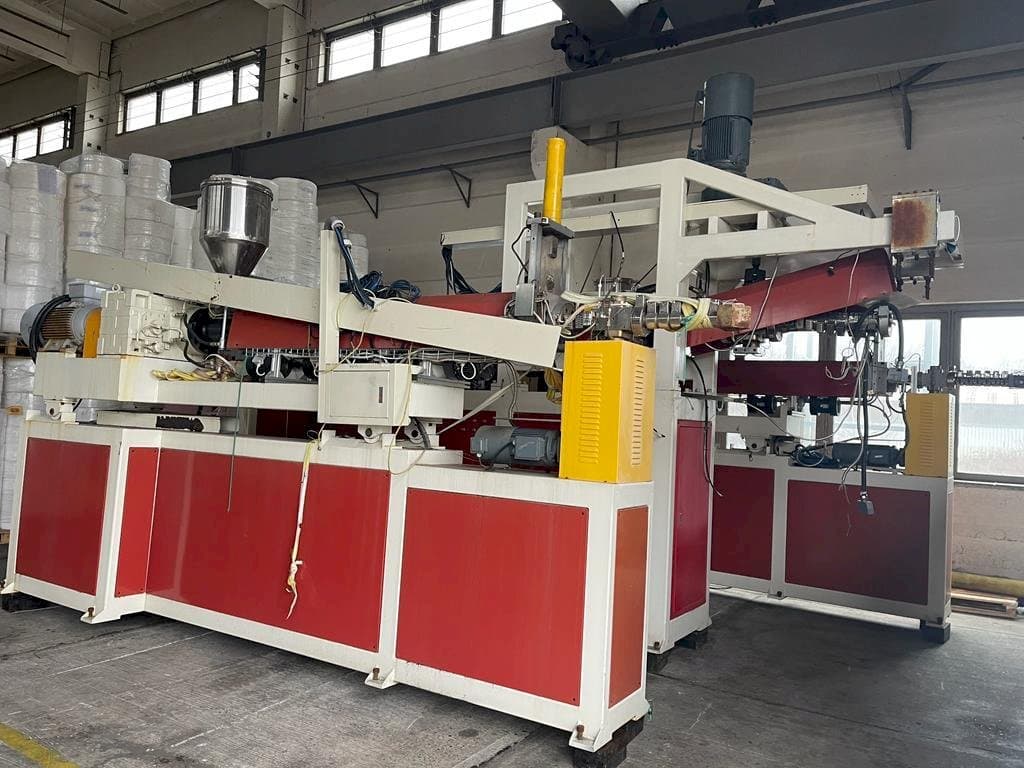

The line consists of: Single-screw extruder 75 mm x 2 pieces Single-screw extruder 120 mm x 1 piece Screen changer x 3 pieces Extrusion head for 5-layer film extrusion (C/B/A/B/C) Calender x 3 pieces Take-off winding station x 3 pieces
