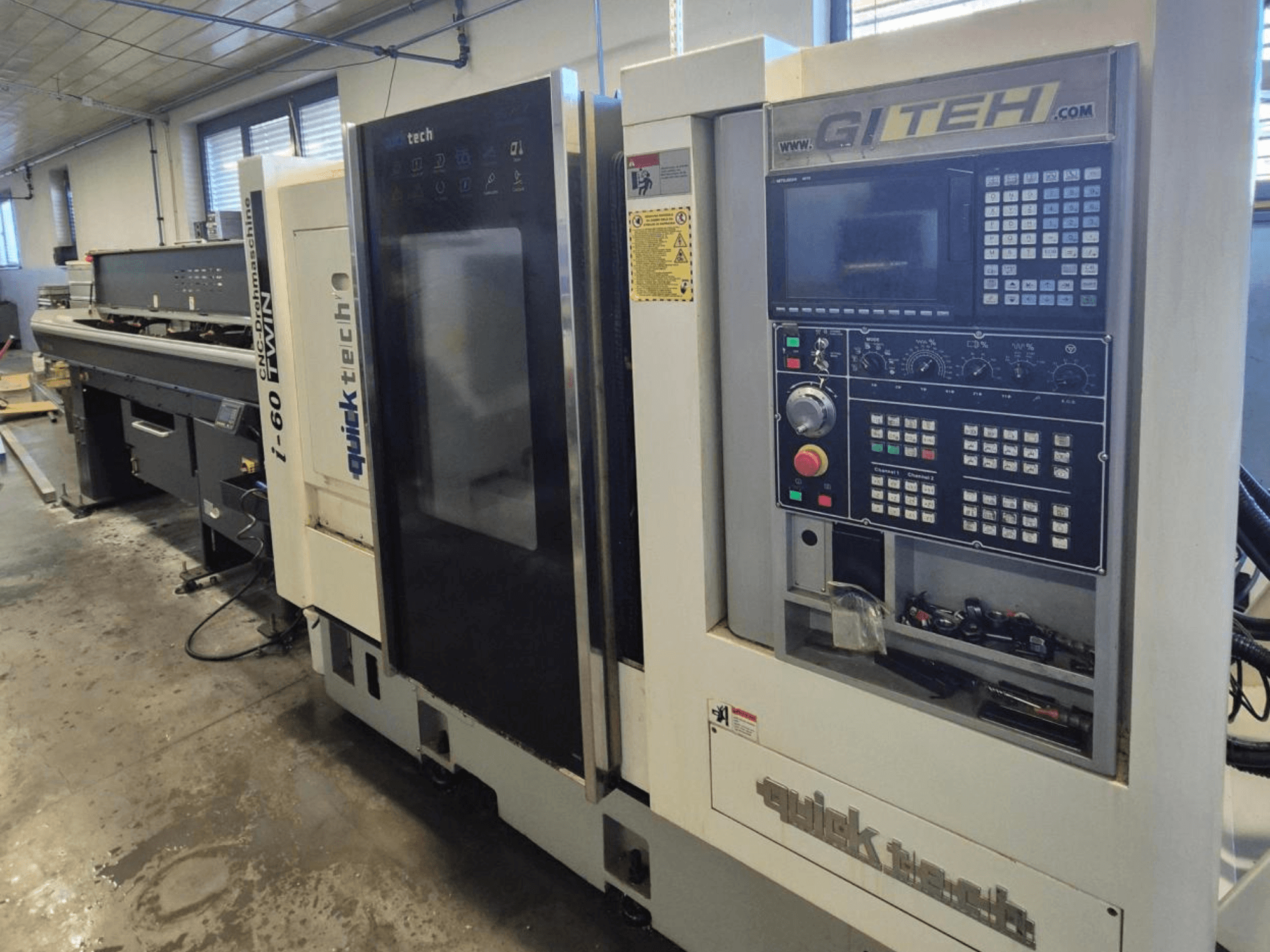

Quick-Tech - i60 twin SI-TUR-QUI-2016-00001

• Main spindle bore: 60 mm

• Sub spindle bore: 42 mm

• Max. turning length: 300 mm

• Speeds

  • Main spindle: 4000 rpm

  • Sub spindle: 4000 rpm

  • Driven tools: 4000 rpm

• Spindles

  • Main spindle indexing: 0.001°

  • Sub spindle indexing: 0.001°

  • Hydraulic spindle brake (main & sub)

  • Synchronization of spindle rotation and positioning

• Tool stations

  • Main spindle side: 6 external turning, 5 internal turning

  • Sub spindle side: 3 external turning, 4 internal turning

  • Driven tools: 12 stations

• Processing capabilities

  • 4-axis simultaneous machining

  • Full axis programming directly from the control

  • Air blow function (M-code)

  • Part ejection detection

• Workholding

  • Main spindle chuck: Ø185 mm

  • Sub spindle chuck: Ø173 mm

• Machine equipment

  • Machine leveling screws and plates

  • LED working light

  • 3-color signal tower

  • Automatic central lubrication system

  • Coolant tank and coolant level sensor

  • High-pressure coolant pump 30–40 bar

  • 380V/220V transformer

  • Basic tool kit

  • Operator manual, programming manual, electrical diagrams, PLC documentation

• Control system: Mitsubishi M70

  • 10.4” color display; MPG handwheel program check

  • Absolute/incremental programming; ISO programming

  • Automatic machine power-off function

  • Thread cutting cycle (G92); rigid tapping

  • Constant cutting speed (G96/G97)

  • Production time display & part counter

  • Jog movement for X, Z, Y, W axes; C1 and C2 contouring for turning/milling

  • Minimum input increment: 0.001 mm

  • 80 tool geometry & correction positions

  • Program loading via memory card or USB; network connectivity

  • Chamfer & radius programming; radius compensation

  • Absolute motors (no homing required); self-diagnosis functions

  • Spindle synchronization

  • Thread cutting with driven tools; thread cutting on sub spindle

  • Programming help functions; 2D program simulation

  • PLC editing capability

  • Gear cutting function included

  • Driven tool orientation

Additional equipment (not part of the base machine)

• Chip conveyor

• Bar feeder VITO 56 (3 m)

• Finished part conveyor
