- ➤ Used Prima Power eP-0520 - Press For Sale | gindumac.com

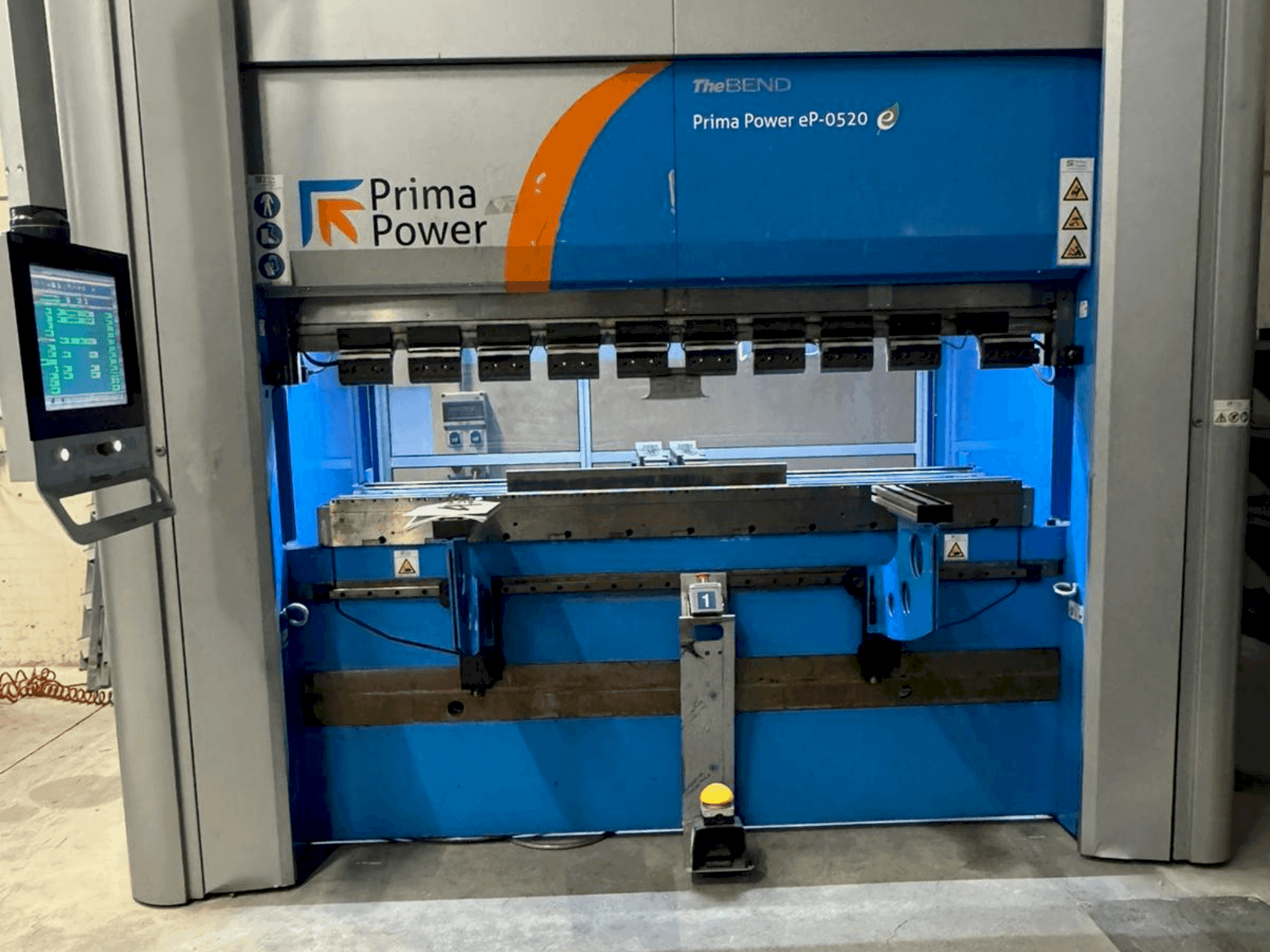

This 8-axis Prima Power eP-0520 press brake was manufactured in 2018. It boasts a maximum tonnage of 550 and a distance between side frames of 2,100 mm. The machine features an O-frame design, enhancing its robustness and reliability. Ideal for precise bending with a stroke of 310 mm and high speeds on the X-axis (350 mm/s) and Z-axis (2,000 mm/s). A great opportunity to buy this Prima Power eP-0520 press brake. Contact us for more information.
Übersicht
- Hersteller: Prima Power
- jahr: 2018
- MODELL: eP-0520
- anwendungstyp: Biegen
- Standort: Spanien
- maschinentyp: Abkantpresse
Zusätzliche Informationen
Machine Benefits
Technical Machine Benefits
- Max. Tonnage: 550
- Y-axis: stroke: 310 mm, max. Working speed: 10 mm/sec , approaching speed: 200 mm/sec, return speed: 200 mm/sec
- X-axis: speed: 350 mm/sec, stroke/max positioning dim: 560/1,000 mm, stroke x1 (delta x): ±100 mm
- Z-axis: speed: 2,000 mm/sec, working area: 200 + 1,770 mm
- R-axis: speed: 150 mm/sec, stroke: 200 mm
- Workpiece distance between side frames: 2,100 mm
- Throat depth: o-frame
Extra Information
Machine still under power
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
