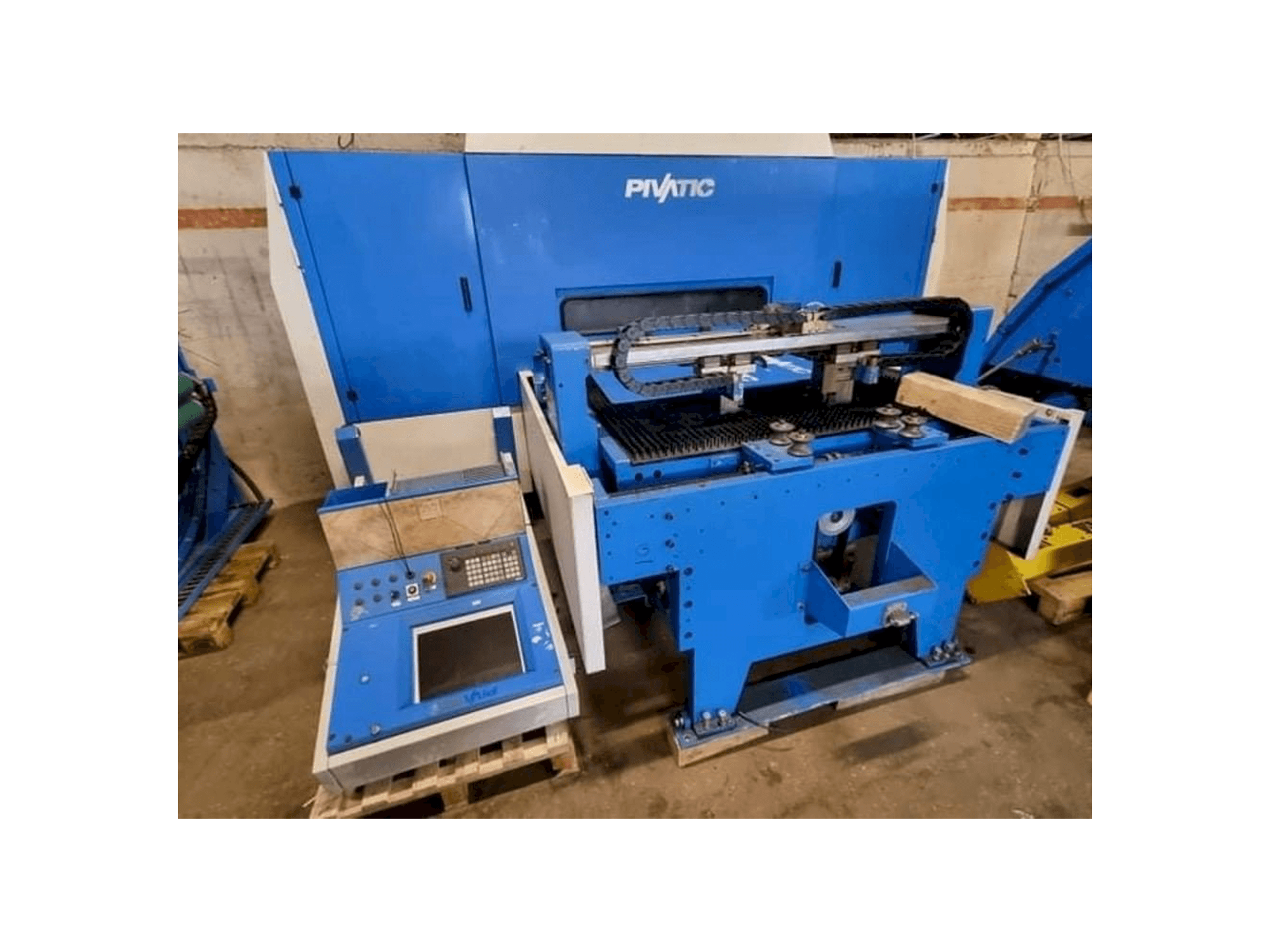

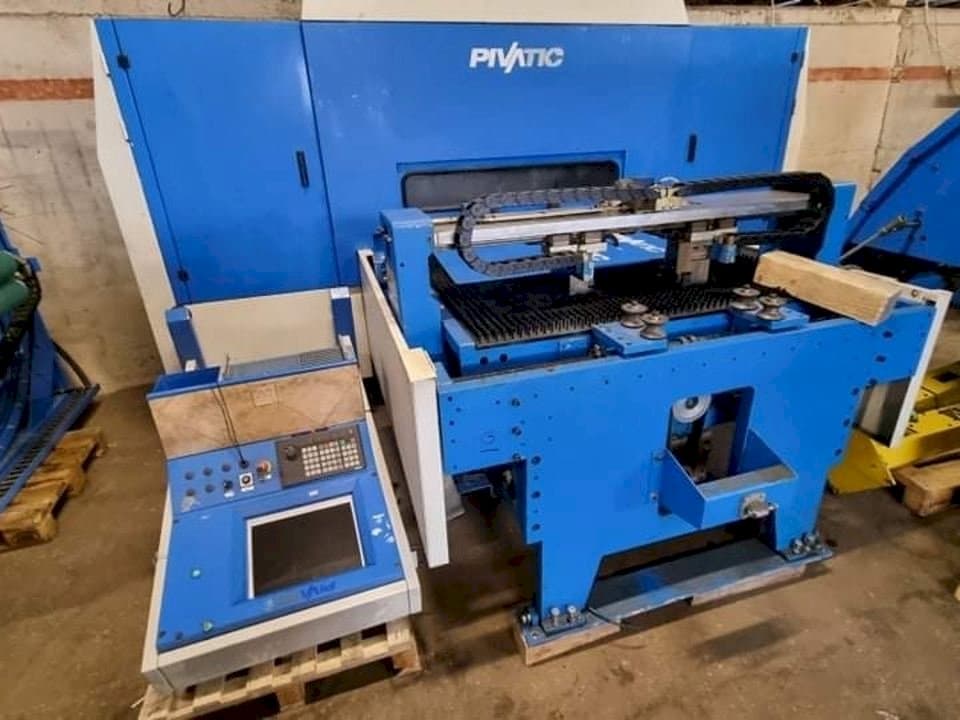

Pivatic - PCC125EE-PUN-PIV-2006-00001

Machine Benefits

Qualitative Machine Benefits

• Covered hydraulic power pack equipped either with an air cooler or with a water cooler connected to the cooling water circuit of the factory. -designed acc. To demands of the complete line. -mainly bosch-rexroth valves and a low noise level pump are used.
• Pneumatic system -hoses between the connection point, valves and cylinders are delivered. Customer to supply and connect the service unit and connection. "
• Electrical cabinet is placed next to the power pack with cooler
• Cables between the line components are in covered aluminium channels. Customer to supply and connect the mains.
• Electrical components are installed on assembling plates leaving space for modifications.
• The electrical components are mainly from siemens, omron and telemecanique
• Siemens sinumerik 840 d numerical control and integrated plc. ,step 7 programming language
• The sinumerik controller is installed in a separate control cabin. All texts available for the operator are in english
• -complete pipe lines and hoses between the line components and the power pack covered with aluminium covers.
• User manuals, instructions and drawings ,multimedia user manual, maintenance instructions, electrical, pneumatic and hydraulic drawings and bills of material -delivered in english on a cd disc

Technical Machine Benefits

• Tank volume: 400 litres
• The motor power of the cooler 1,5 kw, the flow of the oil pump of the cooler 100 l/min.

Machine History

Material thickness

2 mm
